Multiplex Communication System - BEAN: Notes

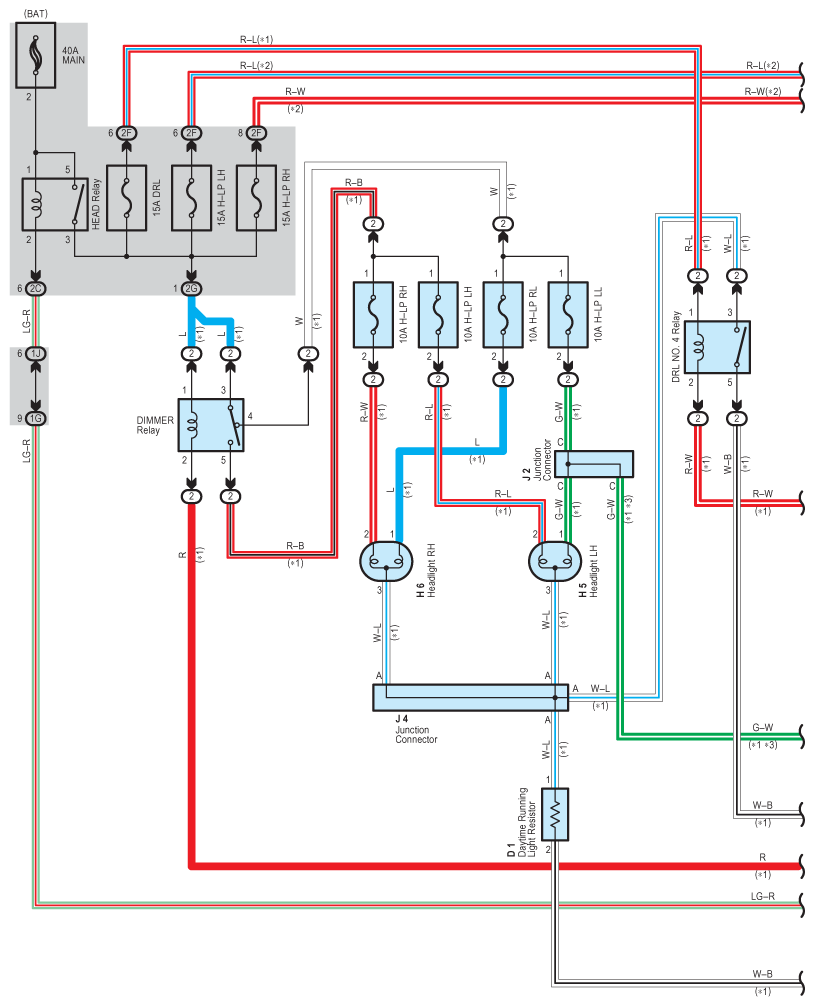

Fig 1: Multiplex Communication System (BEAN) Wiring Diagram (1 Of 20)

G08789736

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

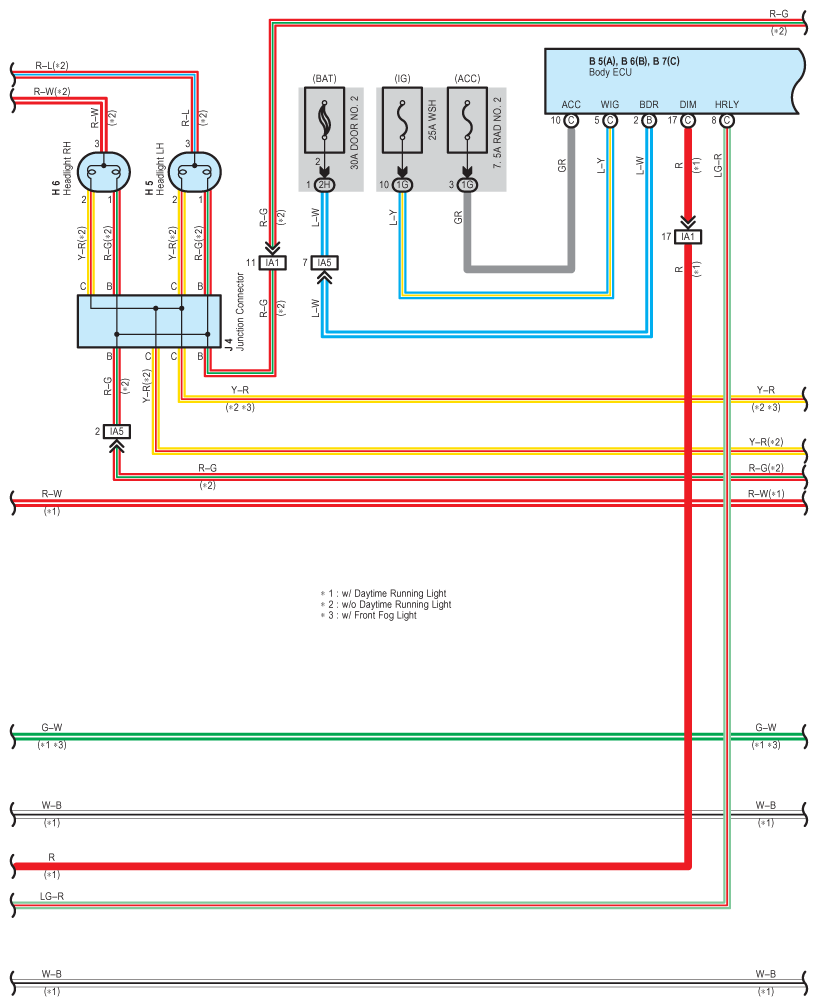

Fig 2: Multiplex Communication System (BEAN) Wiring Diagram (2 Of 20)

G08789737

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

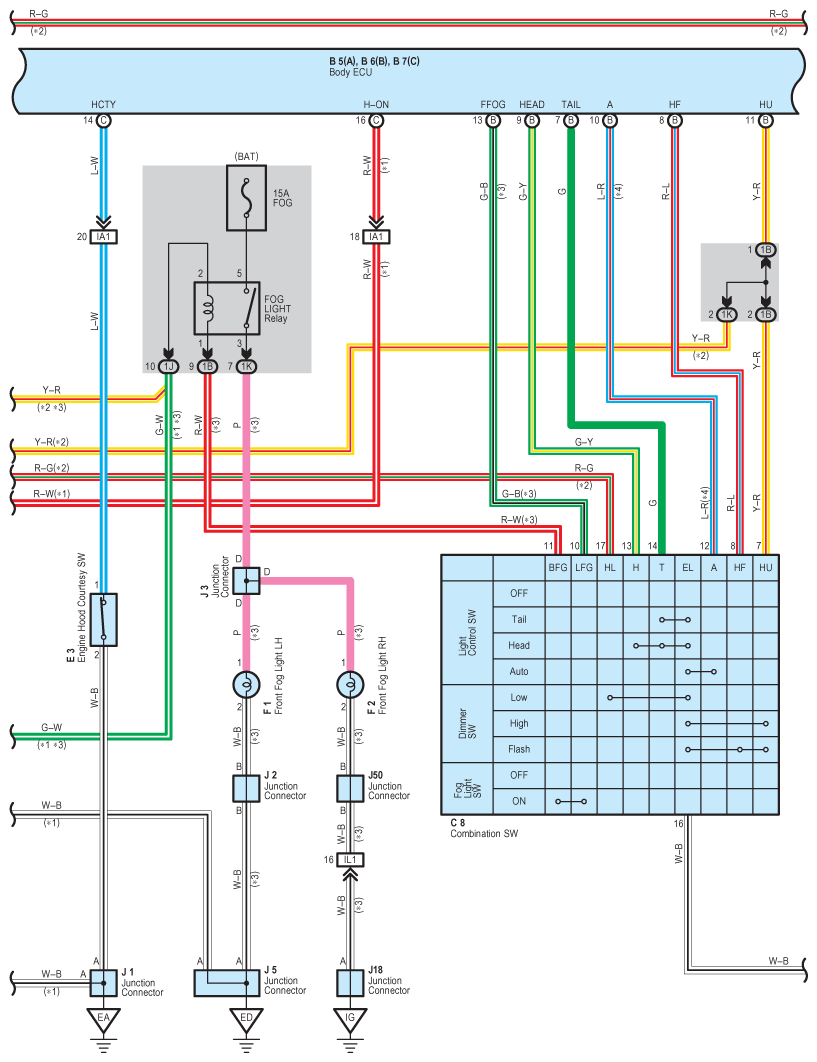

Fig 3: Multiplex Communication System (BEAN) Wiring Diagram (3 Of 20)

G08789738

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

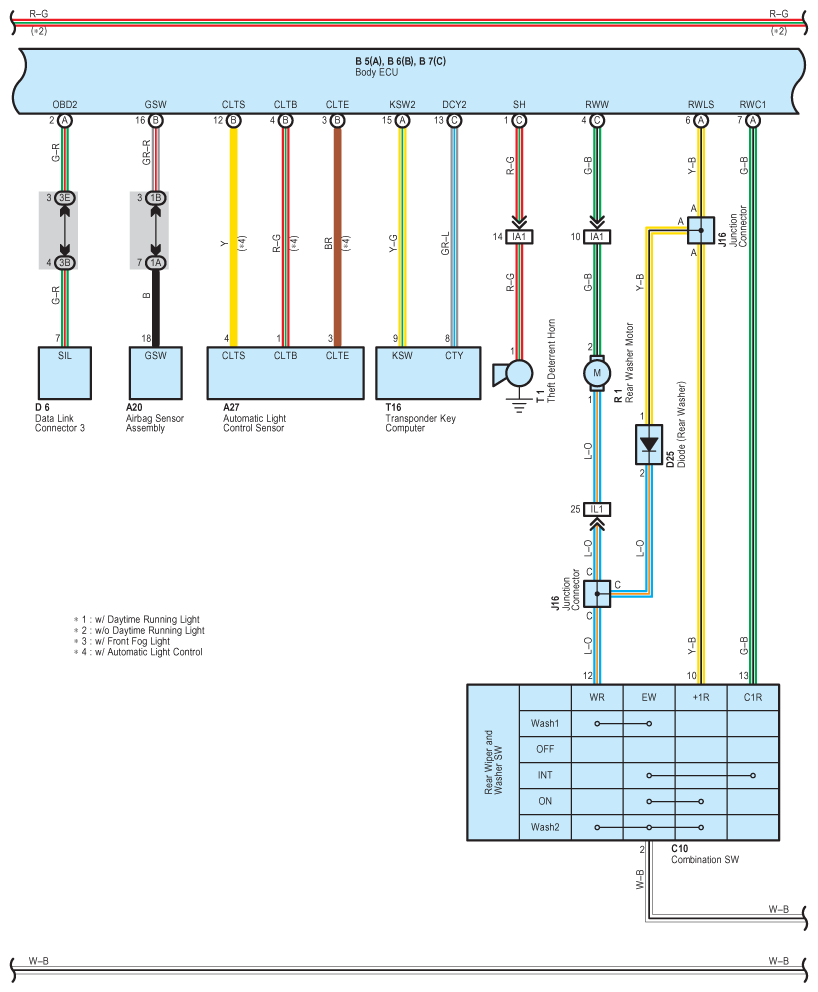

Fig 4: Multiplex Communication System (BEAN) Wiring Diagram (4 Of 20)

G08789739

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

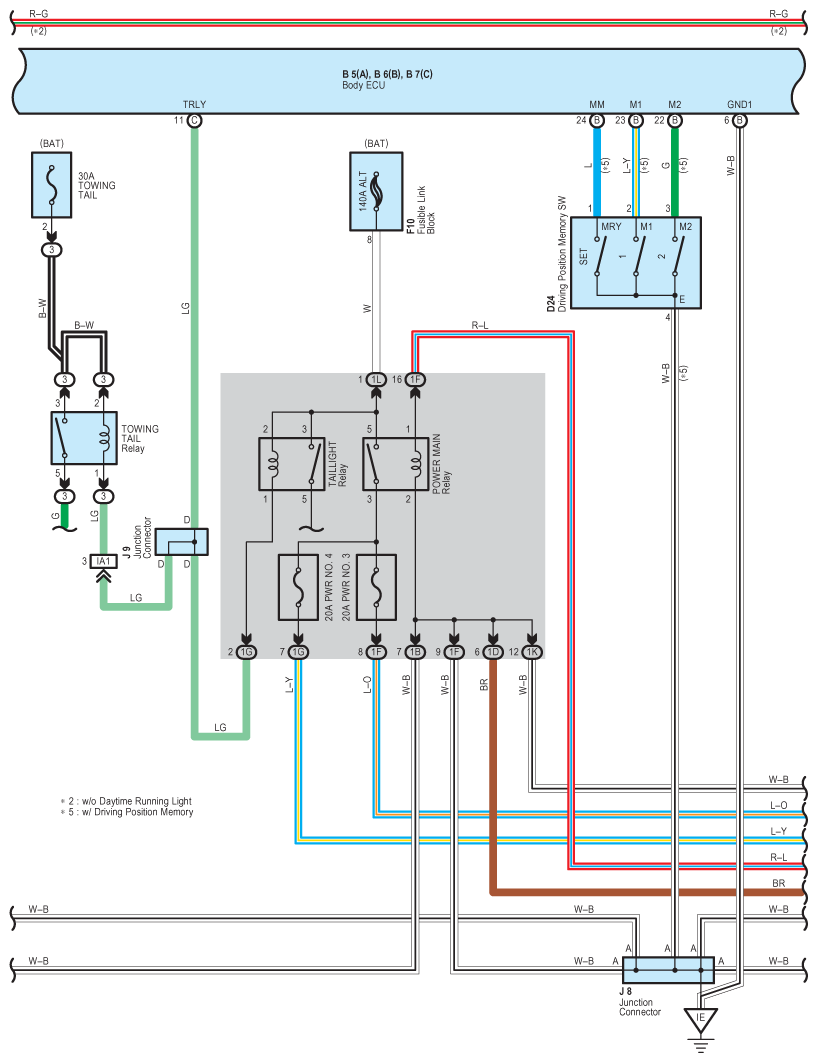

Fig 5: Multiplex Communication System (BEAN) Wiring Diagram (5 Of 20)

G08789740

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

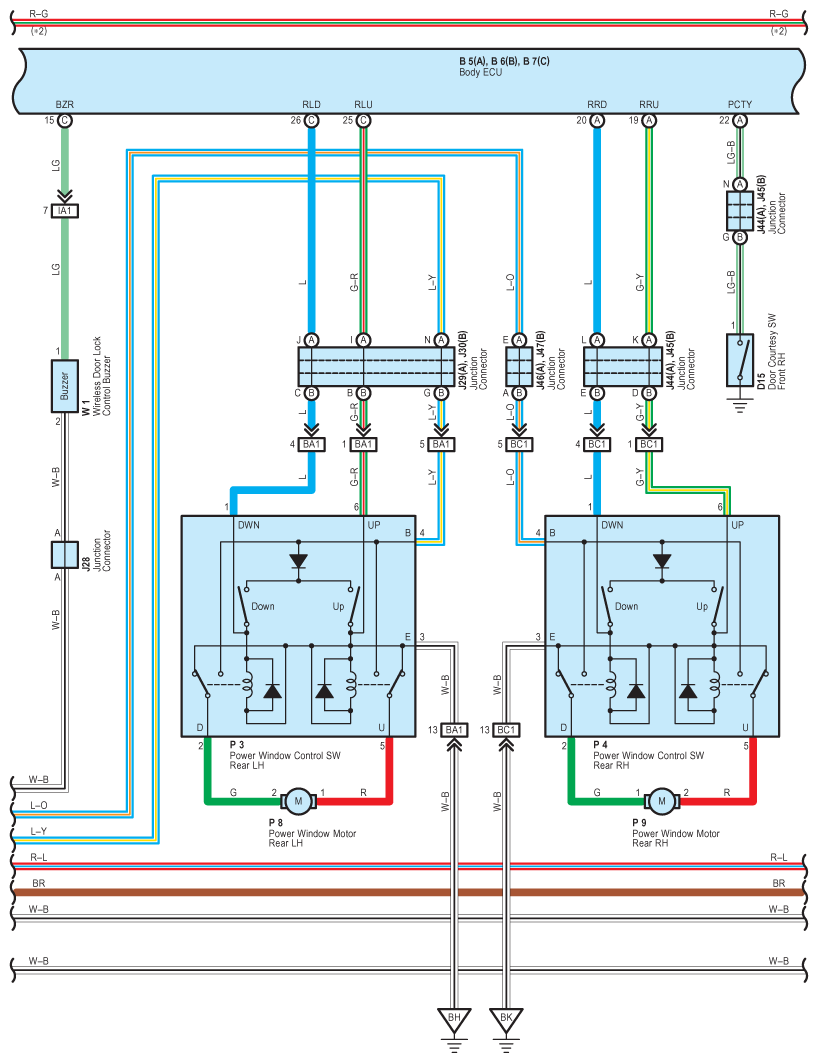

Fig 6: Multiplex Communication System (BEAN) Wiring Diagram (6 Of 20)

G08789741

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

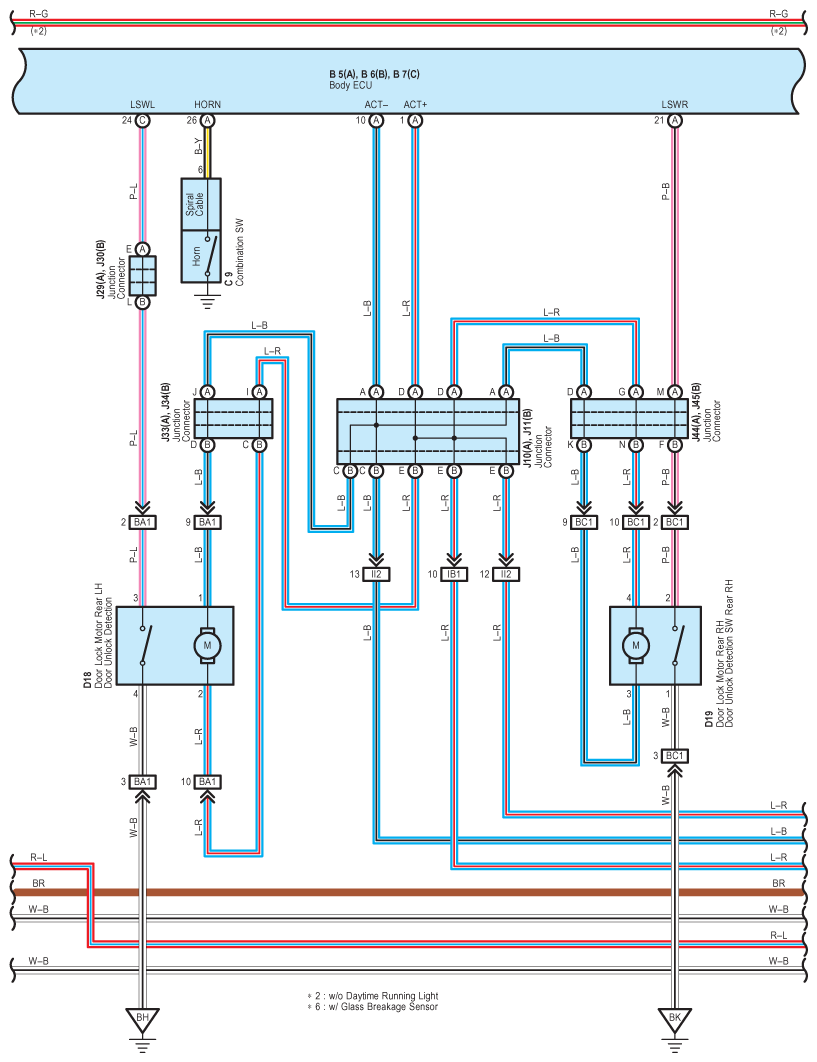

Fig 7: Multiplex Communication System (BEAN) Wiring Diagram (7 Of 20)

G08789742

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

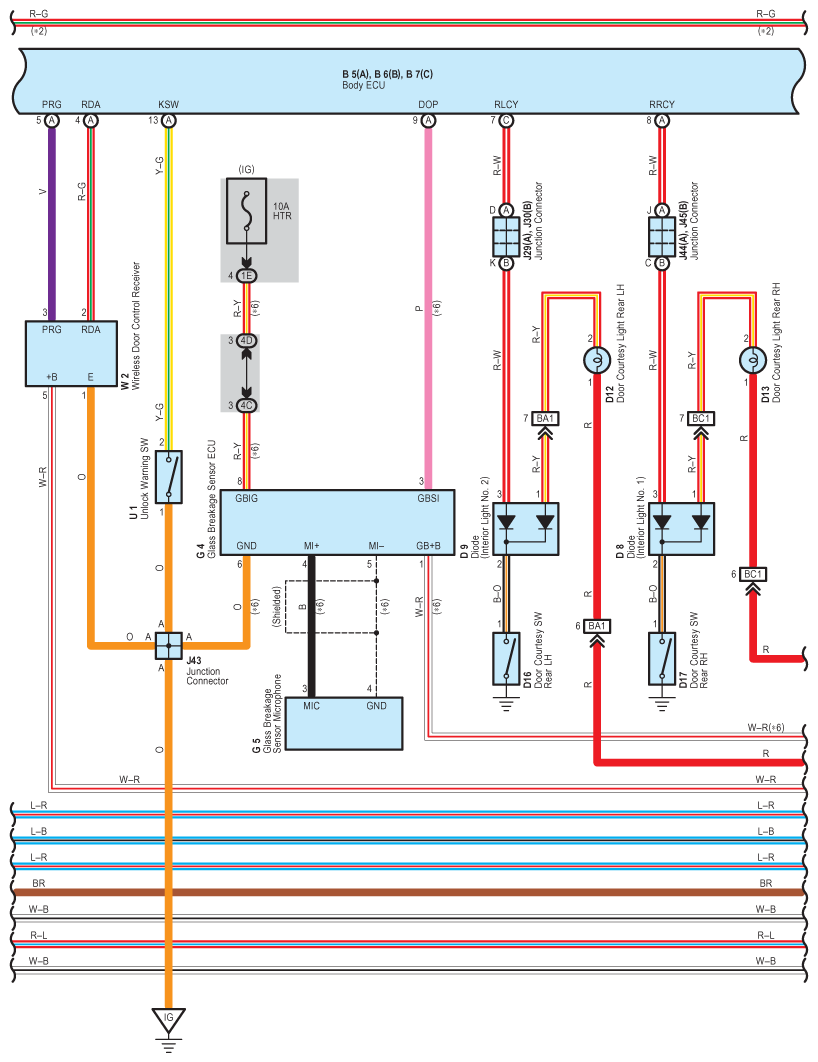

Fig 8: Multiplex Communication System (BEAN) Wiring Diagram (8 Of 20)

G08789743

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

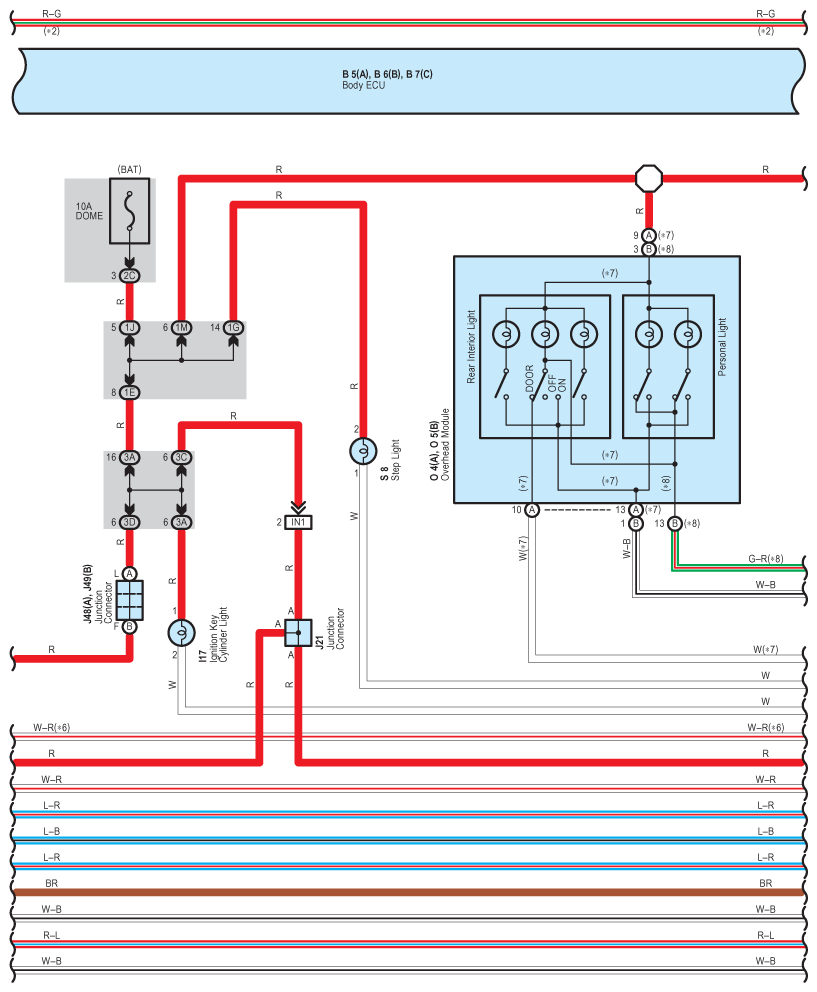

Fig 9: Multiplex Communication System (BEAN) Wiring Diagram (9 Of 20)

G08789744

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

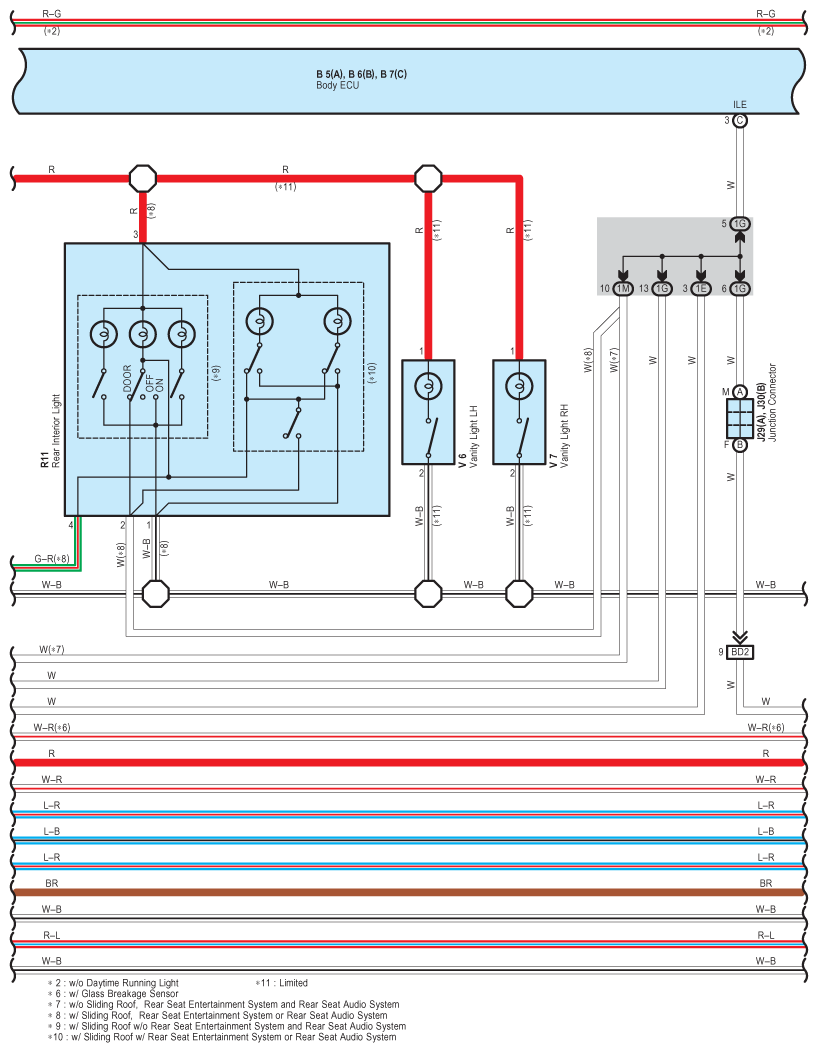

Fig 10: Multiplex Communication System (BEAN) Wiring Diagram (10 Of 20)

G08789745

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

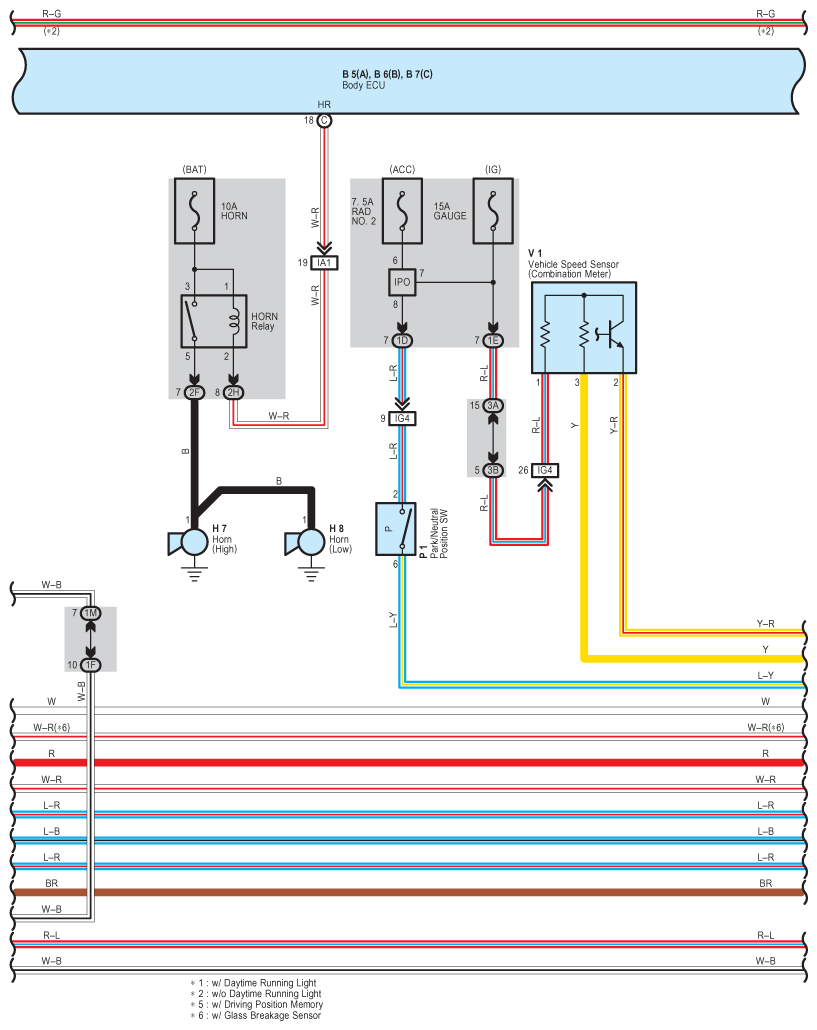

Fig 11: Multiplex Communication System (BEAN) Wiring Diagram (11 Of 20)

G08789746

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

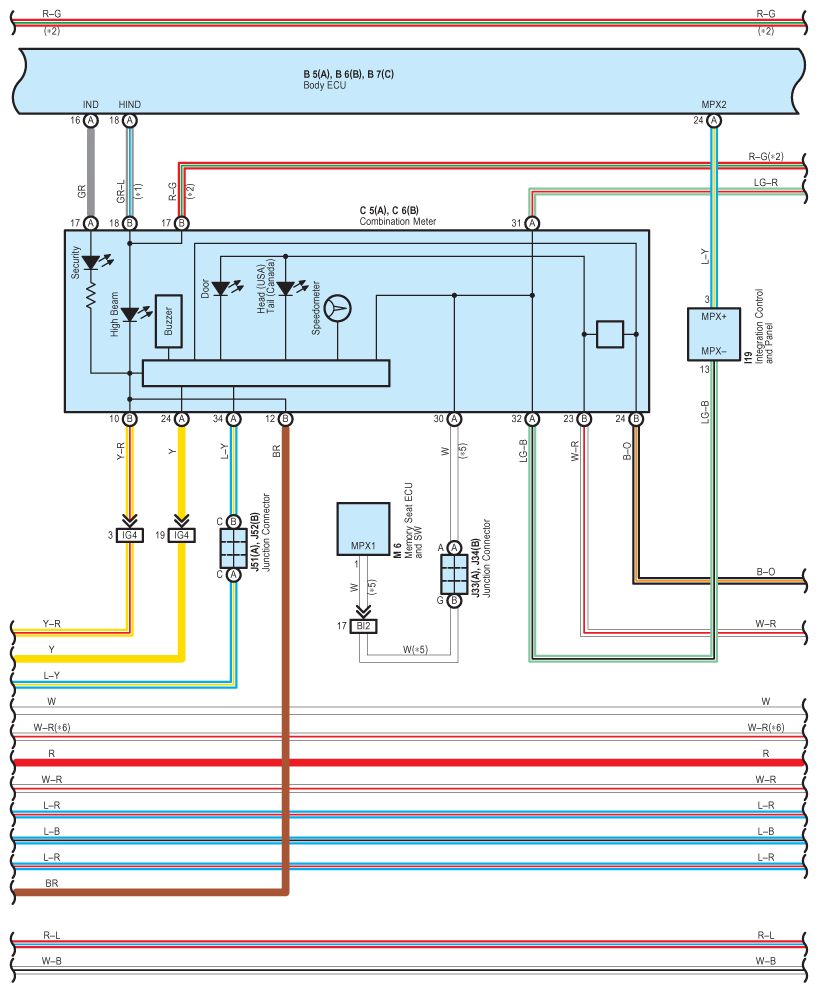

Fig 12: Multiplex Communication System (BEAN) Wiring Diagram (12 Of 20)

G08789747

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

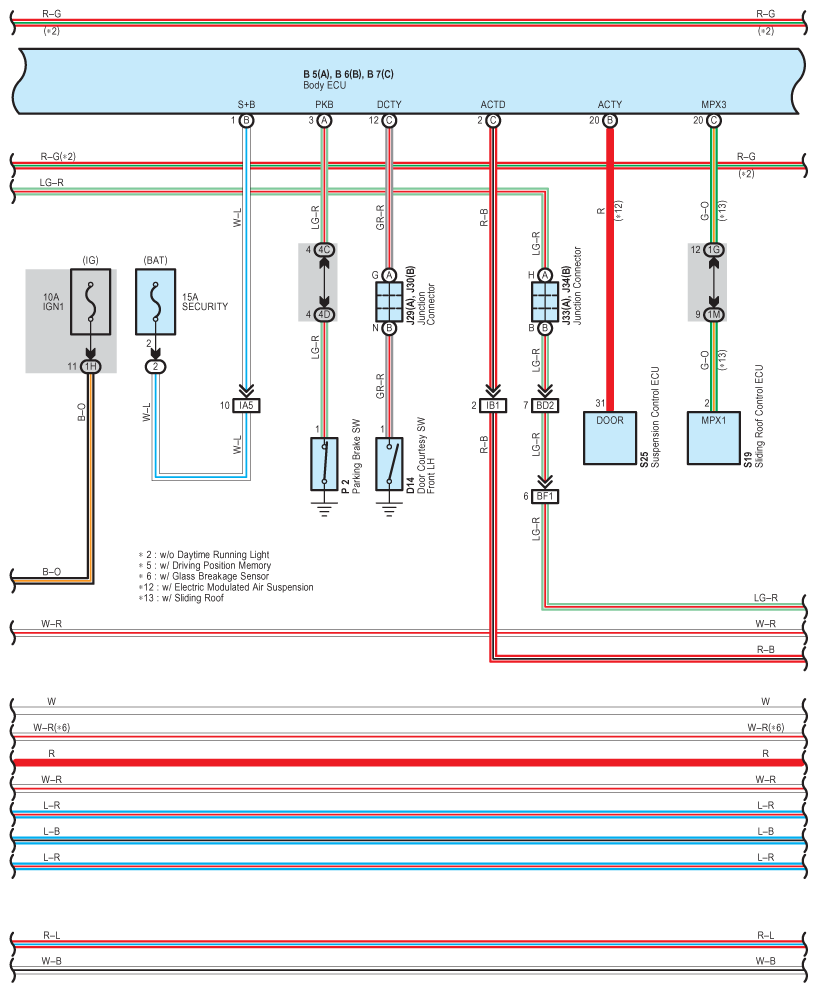

Fig 13: Multiplex Communication System (BEAN) Wiring Diagram (13 Of 20)

G08789748

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

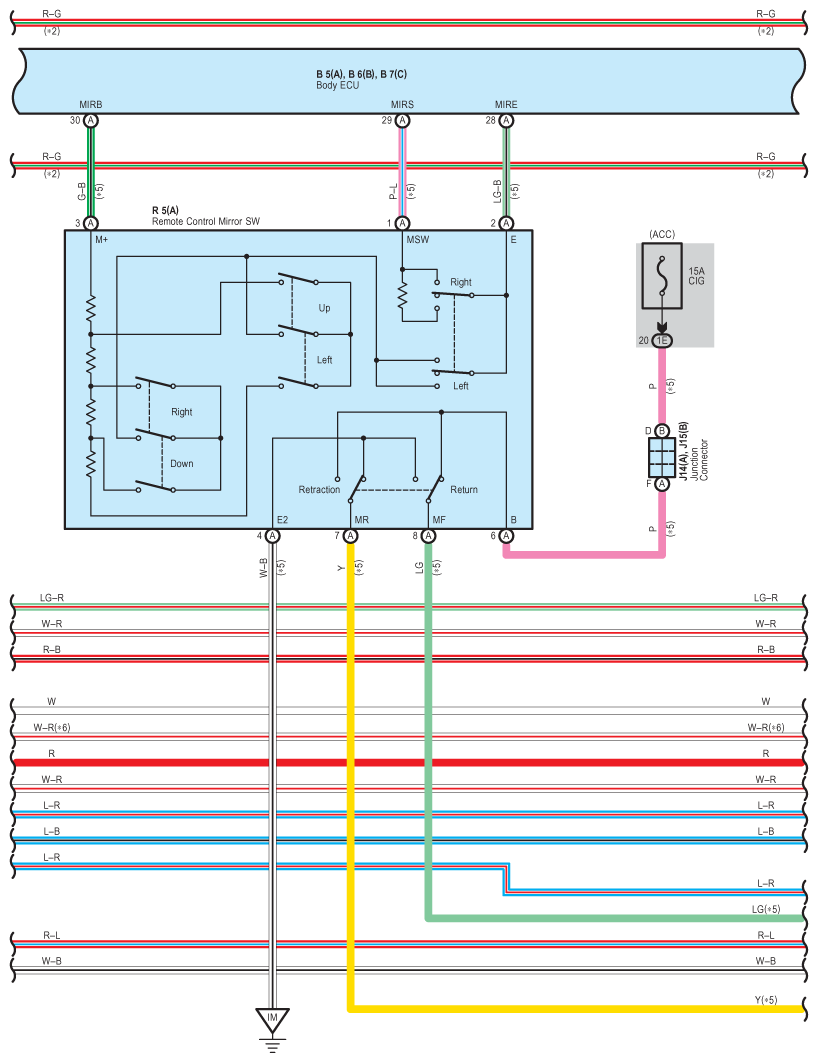

Fig 14: Multiplex Communication System (BEAN) Wiring Diagram (14 Of 20)

G08789749

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

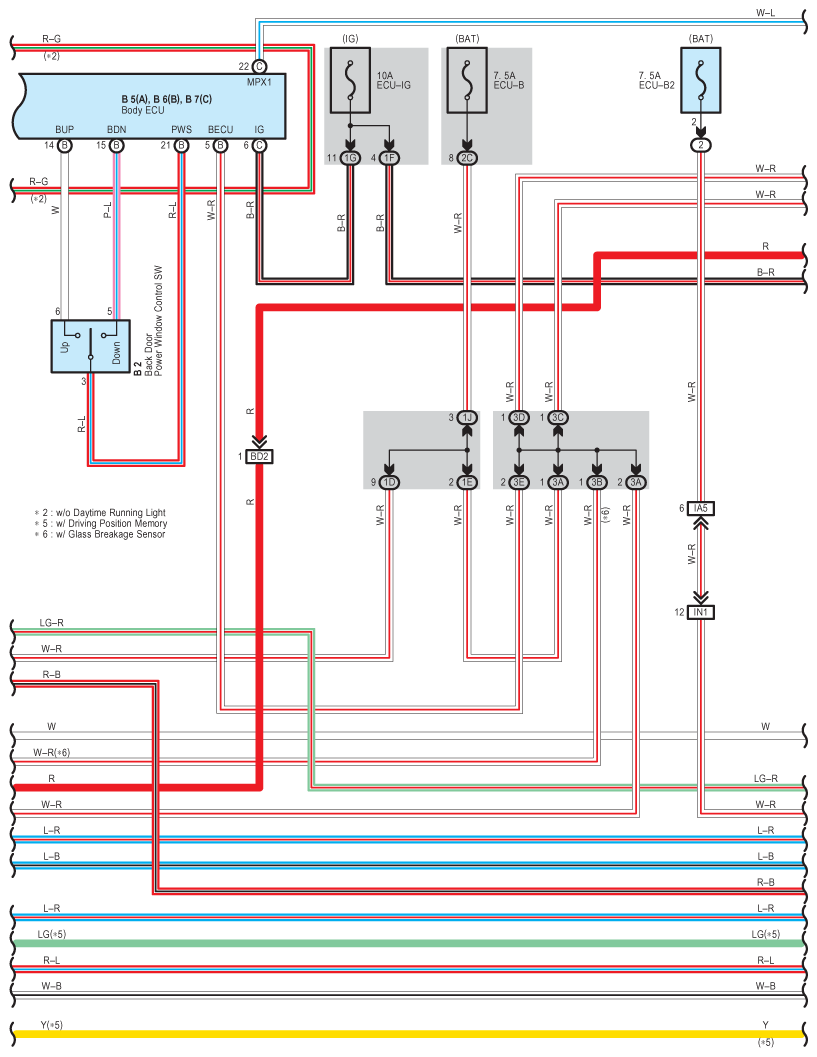

Fig 15: Multiplex Communication System (BEAN) Wiring Diagram (15 Of 20)

G08789750

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

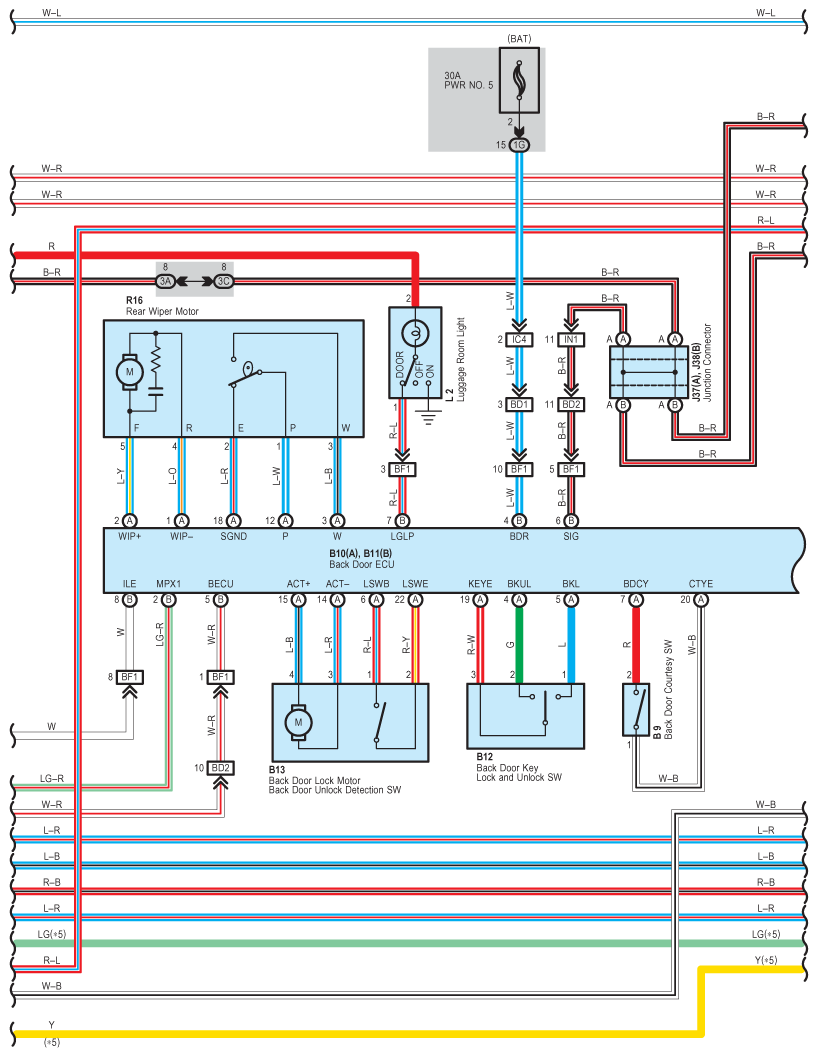

Fig 16: Multiplex Communication System (BEAN) Wiring Diagram (16 Of 20)

G08789751

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

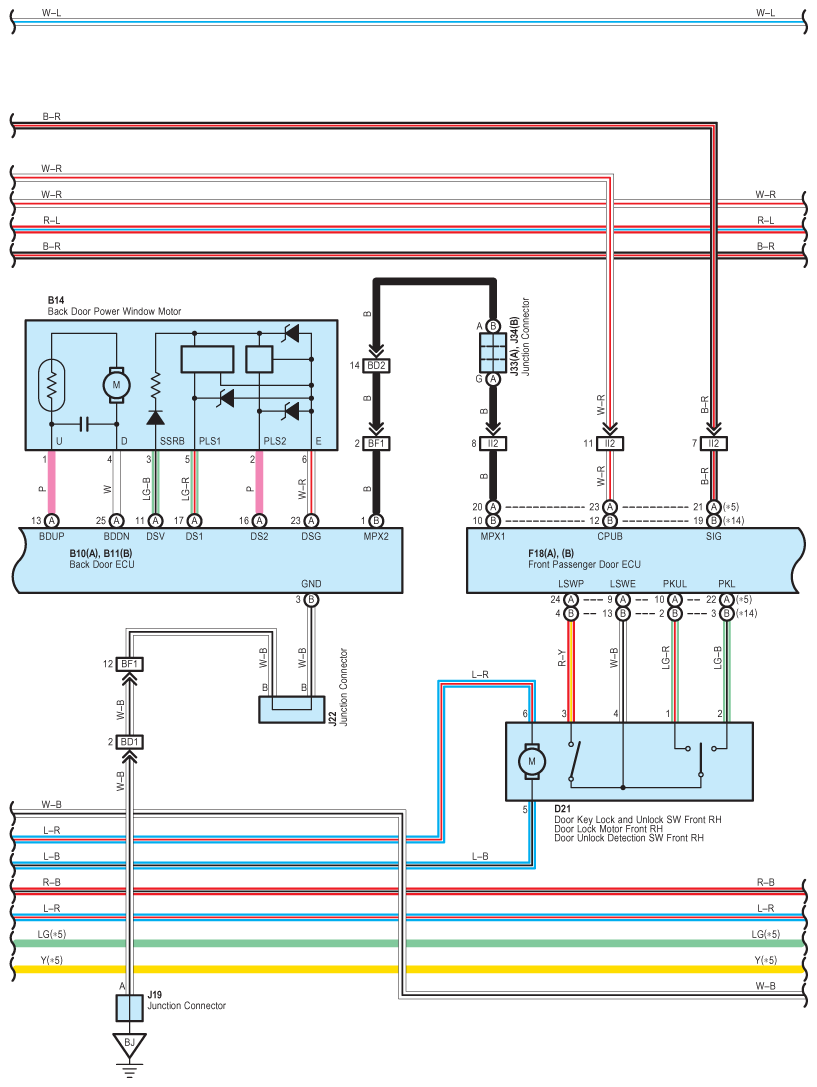

Fig 17: Multiplex Communication System (BEAN) Wiring Diagram (17 Of 20)

G08789752

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

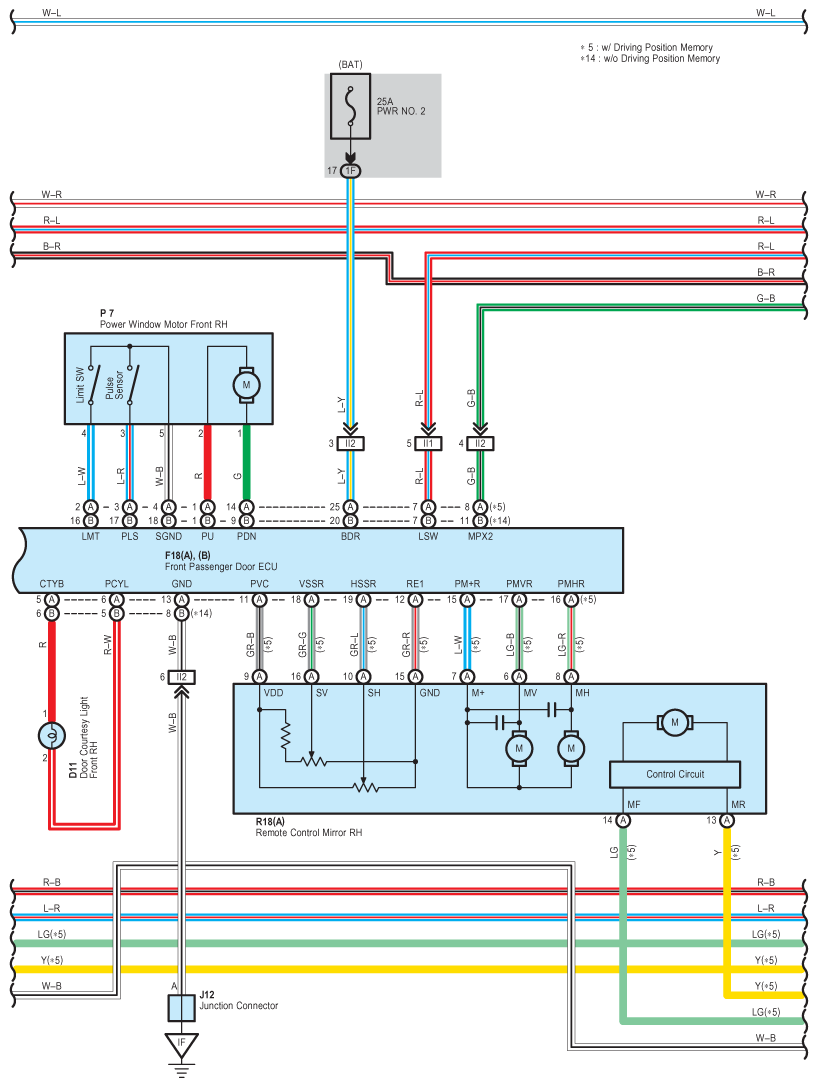

Fig 18: Multiplex Communication System (BEAN) Wiring Diagram (18 Of 20)

G08789753

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

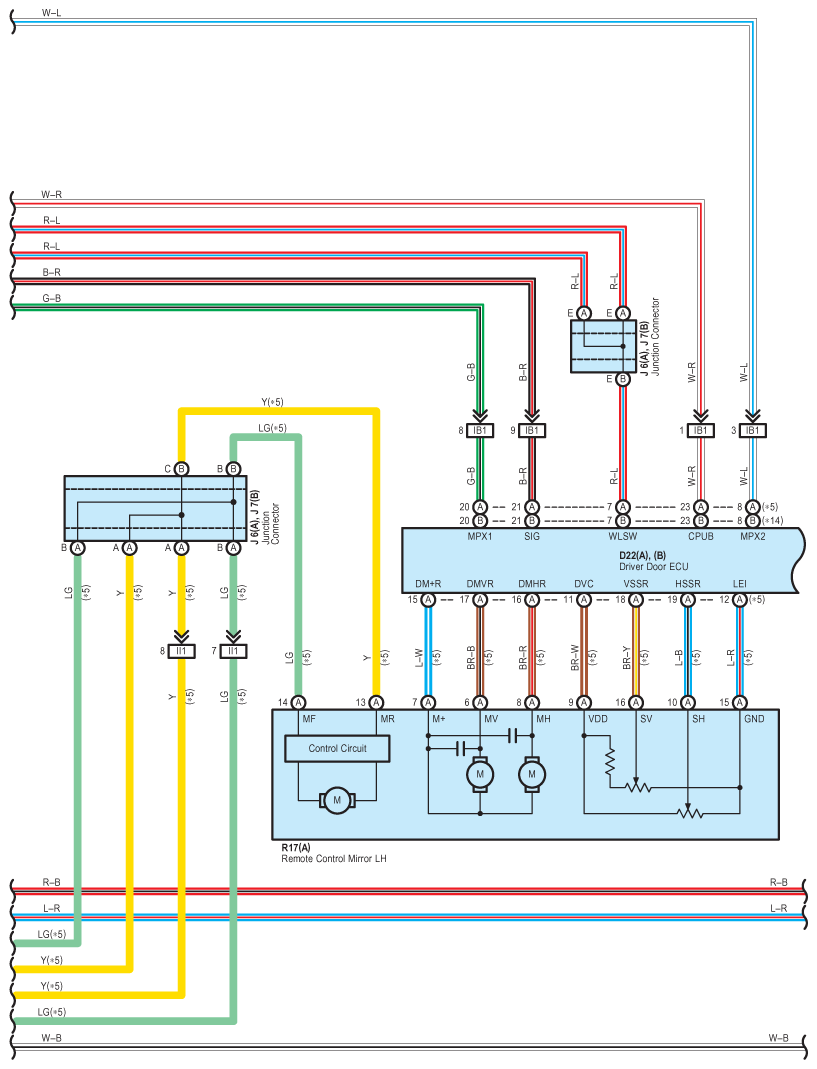

Fig 19: Multiplex Communication System (BEAN) Wiring Diagram (19 Of 20)

G08789754

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

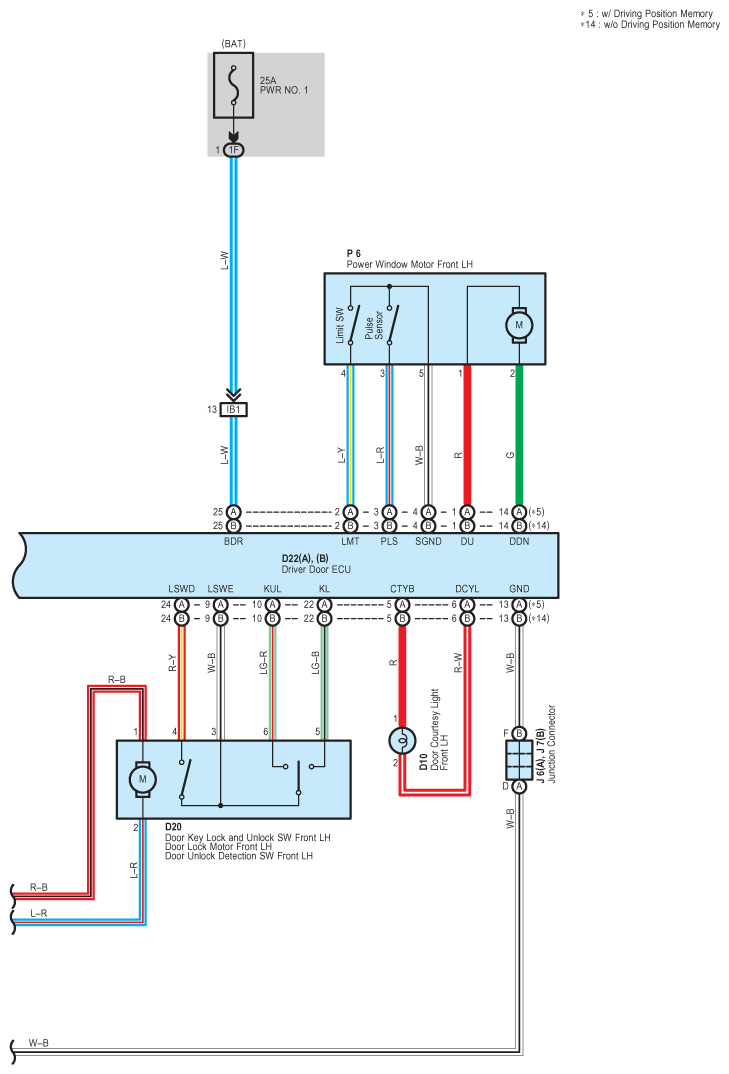

Fig 20: Multiplex Communication System (BEAN) Wiring Diagram (20 Of 20)

G08789755

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
