Multi Mode 4WD: Notes

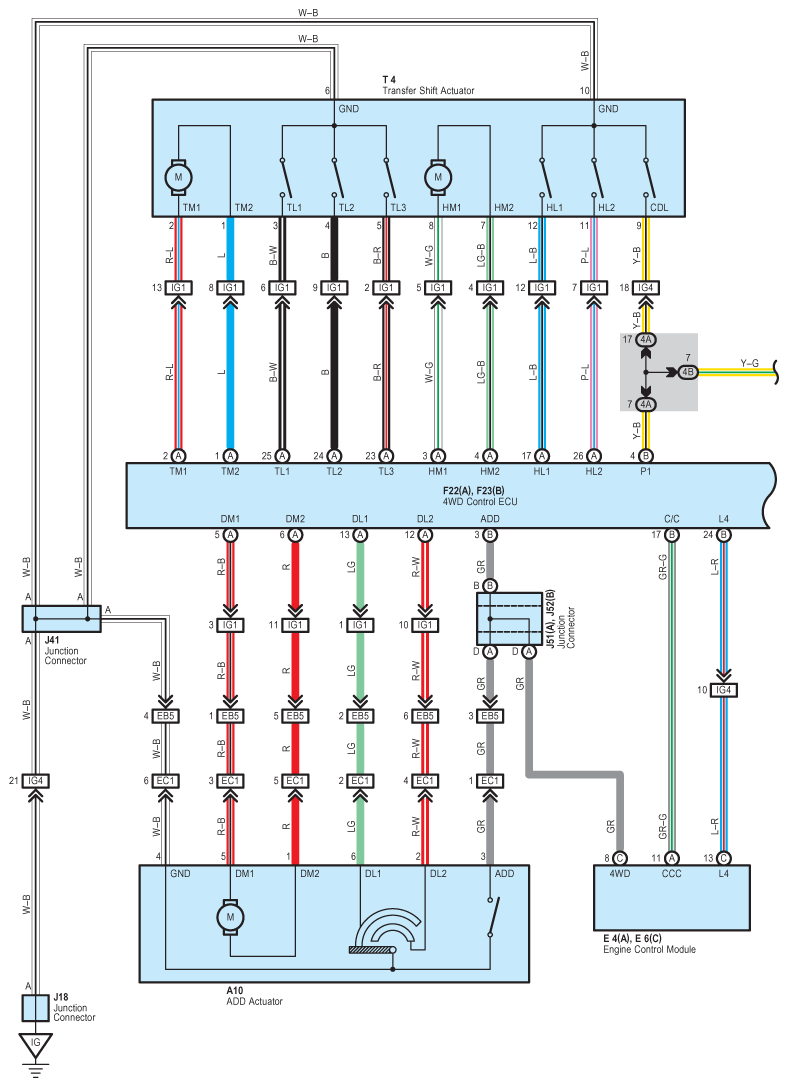

Fig 1: Multi Mode 4WD System Wiring Diagram (1 Of 3)
G08789798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

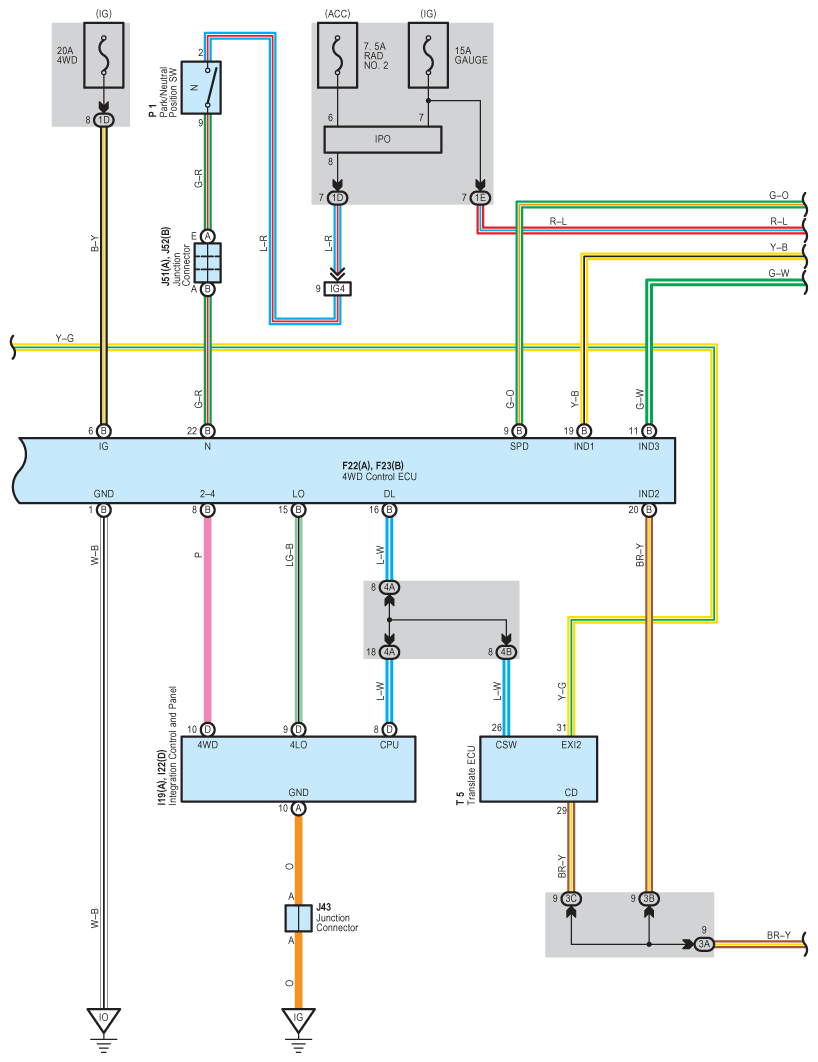

Fig 2: Multi Mode 4WD System Wiring Diagram (2 Of 3)
G08789799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

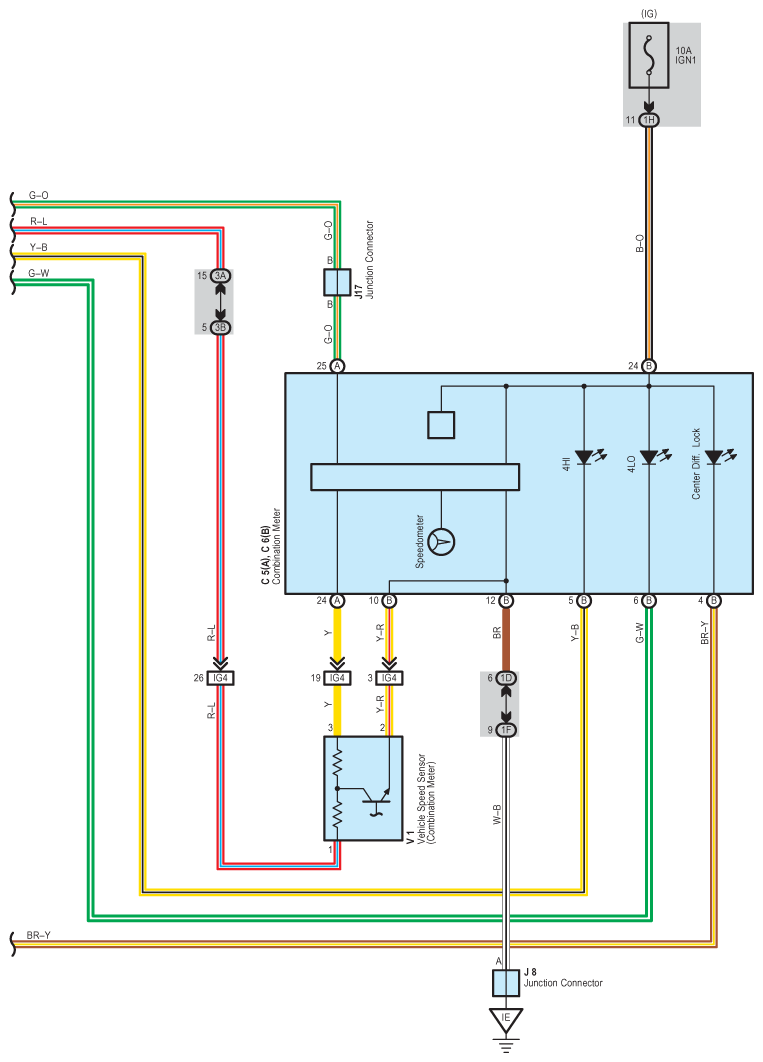

Fig 3: Multi Mode 4WD System Wiring Diagram (3 Of 3)
G08789800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
