Cruise Control: Notes

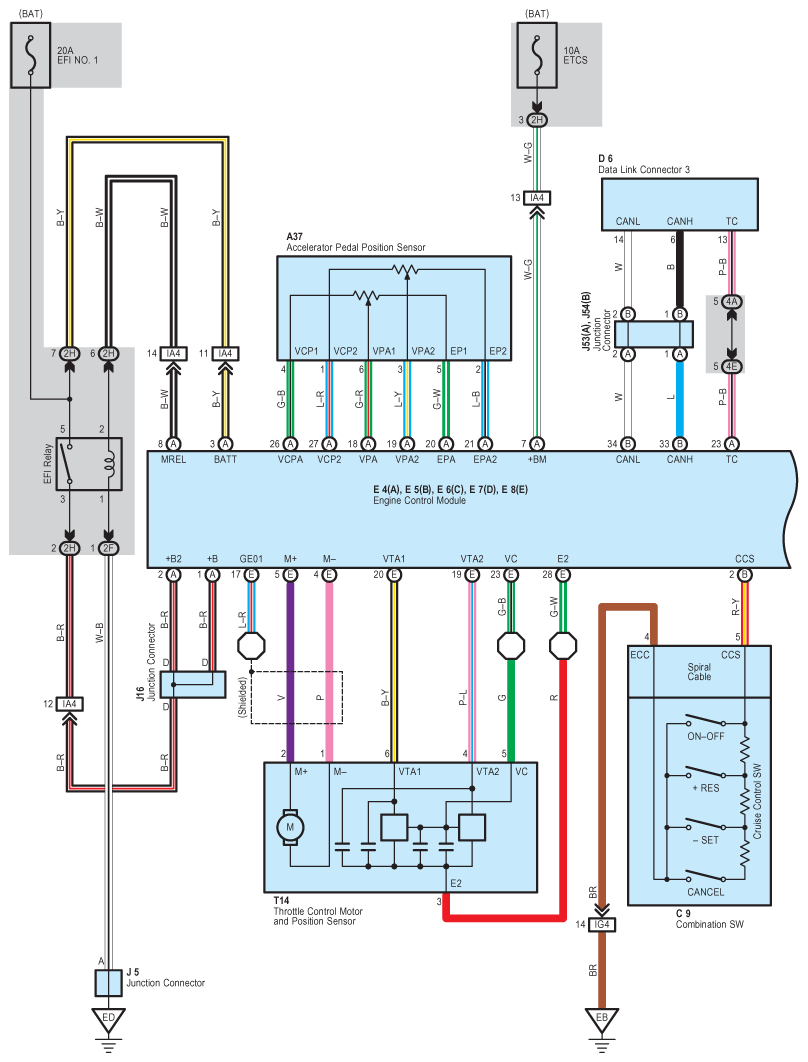

Fig 1: Cruise Control System Wiring Diagram (1 Of 2)
G08789789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

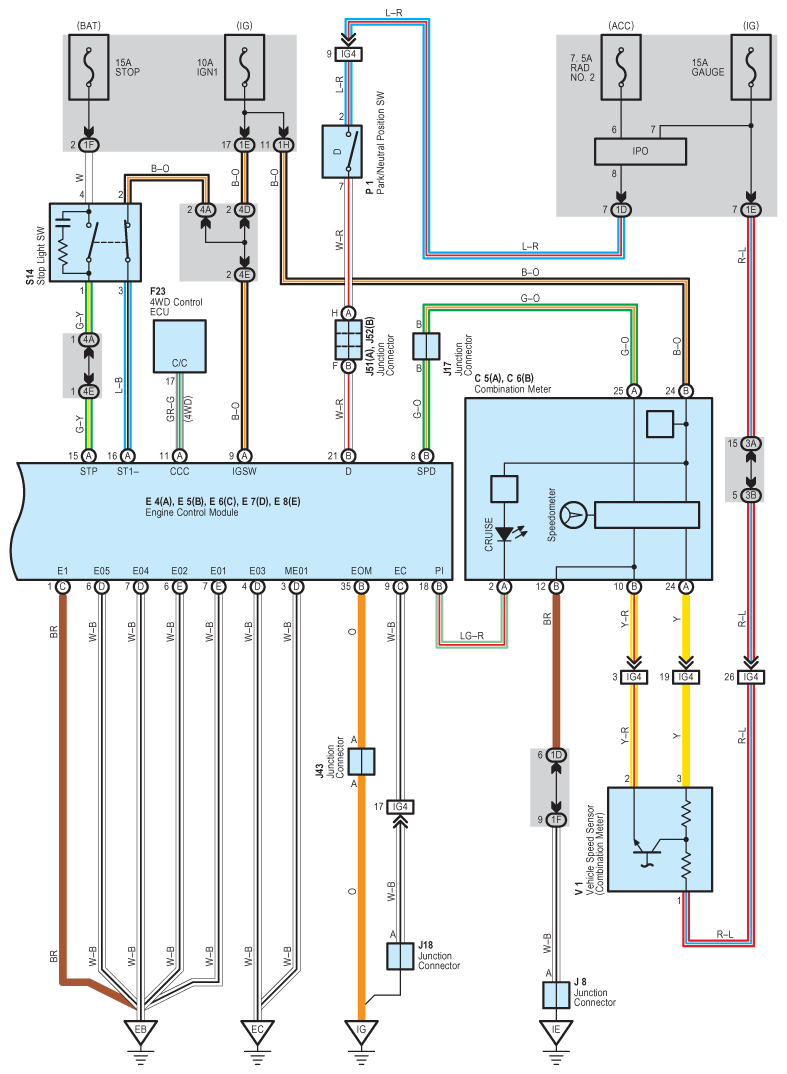

Fig 2: Cruise Control System Wiring Diagram (2 Of 2)
G08789790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
