Ignition Coil: Components

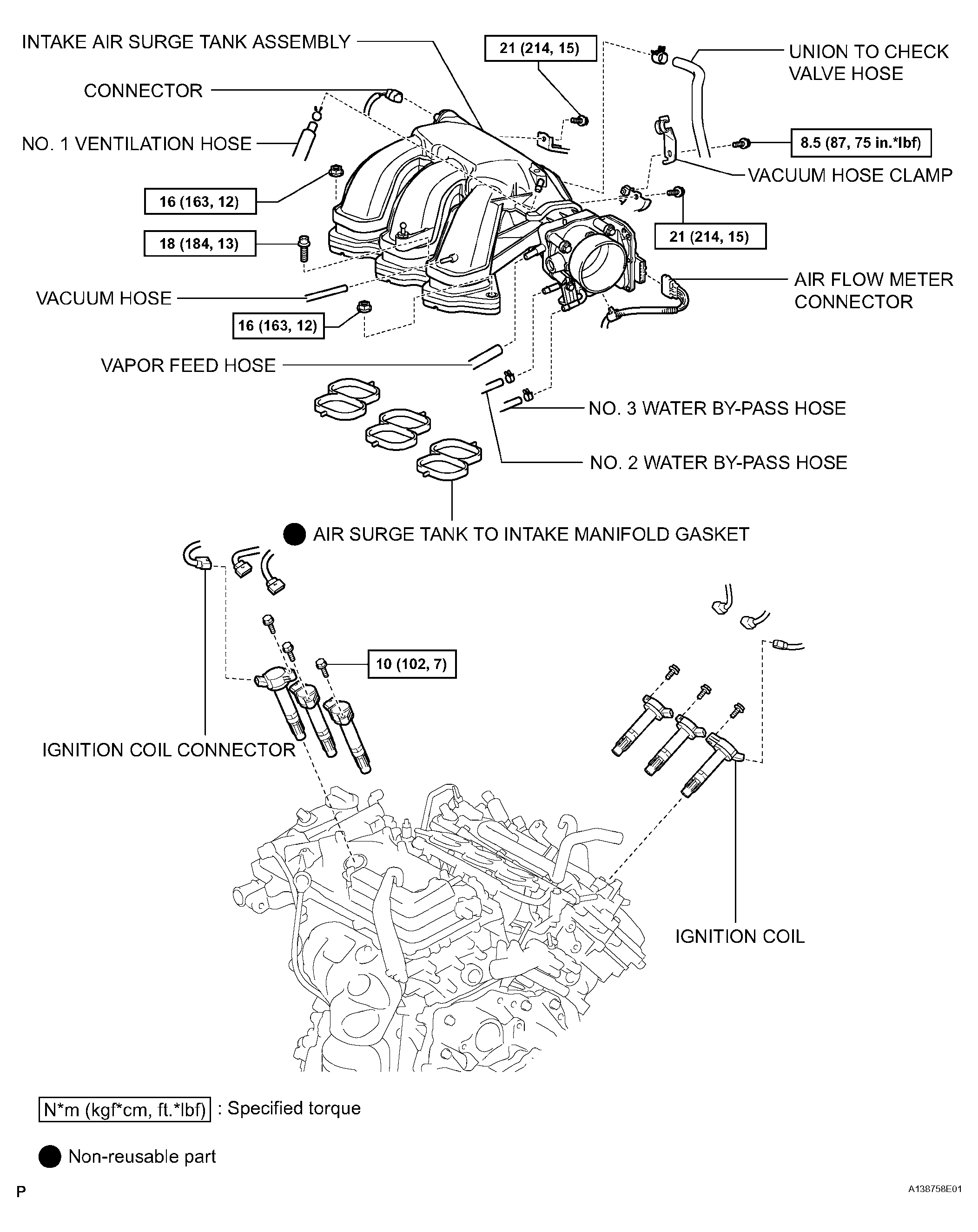

Fig 1: Ignition Coil Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
