Fuel Tank: Components

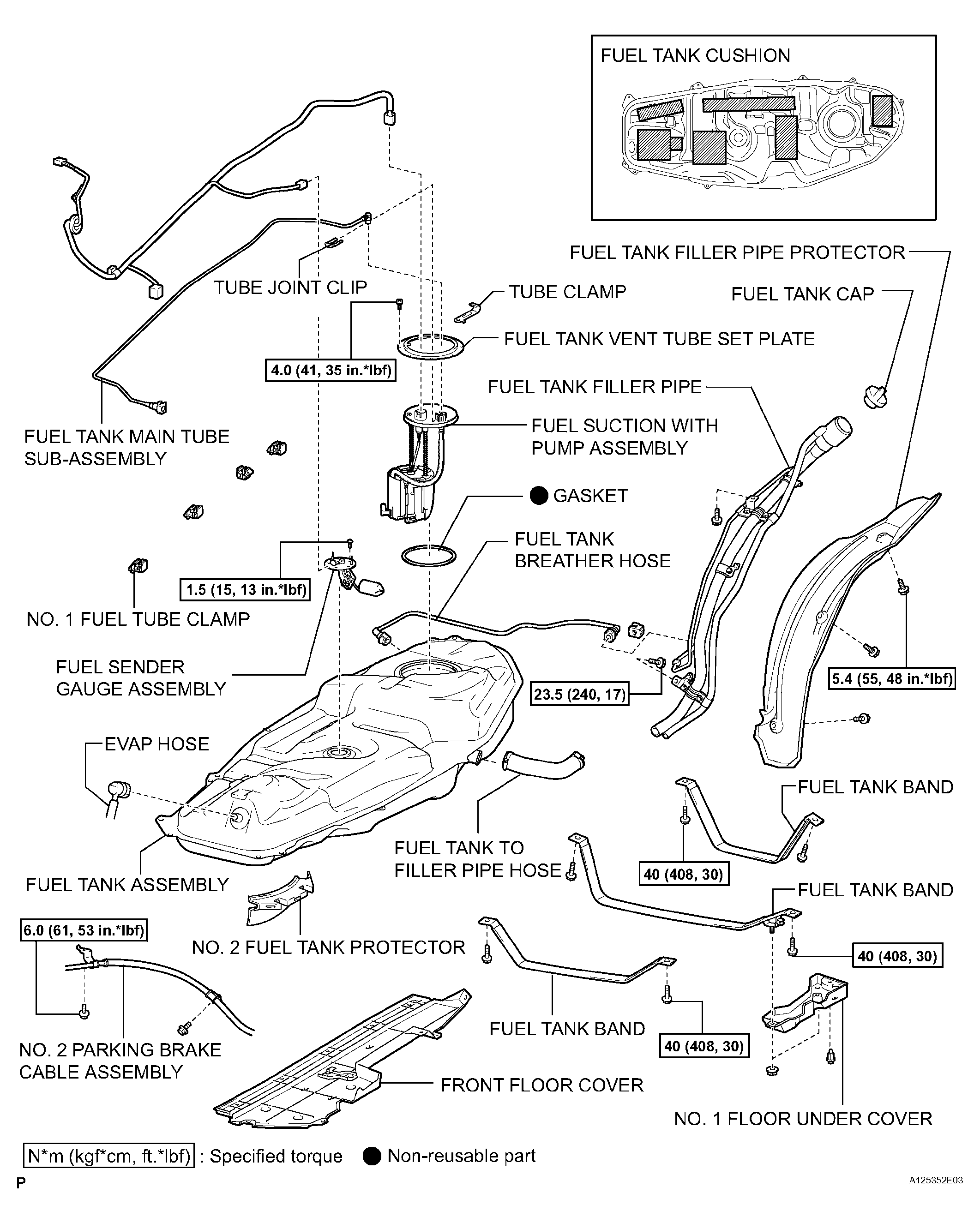

Fig 1: Identifying Fuel Tank Components (1 Of 2)
G04485592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

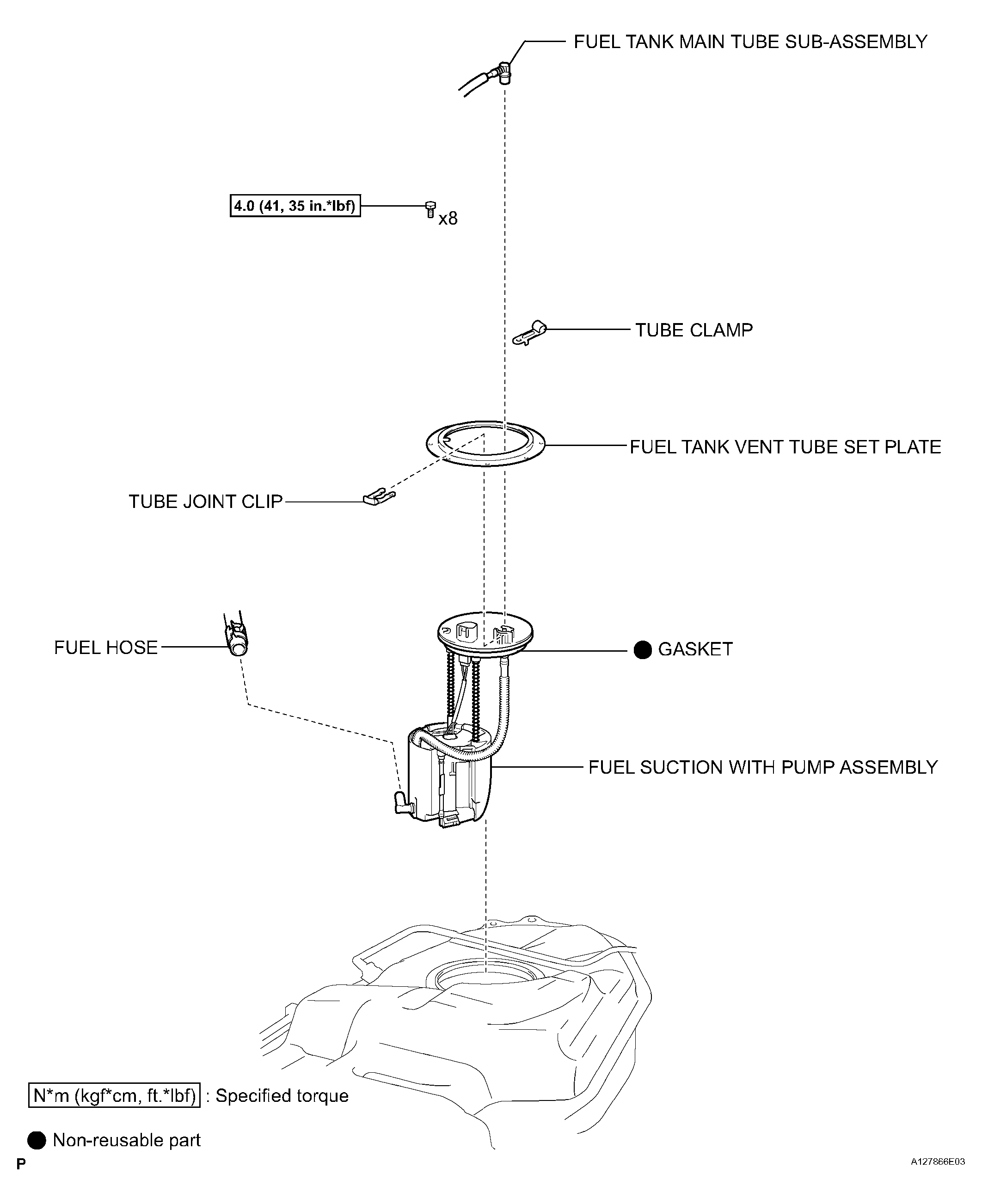

Fig 2: Identifying Fuel Tank Components (2 Of 2)
G04485593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
