Fuel Pump Resistor: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE FUEL PUMP RESISTOR COVER
    1. Remove the cover from the resistor.
  3. REMOVE FUEL PUMP RESISTOR
    1. Disconnect the connector.
    2. Remove the 2 bolts and resistor.

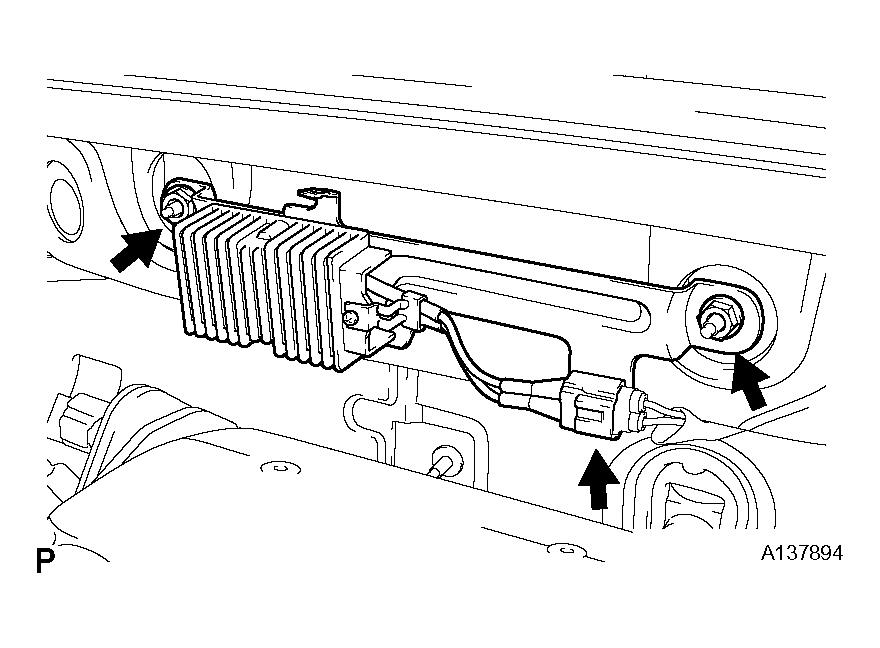

      Fig 1: Disconnecting Connector
      G04485589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
