Fuel Pump Resistor: Components

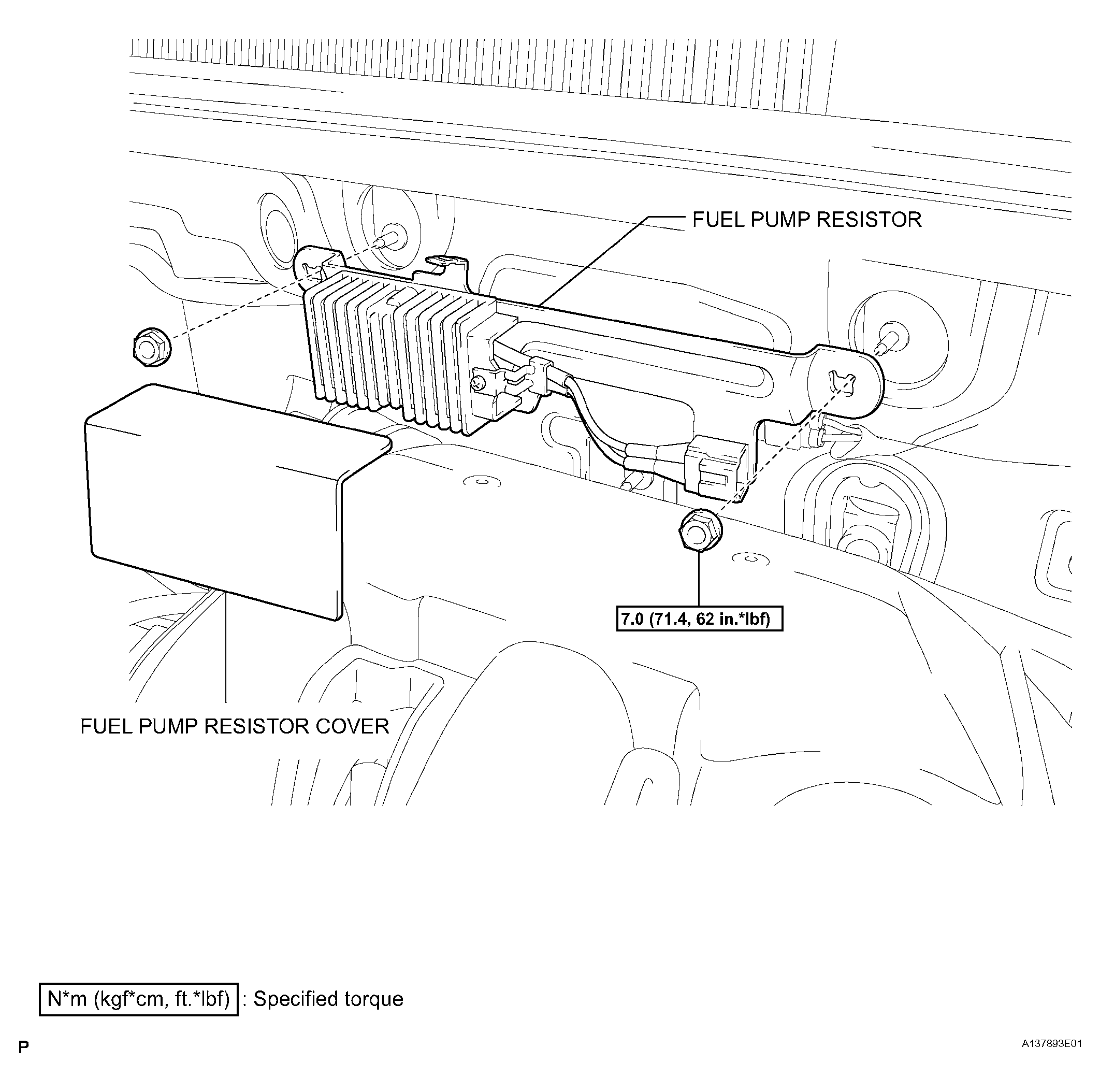

Fig 1: Fuel Pump Resistor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
