Home >> Toyota >> 2006 >> RAV4 Base, 3.5 K, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control System (2GR-FE) >> SFI System >> VC Output Circuit >> Wiring Diagram

VC Output Circuit: Wiring Diagram

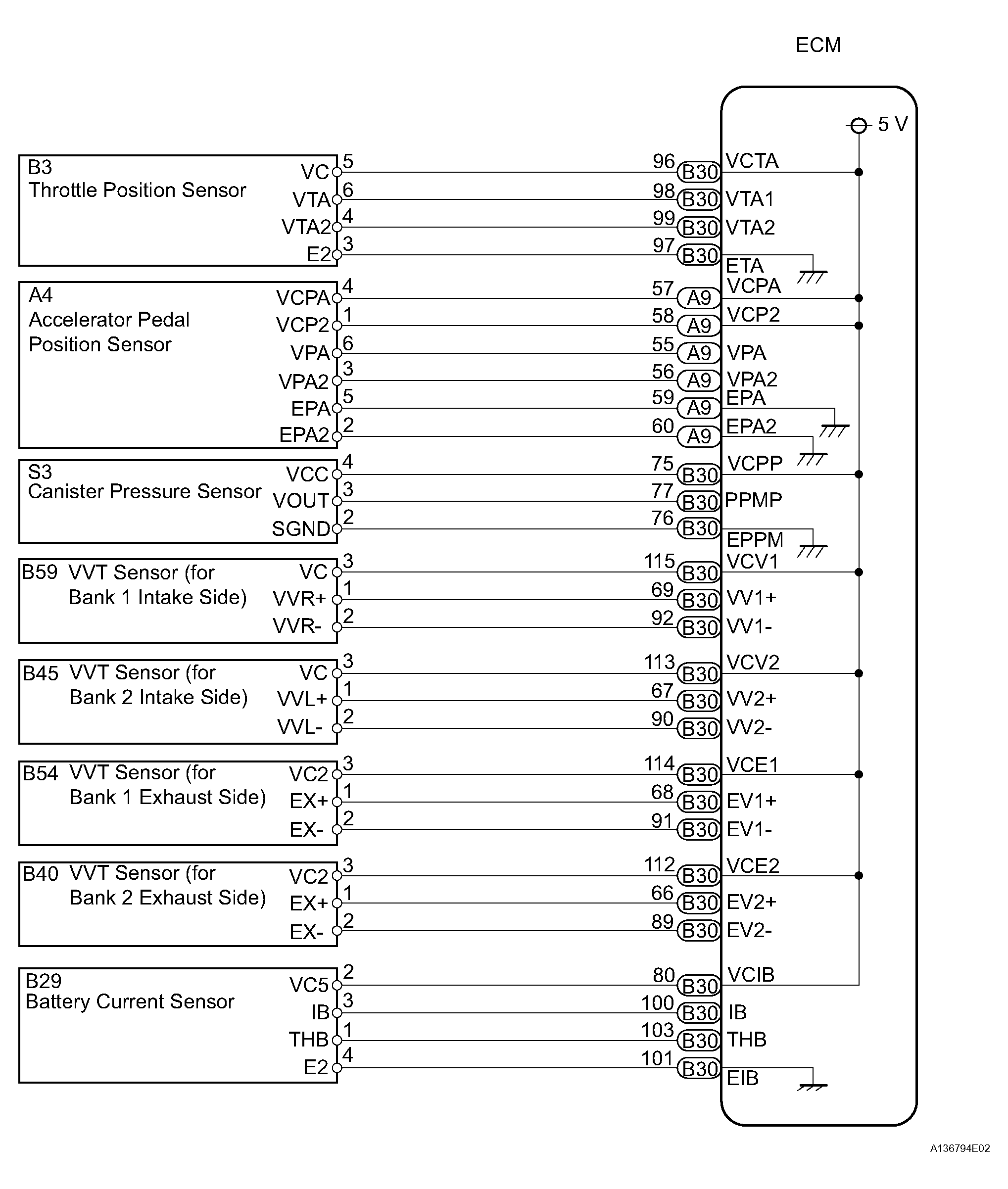

Fig 1: VC Output - Wiring Diagram

G04484504

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
