Waveform 5
Crankshaft Position Sensor And Camshaft Position Sensor

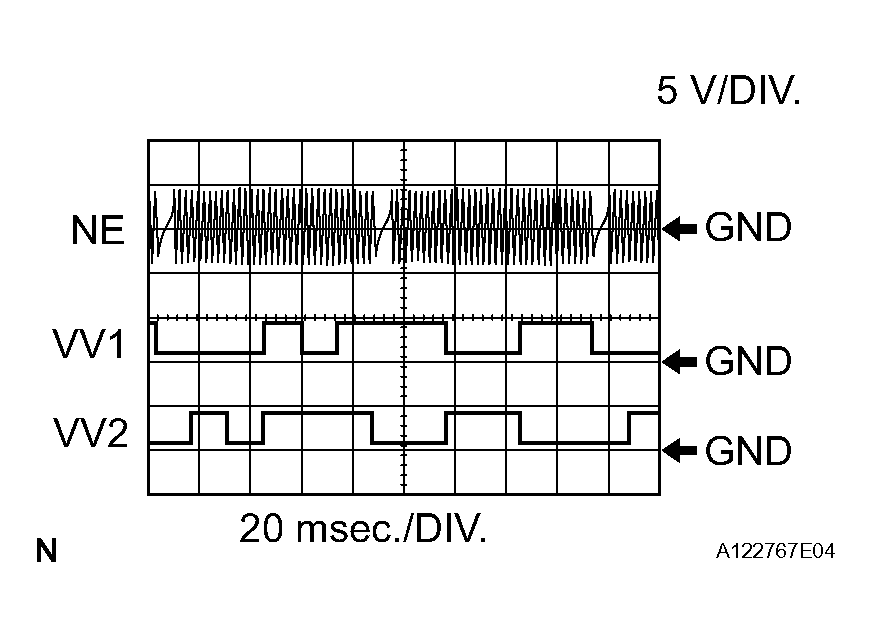

REFERENCE WAVEFORM 5
| Symbol (Terminal No.) | Between NE+ and NE- Between VV1+ and VV1- Between EV1+ and EV1- Between VV2+ and VV2- Between EV2+ and EV2- |
| Tester Range | 5 V/DIV., 20 msec./DIV. |
| Condition | Idling |
HINT:
The wavelength becomes shorter as the engine rpm increases.
