Power Outlet - 12V: Notes

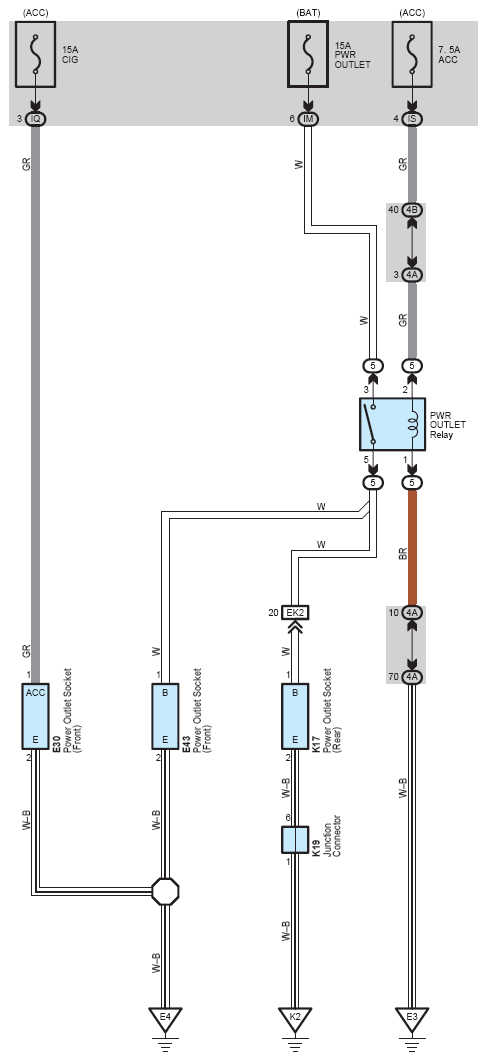

Fig 1: Power Outlet - 12V System Wiring Diagram

G08795443

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
