Engine Control for 2AZ-FE: Notes

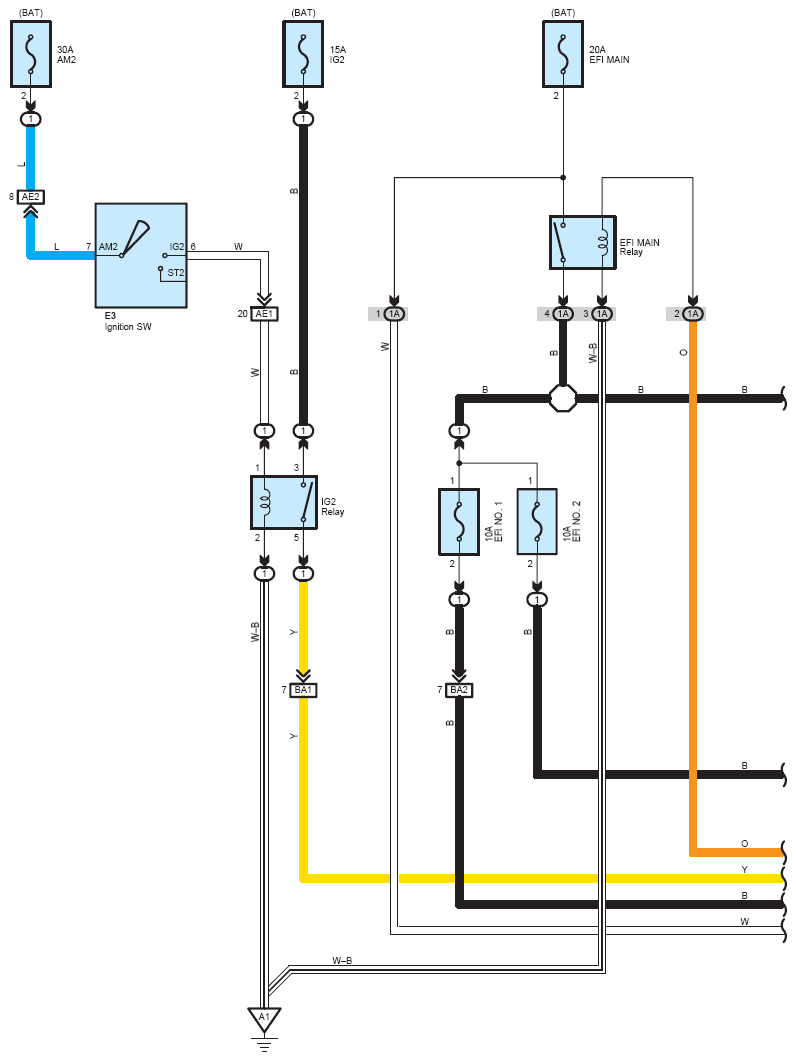

Fig 1: Engine Control For 2AZ-FE System Wiring Diagram (1 Of 9)
G08795400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

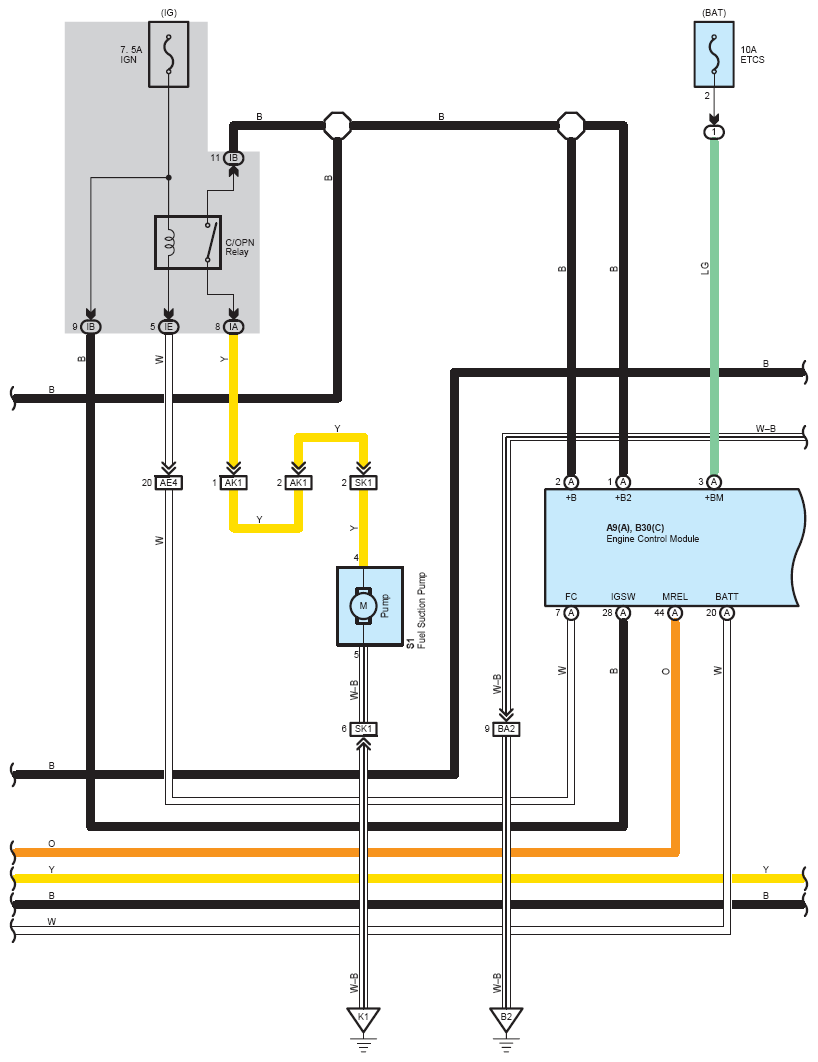

Fig 2: Engine Control For 2AZ-FE System Wiring Diagram (2 Of 9)
G08795401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

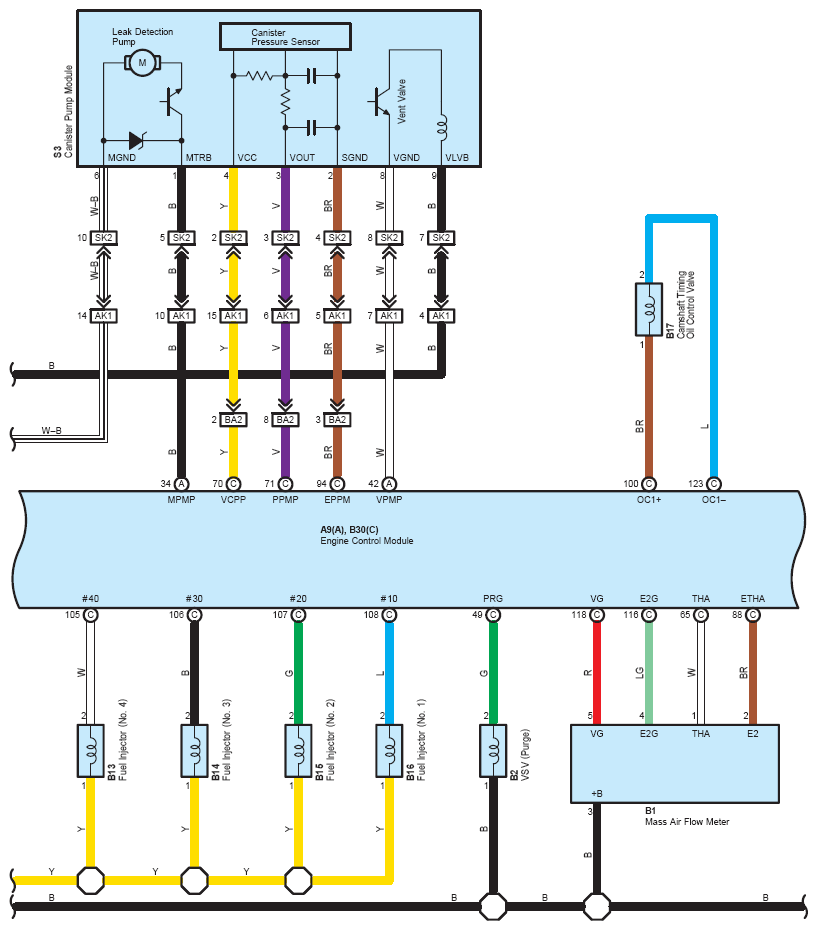

Fig 3: Engine Control For 2AZ-FE System Wiring Diagram (3 Of 9)
G08795402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

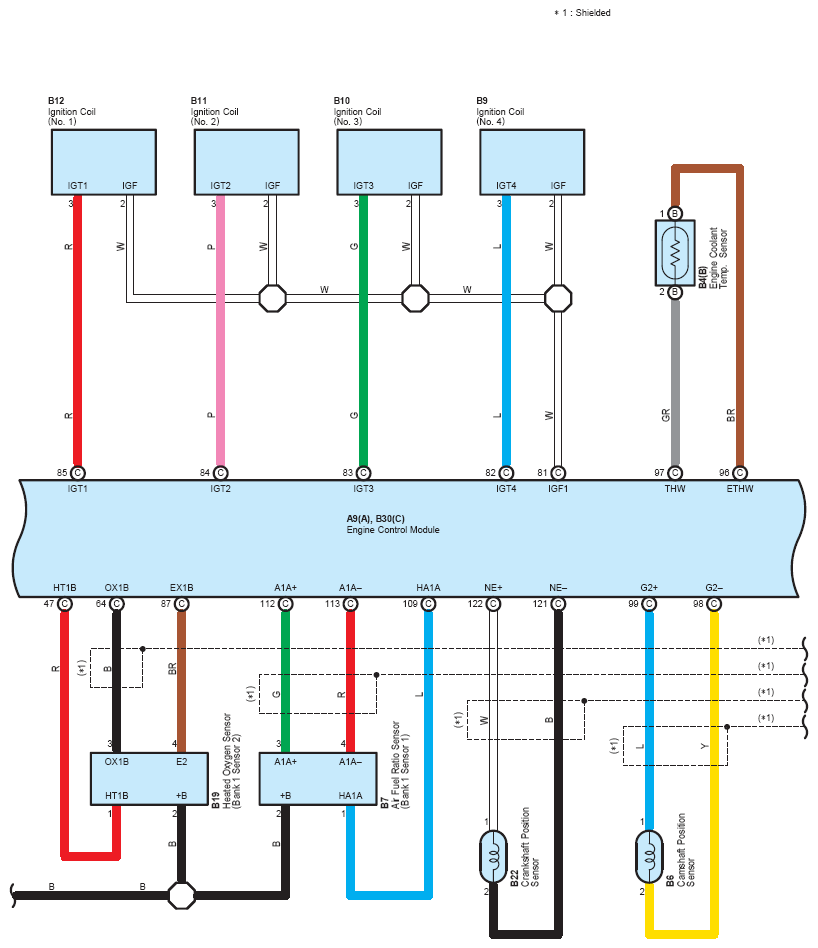

Fig 4: Engine Control For 2AZ-FE System Wiring Diagram (4 Of 9)
G08795403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

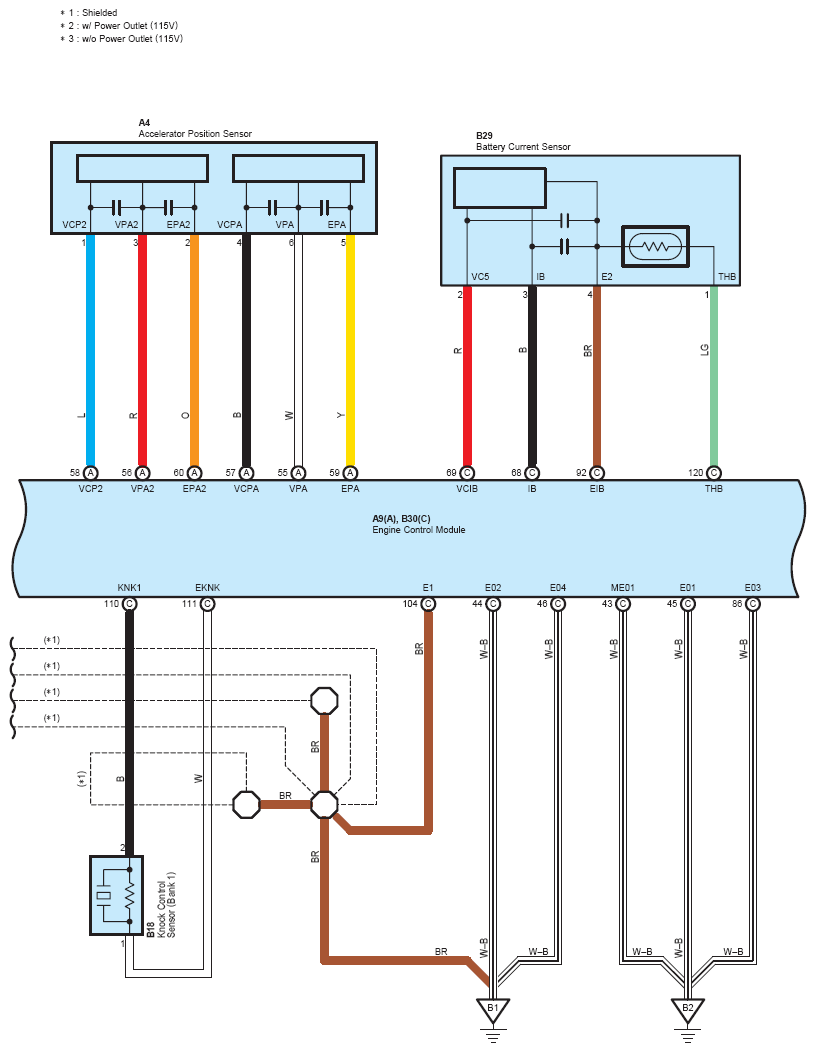

Fig 5: Engine Control For 2AZ-FE System Wiring Diagram (5 Of 9)
G08795404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

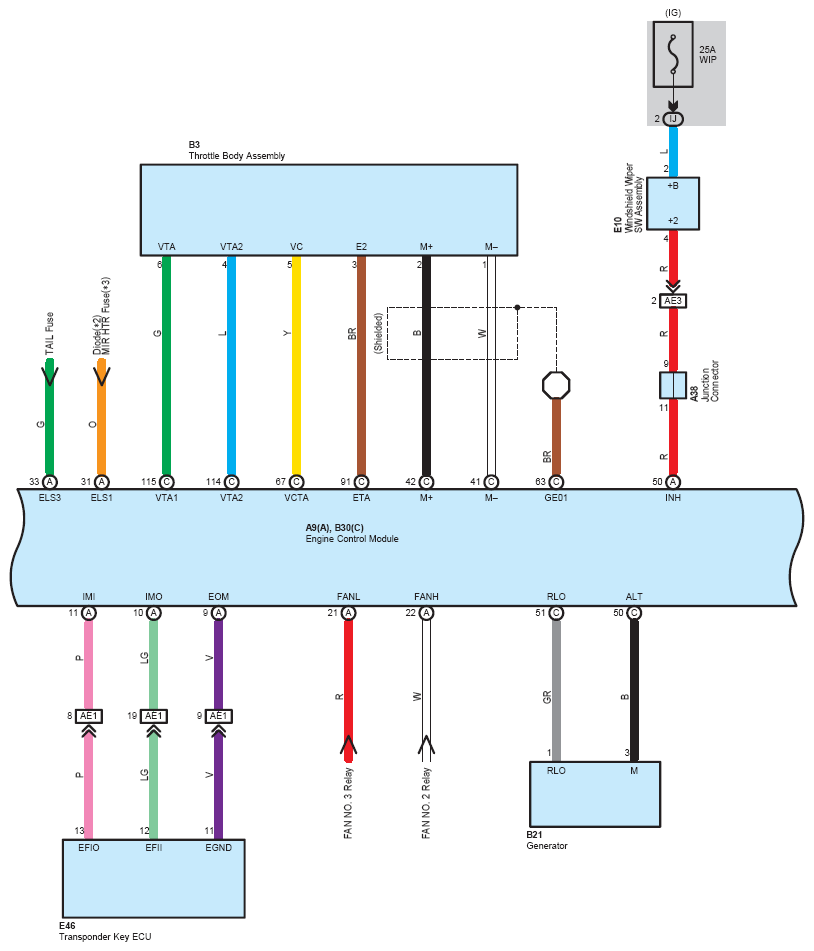

Fig 6: Engine Control For 2AZ-FE System Wiring Diagram (6 Of 9)
G08795405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

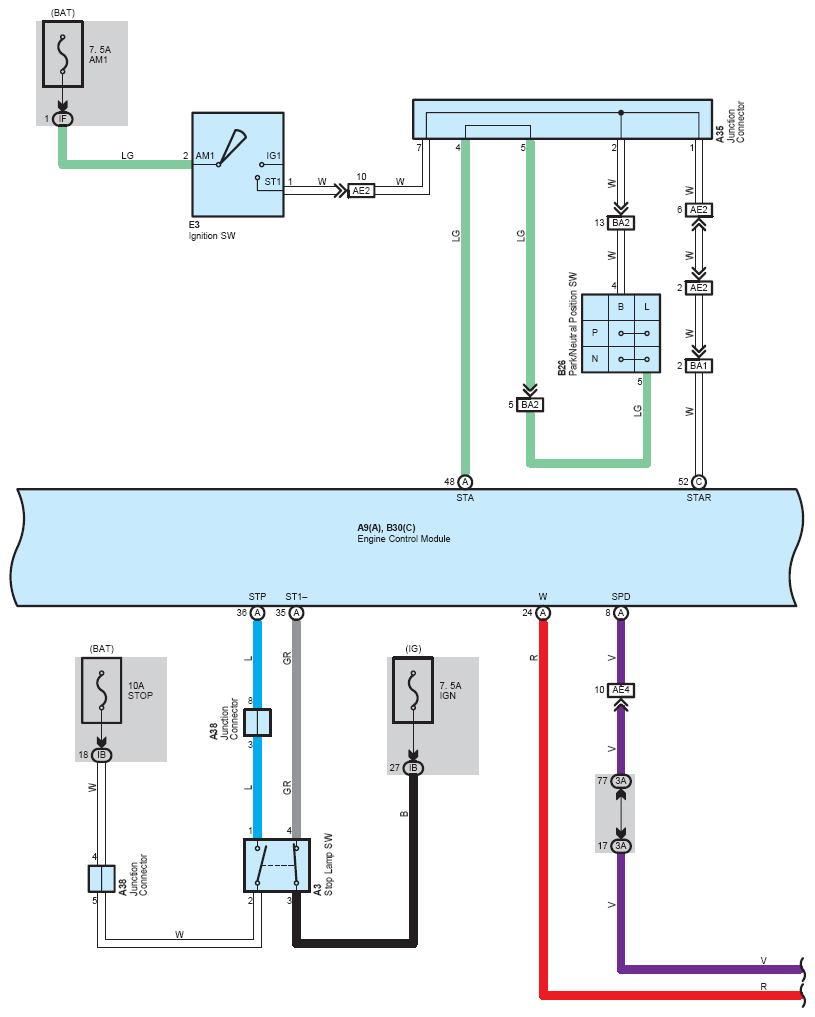

Fig 7: Engine Control For 2AZ-FE System Wiring Diagram (7 Of 9)
G08795406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

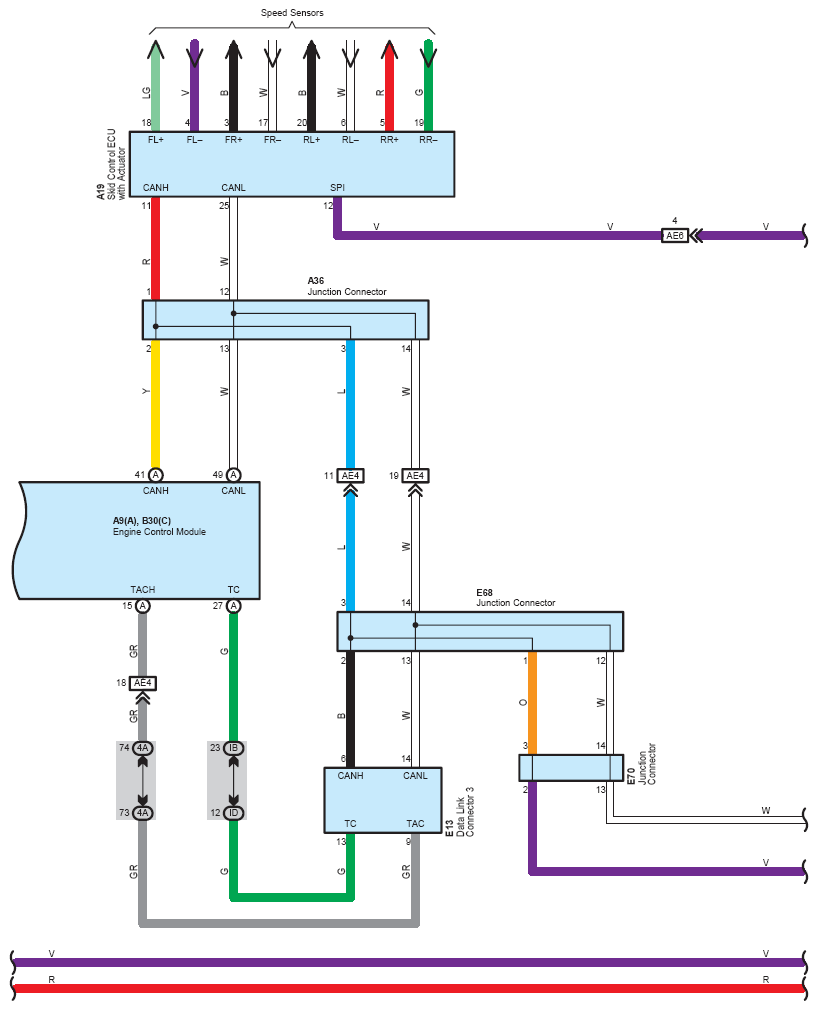

Fig 8: Engine Control For 2AZ-FE System Wiring Diagram (8 Of 9)
G08795407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

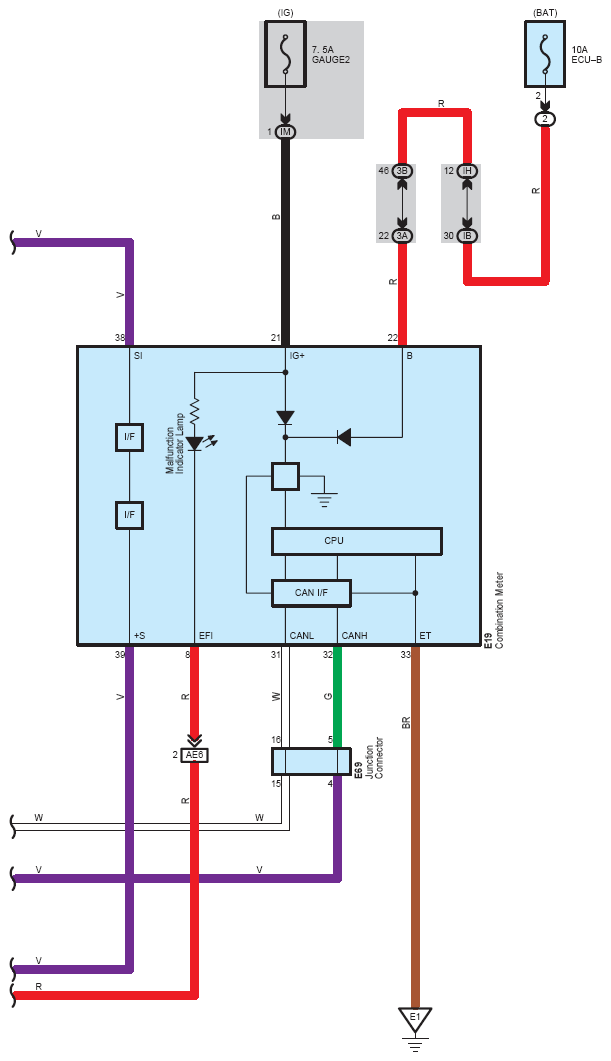

Fig 9: Engine Control For 2AZ-FE System Wiring Diagram (9 Of 9)
G08795408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
