Cruise Control for 2GR-FE: Notes

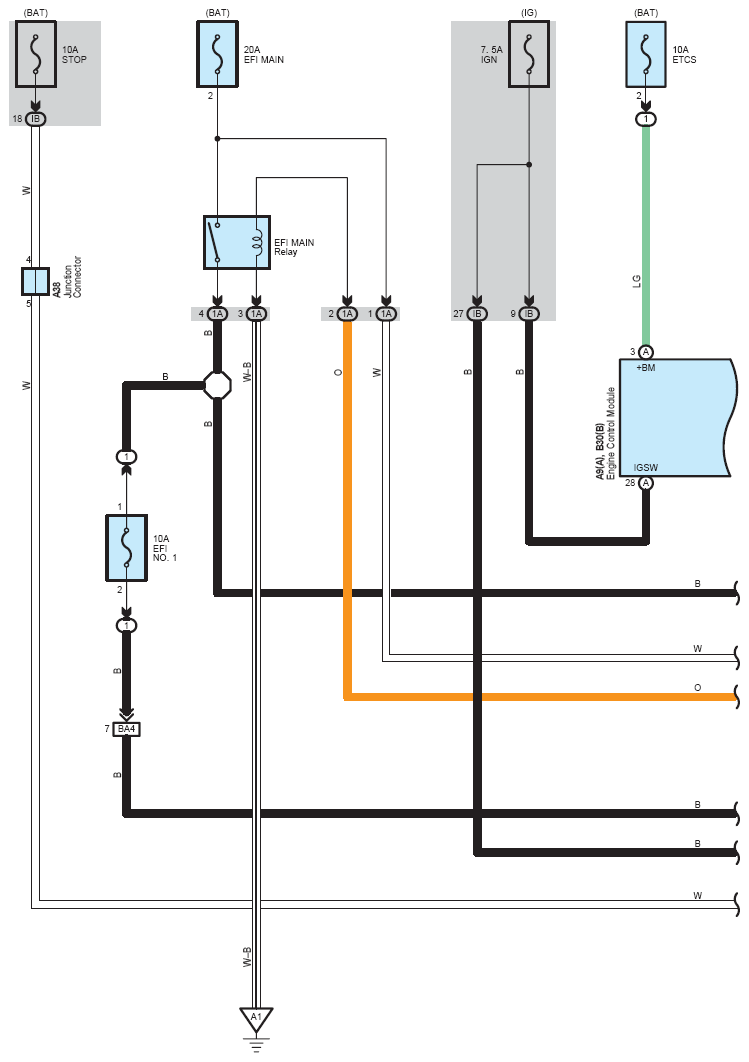

Fig 1: Cruise Control For 2GR-FE System Wiring Diagram (1 Of 6)
G08795474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

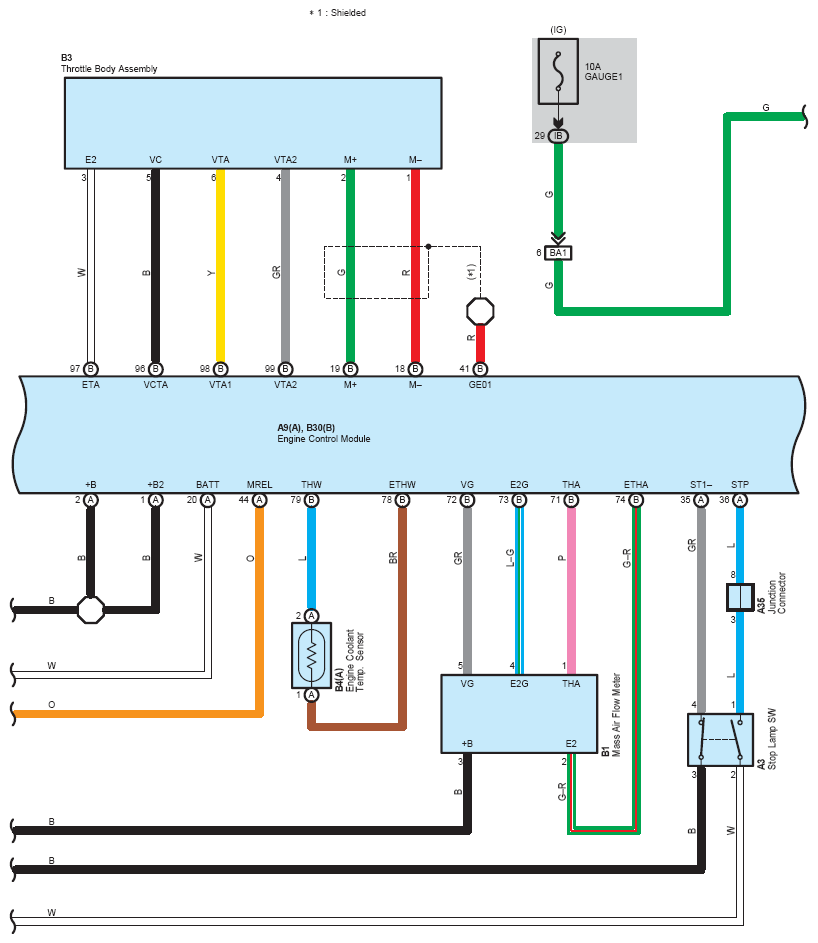

Fig 2: Cruise Control For 2GR-FE System Wiring Diagram (2 Of 6)
G08795475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

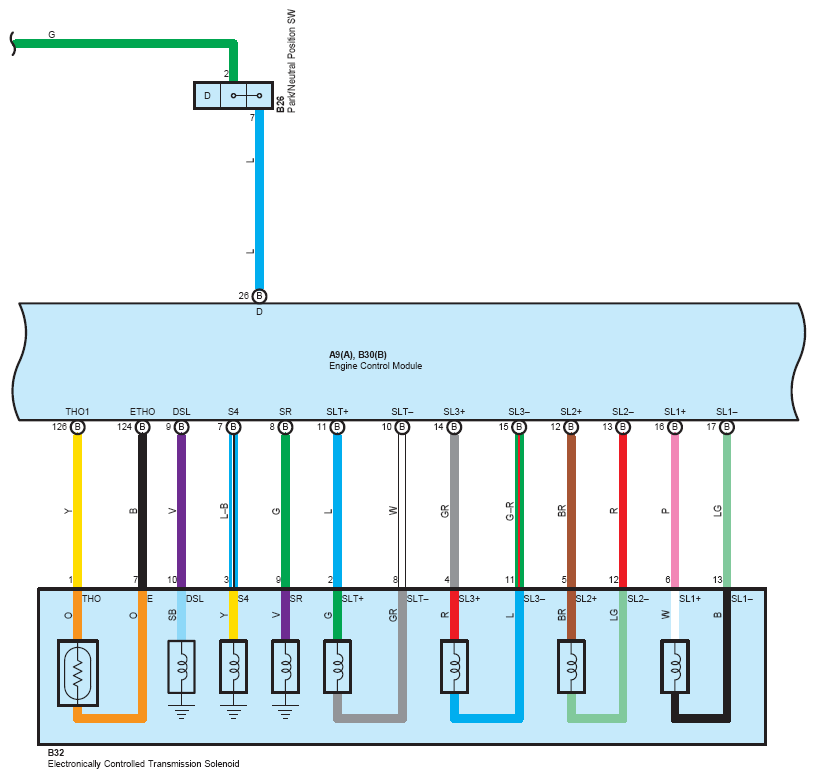

Fig 3: Cruise Control For 2GR-FE System Wiring Diagram (3 Of 6)
G08795476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

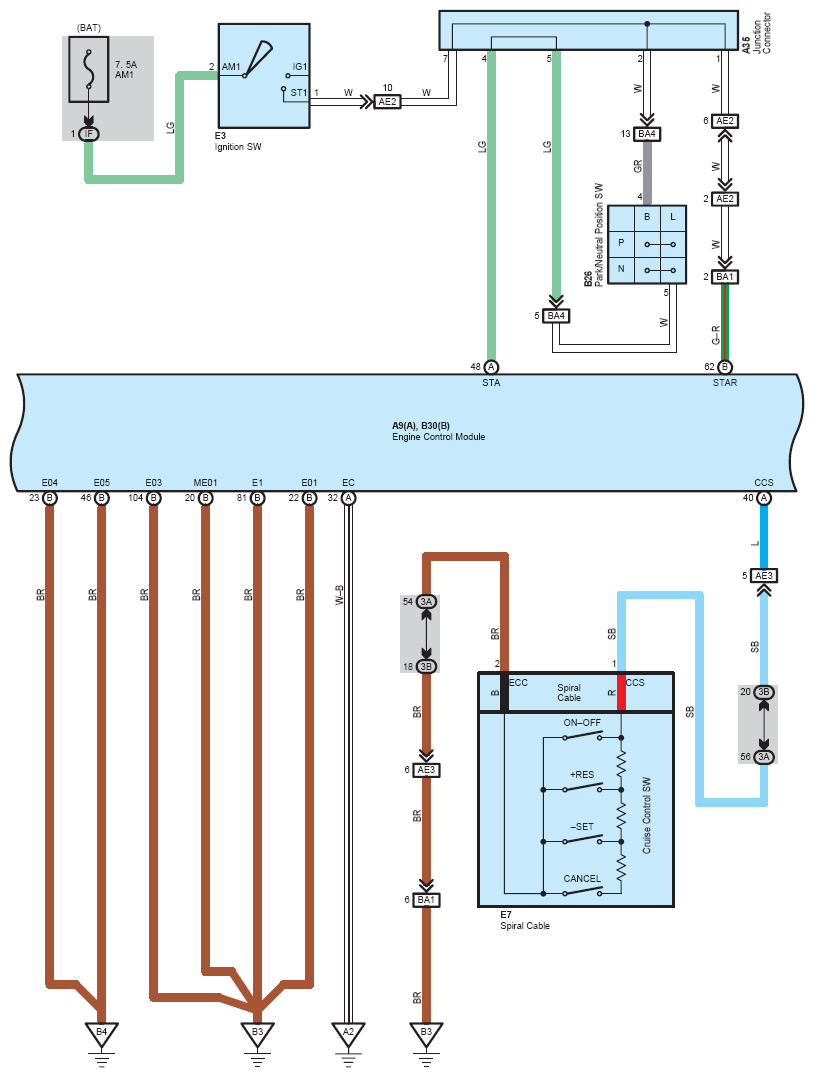

Fig 4: Cruise Control For 2GR-FE System Wiring Diagram (4 Of 6)
G08795477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

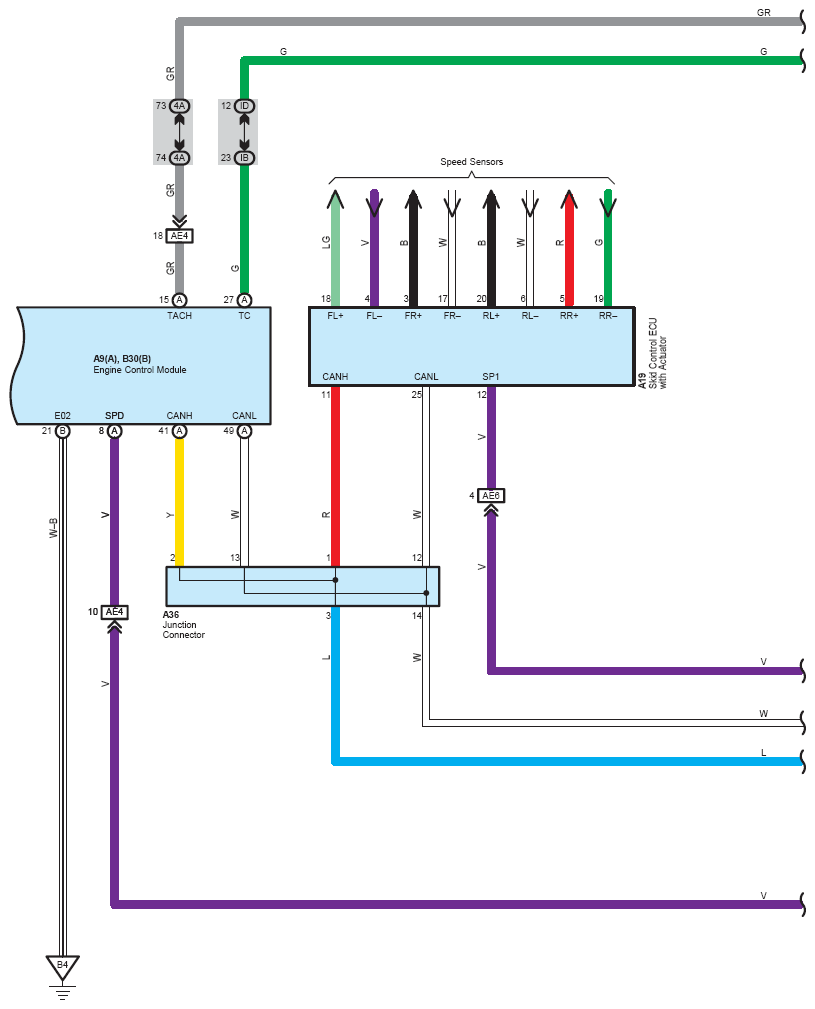

Fig 5: Cruise Control For 2GR-FE System Wiring Diagram (5 Of 6)
G08795478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

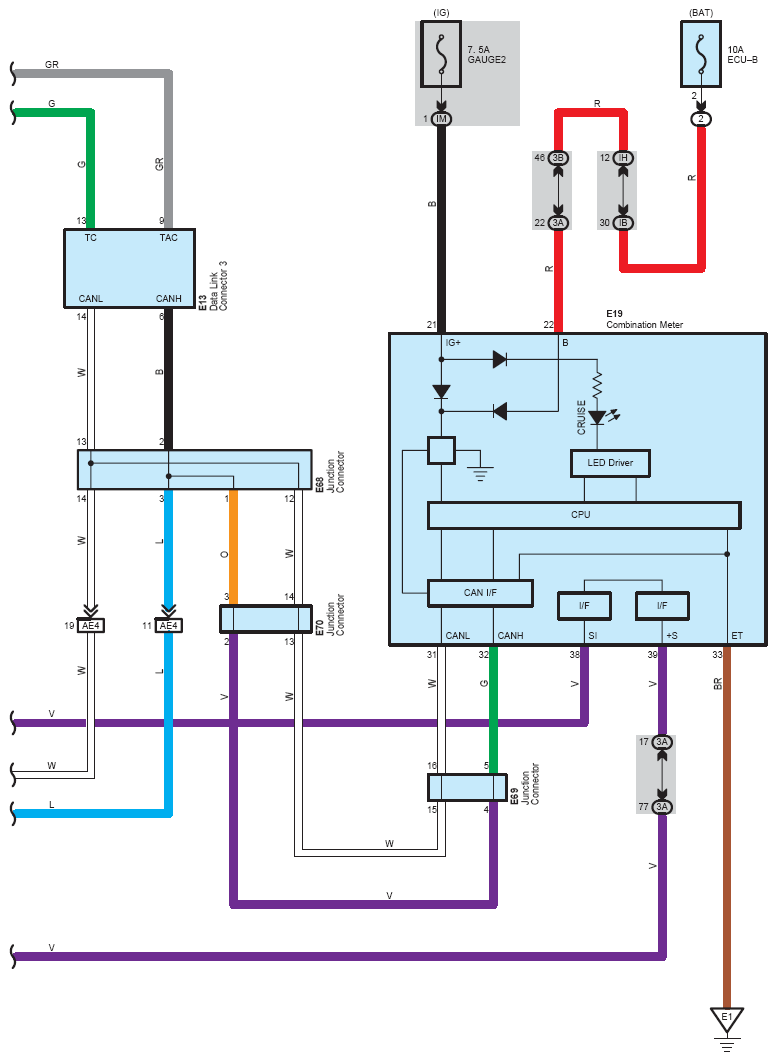

Fig 6: Cruise Control For 2GR-FE System Wiring Diagram (6 Of 6)
G08795479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
