Clock without Automatic Air Conditioning: Notes

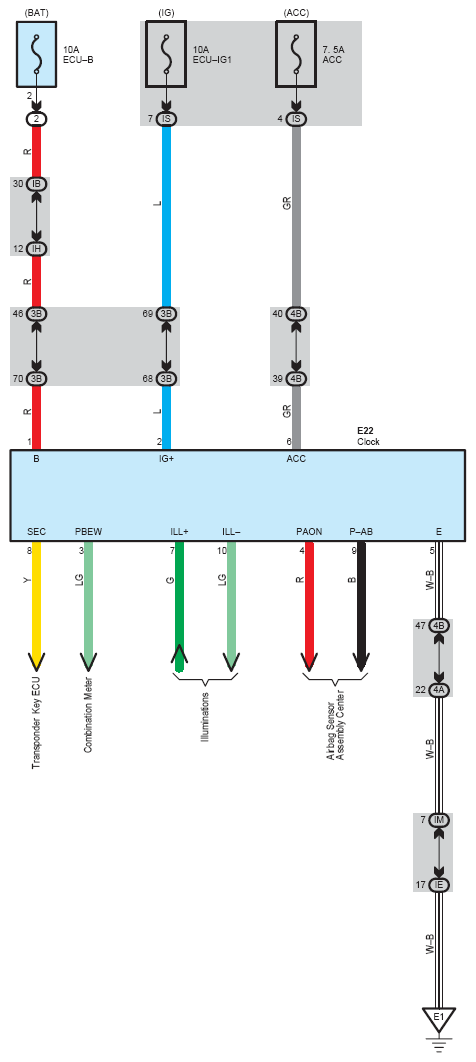

Fig 1: Clock Without Automatic Air Conditioning System Wiring Diagram

G08795510

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
