Audio System for JBL: Notes

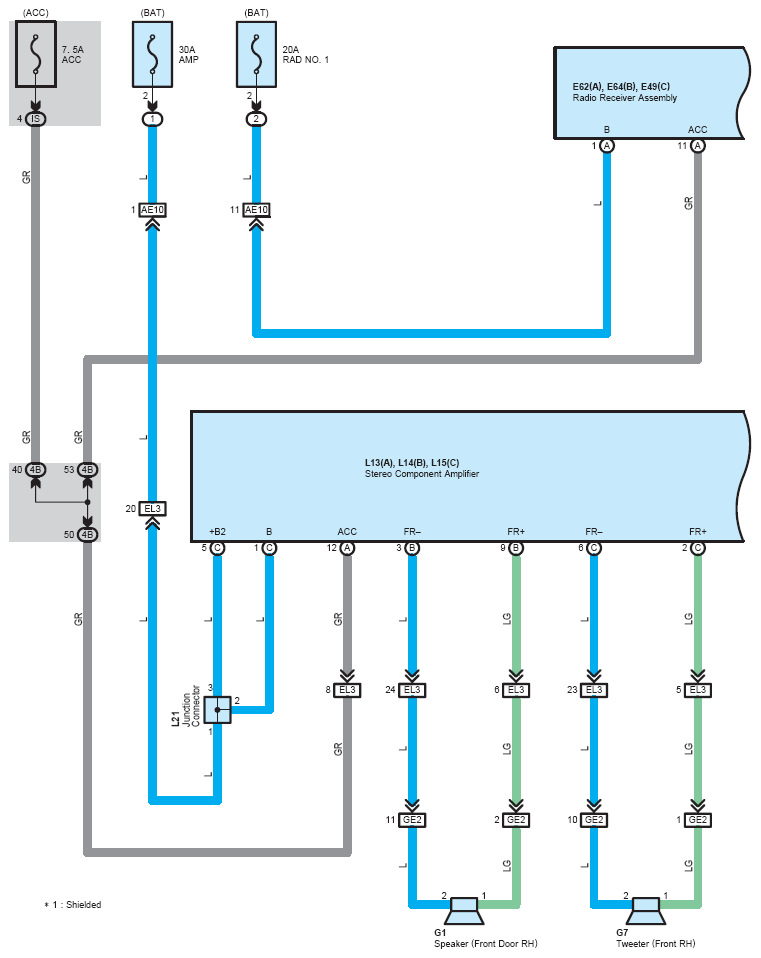

Fig 1: Audio System For JBL System Wiring Diagram (1 Of 6)
G08795513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

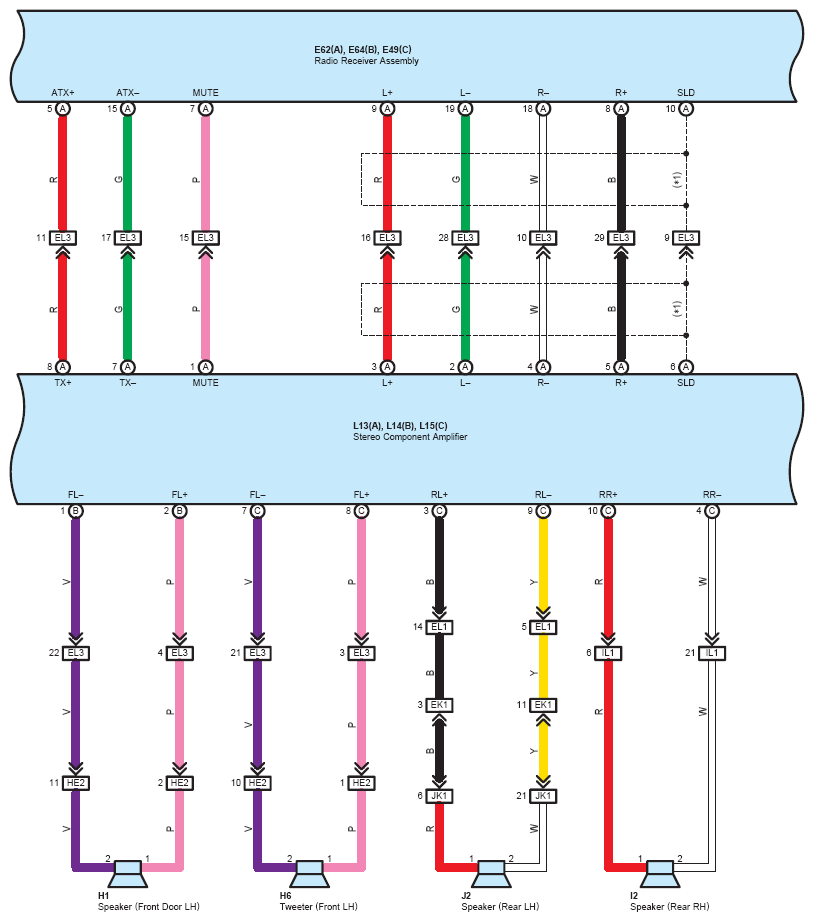

Fig 2: Audio System For JBL System Wiring Diagram (2 Of 6)
G08795514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

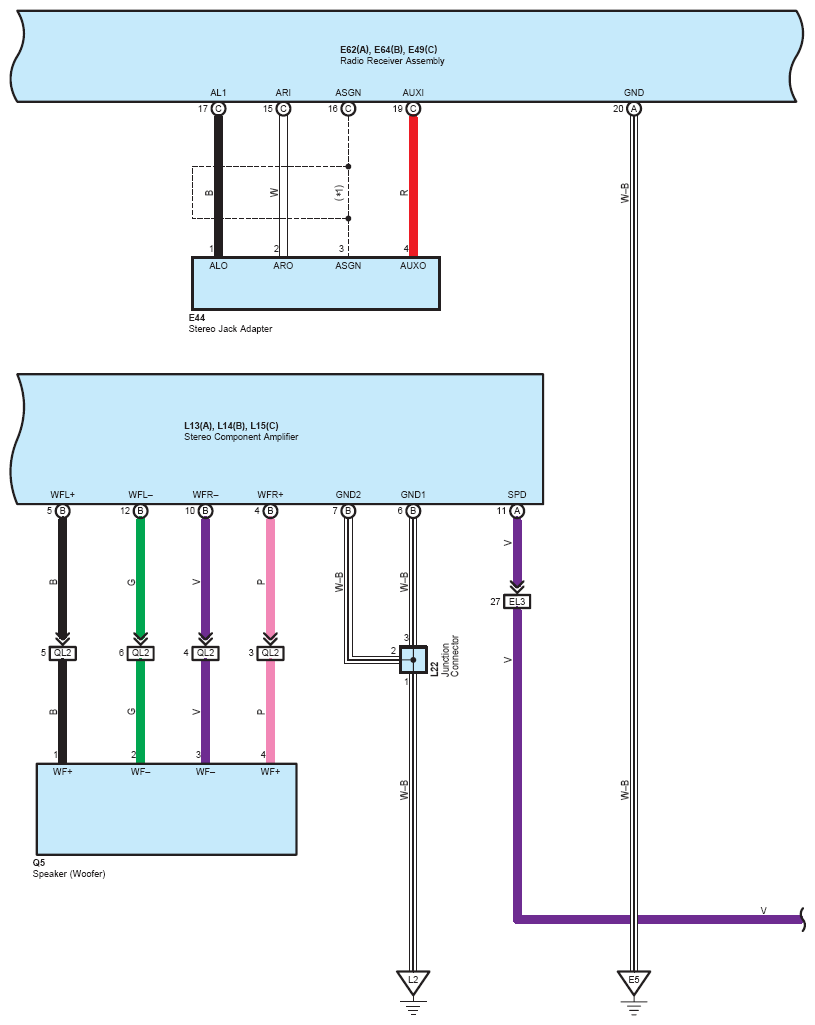

Fig 3: Audio System For JBL System Wiring Diagram (3 Of 6)
G08795515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

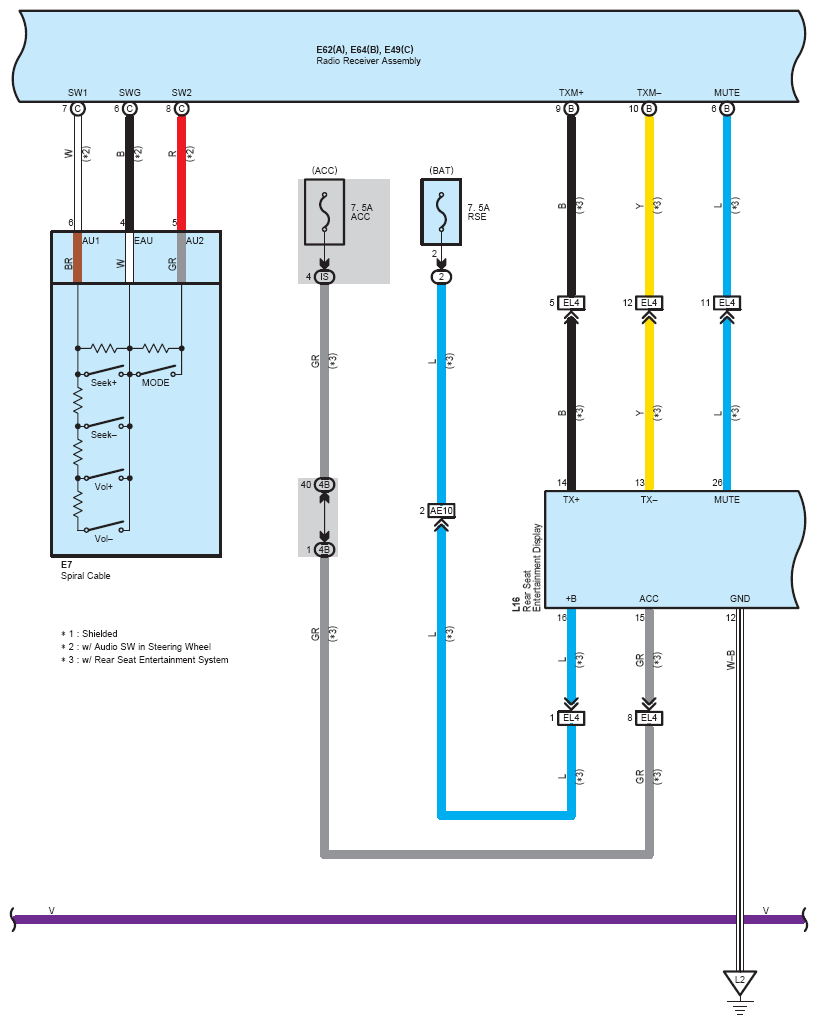

Fig 4: Audio System For JBL System Wiring Diagram (4 Of 6)
G08795516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

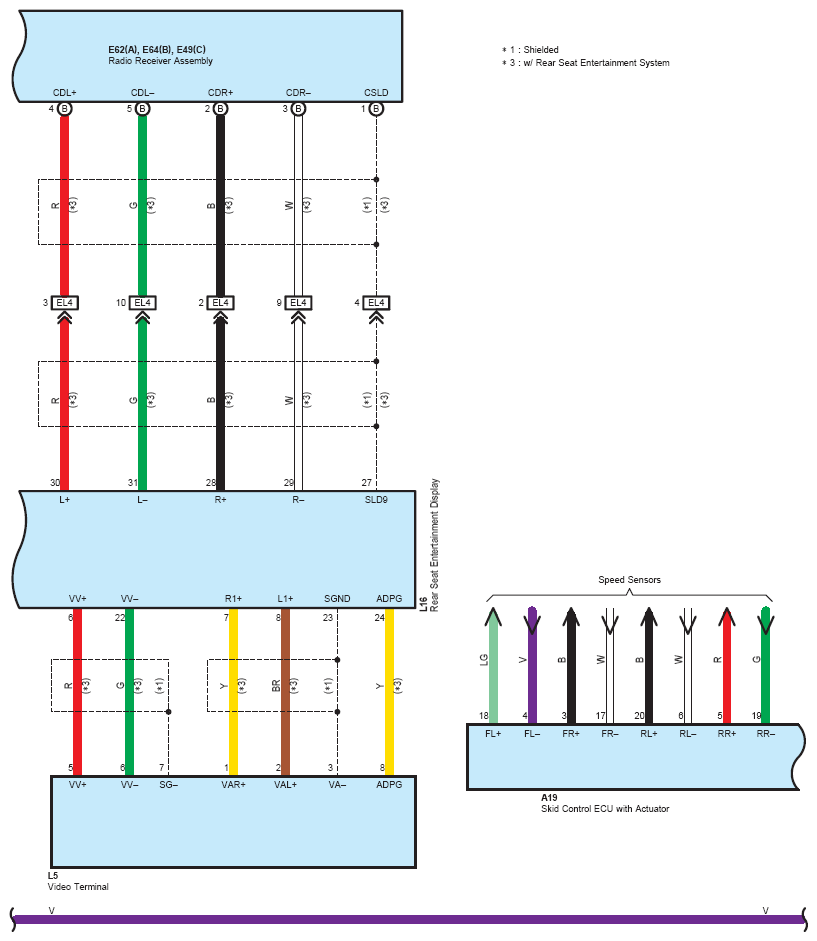

Fig 5: Audio System For JBL System Wiring Diagram (5 Of 6)
G08795517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

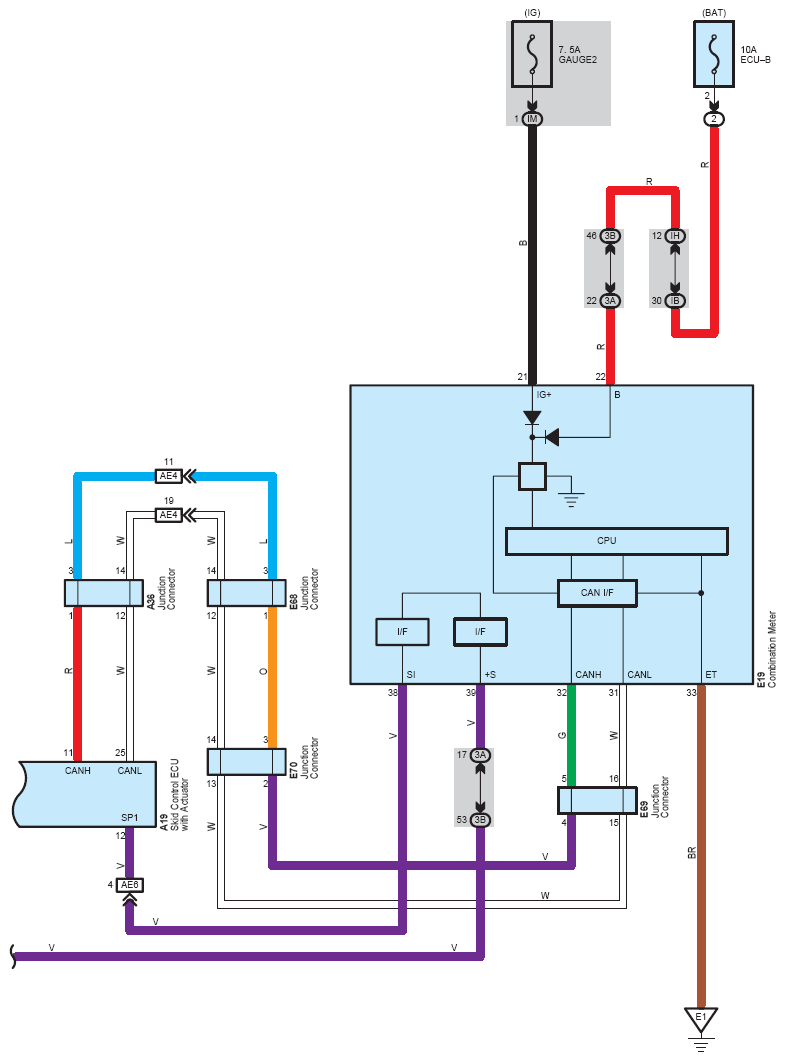

Fig 6: Audio System For JBL System Wiring Diagram (6 Of 6)
G08795518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
