Center Power Outlet Socket: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH (See step 12 under  REMOVAL  )
  3. REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH (See step 13 under  REMOVAL  )
  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
  5. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (See step 14 under  REMOVAL  )
  6. REMOVE UPPER REAR CONSOLE PANEL SUB-ASSEMBLY (See step 17 under  REMOVAL  )
  7. REMOVE CENTER POWER OUTLET SOCKET ASSEMBLY

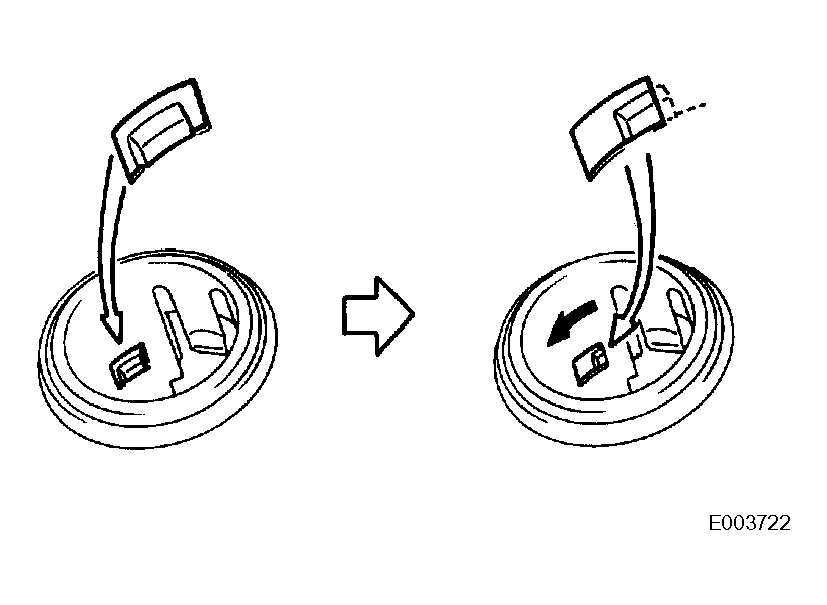

    1. Rotate the socket to disengage the notch.
      Fig 1: Removing Center Power Outlet Socket Assembly
      G04491355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

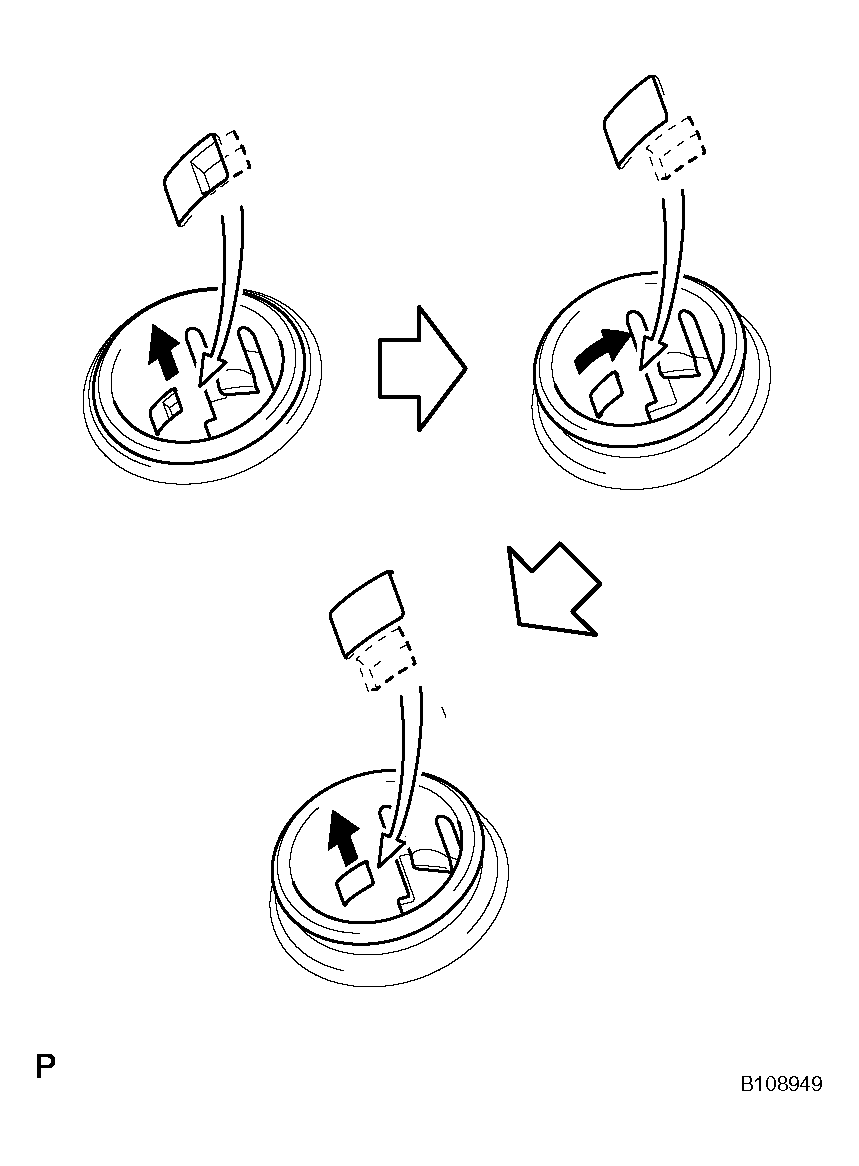

    2. Pull out the socket halfway and rotate the socket until its protrusion is aligned with the groove of the cover.
    3. Remove the socket from the cover.
      Fig 2: Removing Socket From Cover
      G04491356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
