Ignition for 2GR-FE: Notes

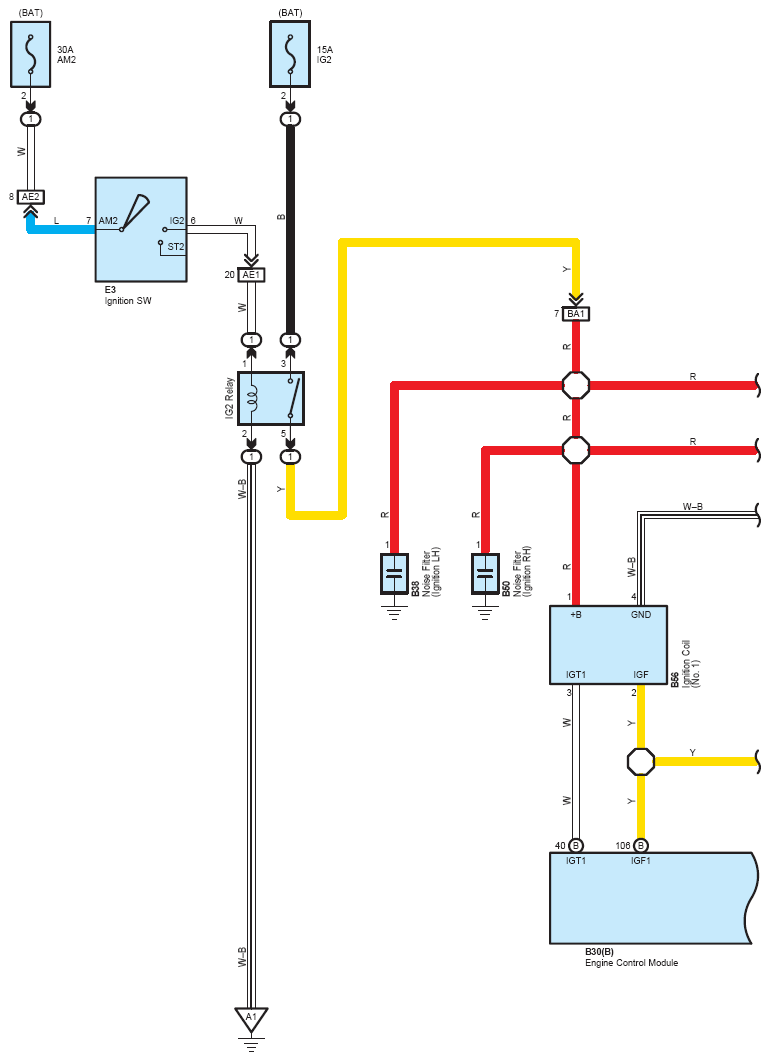

Fig 1: Ignition For 2GR-FE System Wiring Diagram (1 Of 3)
G08795378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

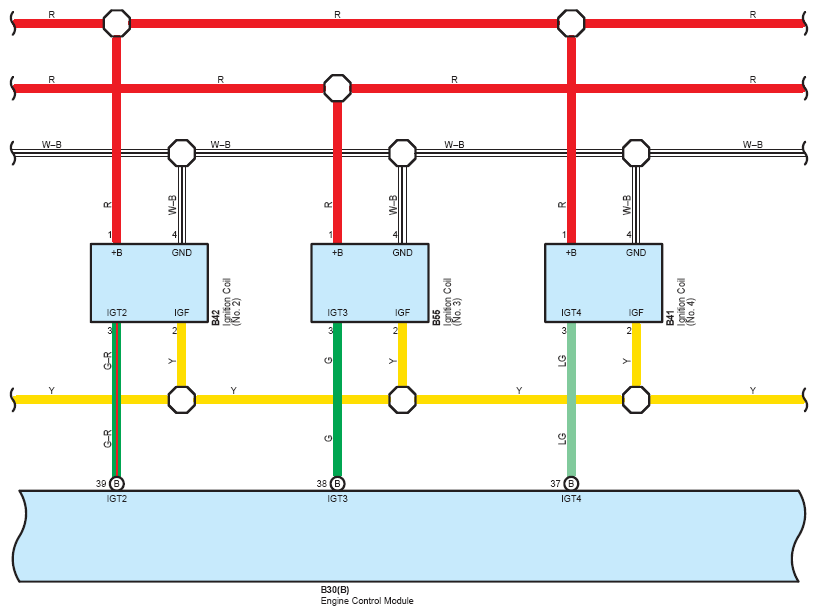

Fig 2: Ignition For 2GR-FE System Wiring Diagram (2 Of 3)
G08795379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

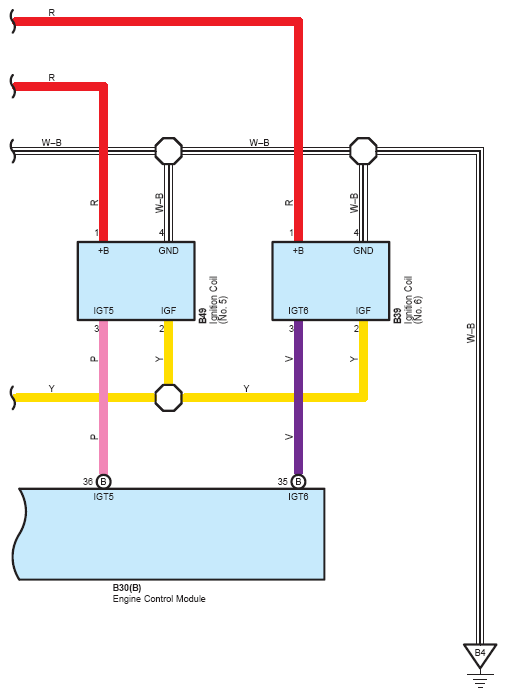

Fig 3: Ignition For 2GR-FE System Wiring Diagram (3 Of 3)
G08795380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
