Ignition for 2AZ-FE: Notes

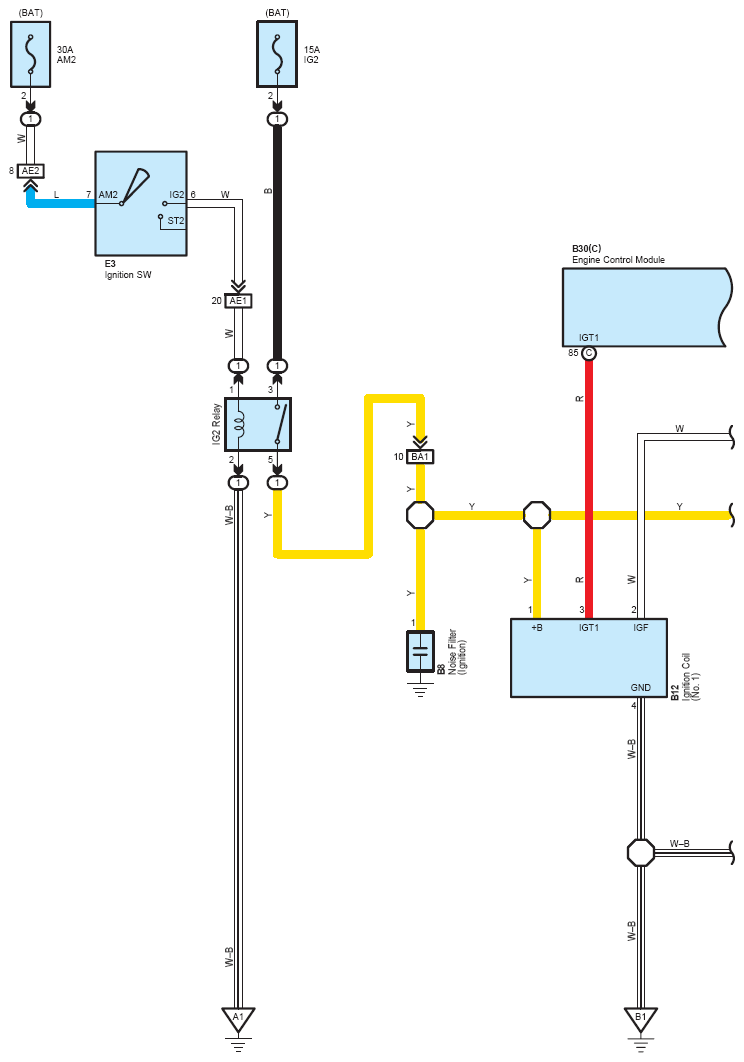

Fig 1: Ignition For 2AZ-FE System Wiring Diagram (1 Of 2)
G08795381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

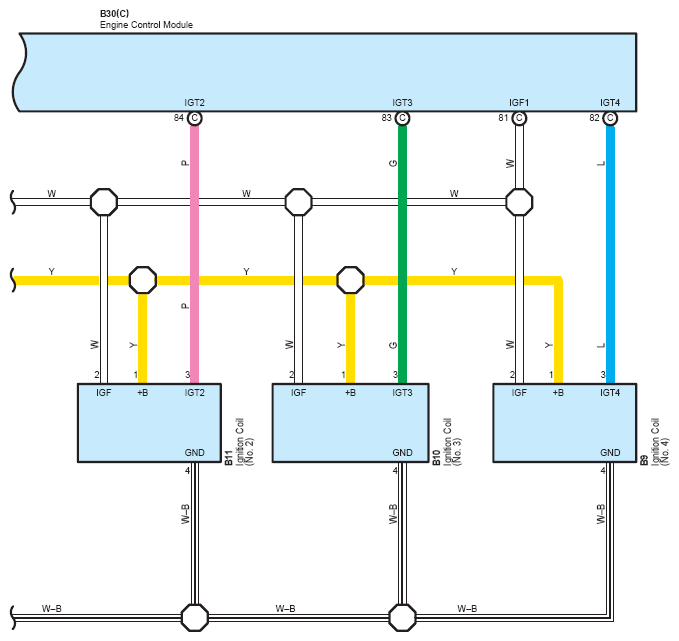

Fig 2: Ignition For 2AZ-FE System Wiring Diagram (2 Of 2)
G08795382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
