Cruise Control for 2AZ-FE: Notes

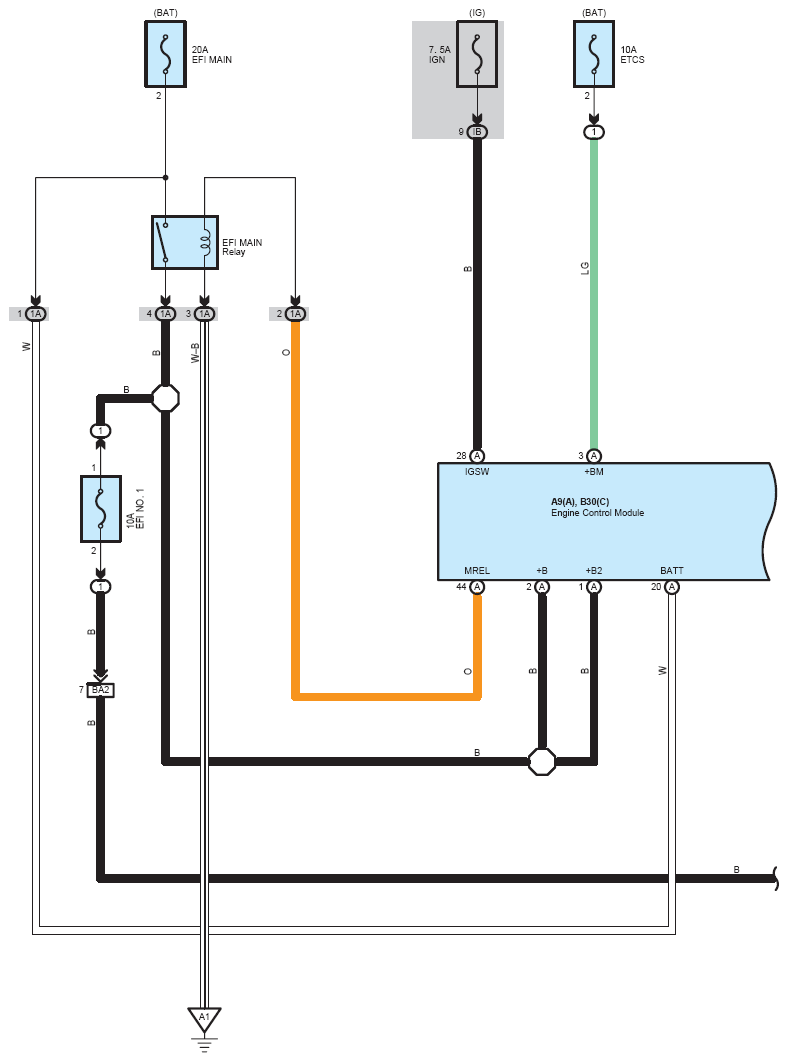

Fig 1: Cruise Control For 2AZ-FE System Wiring Diagram (1 Of 6)
G08795480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

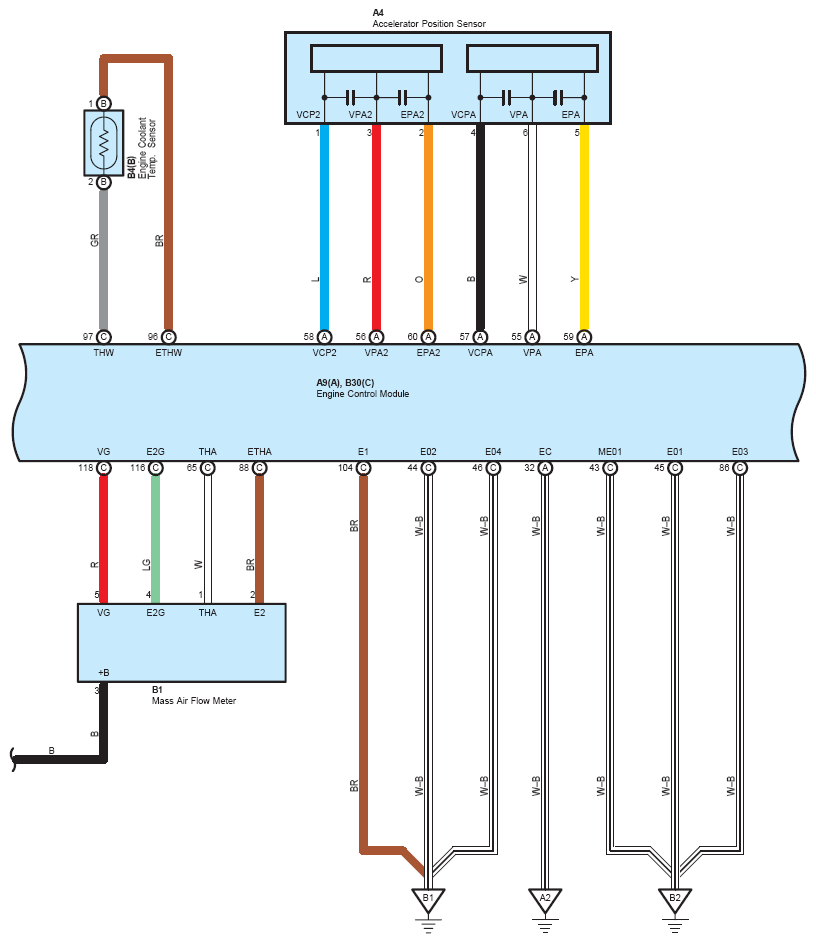

Fig 2: Cruise Control For 2AZ-FE System Wiring Diagram (2 Of 6)
G08795481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

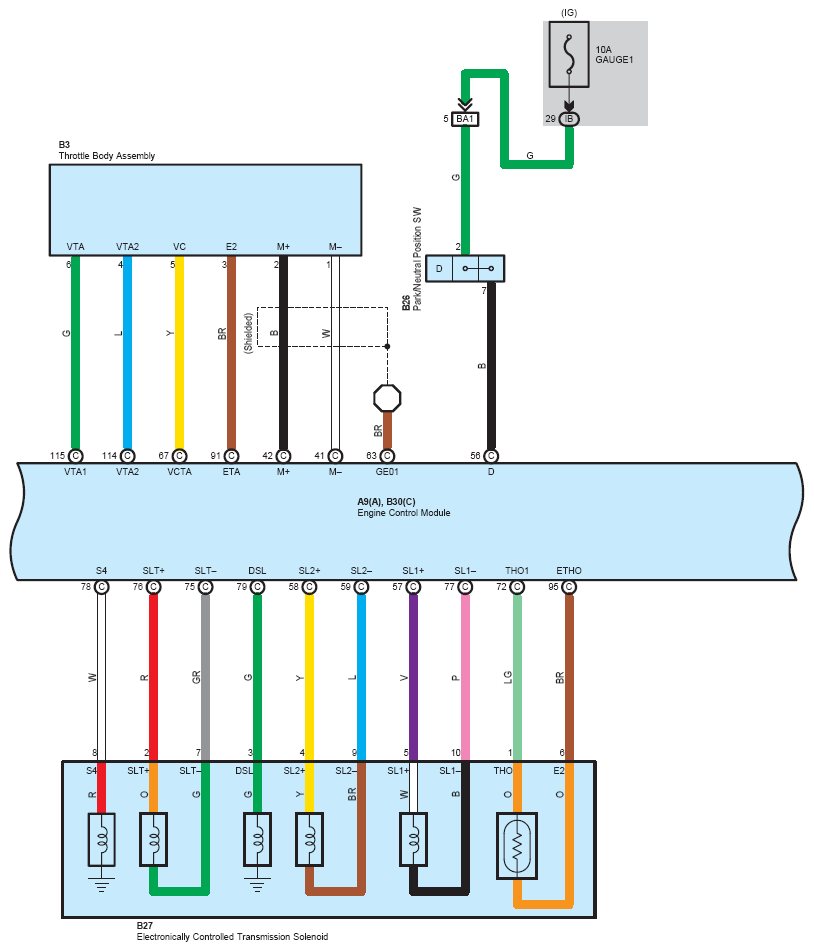

Fig 3: Cruise Control For 2AZ-FE System Wiring Diagram (3 Of 6)
G08795482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

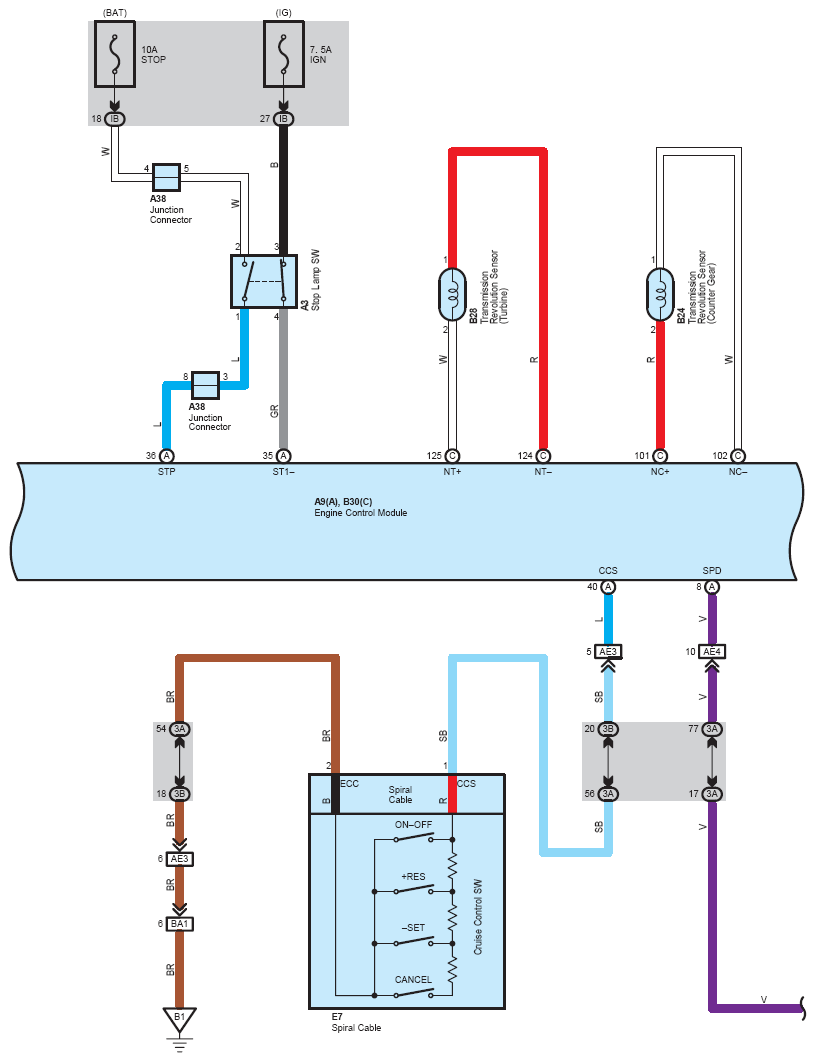

Fig 4: Cruise Control For 2AZ-FE System Wiring Diagram (4 Of 6)
G08795483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

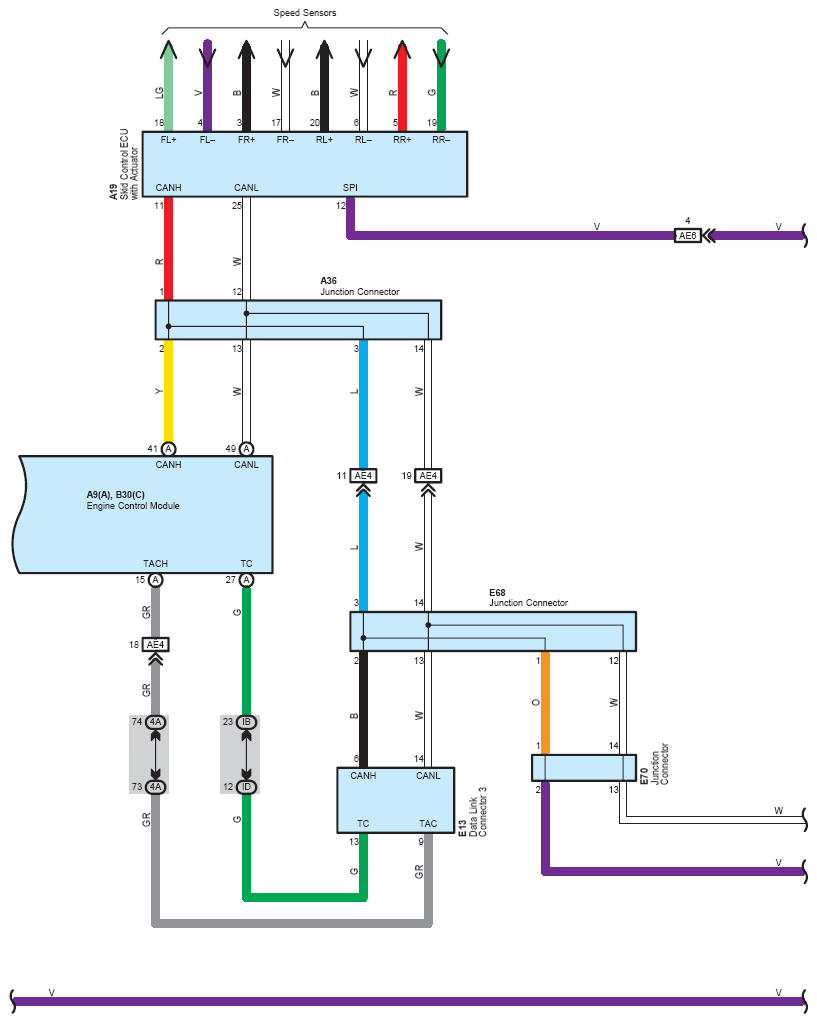

Fig 5: Cruise Control For 2AZ-FE System Wiring Diagram (5 Of 6)
G08795484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

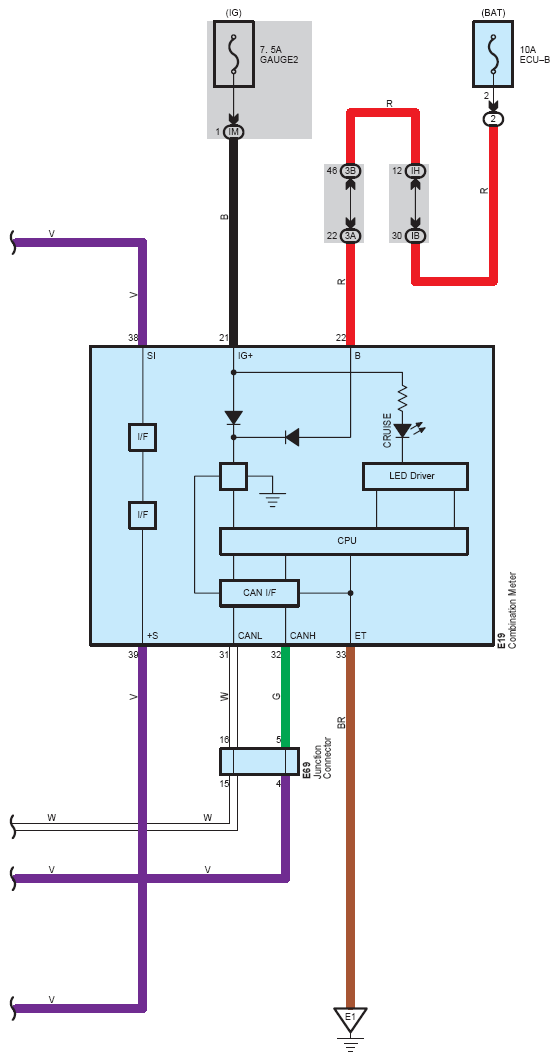

Fig 6: Cruise Control For 2AZ-FE System Wiring Diagram (6 Of 6)
G08795485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
