Charging without Trailer Towing: Notes

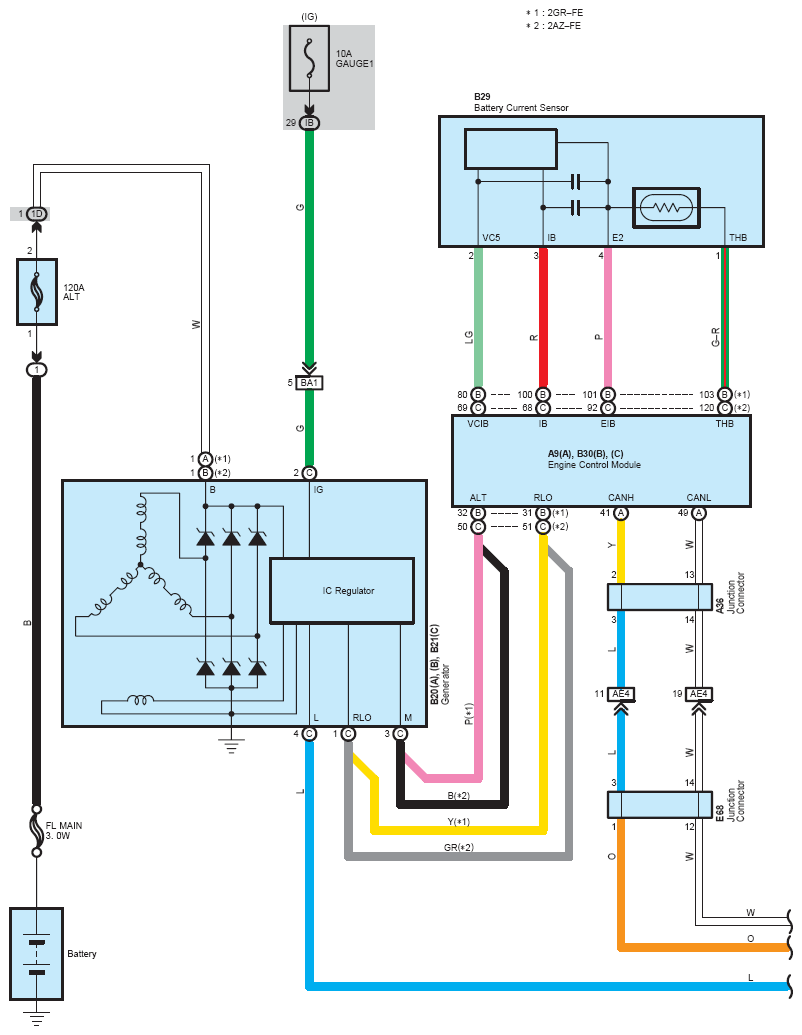

Fig 1: Charging Without Trailer Towing System Wiring Diagram (1 Of 2)
G08795386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

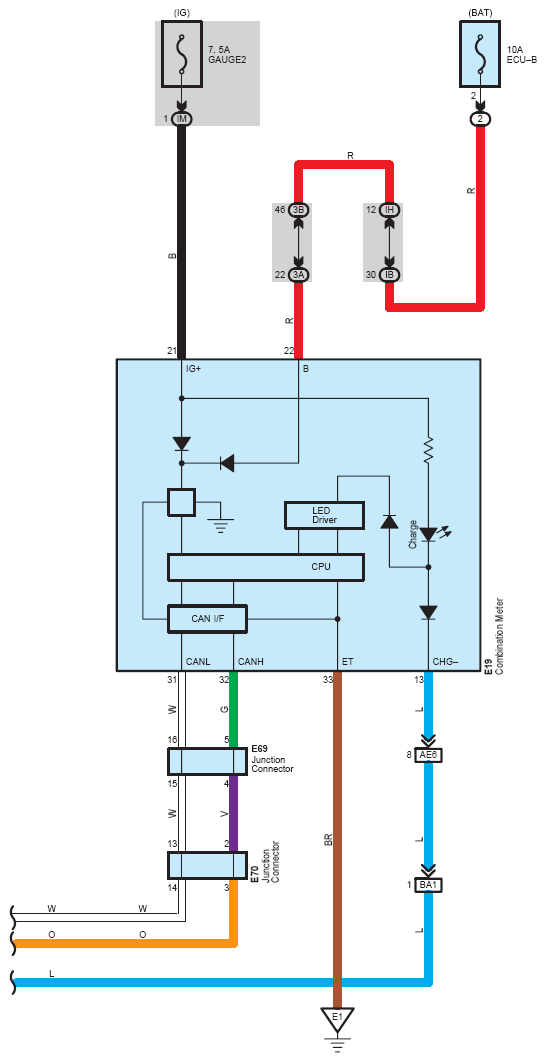

Fig 2: Charging Without Trailer Towing System Wiring Diagram (2 Of 2)
G08795387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
