Stereo Component Amplifier Power Source Circuit: Wiring Diagram

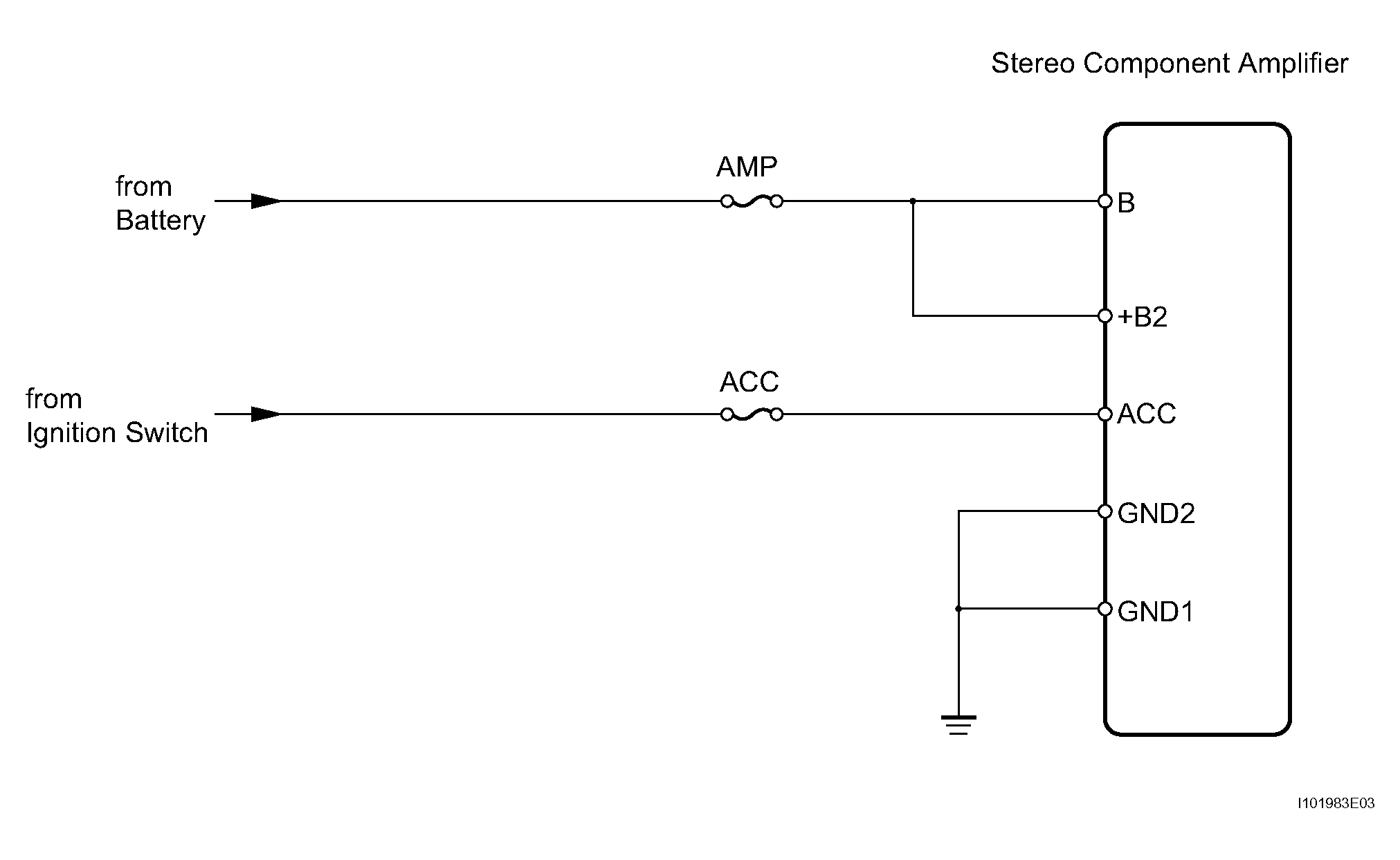

Fig 1: Stereo Component Amplifier Power Source Circuit - Wiring Diagram

G04491245

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
