Inspection Procedure

1. Check if the component shown by sub-code is displayed in the check result of the other components.
   1. Check if "01-DC" is output for the other components.
   2. If "01-DC" is output for any other components, check if the same physical address is displayed.

      Result

      RESULT



      Result	Proceed to
      "01-DC" is output and the same physical address is displayed	A
      "01-DC" is not output or the same physical address is not displayed	B

      HINT:

      For the list of the components shown by sub-codes, refer to the table in the next step.

B: Go to step   4

A: Go TO NEXT STEP.

1. Enter the diagnostic mode.

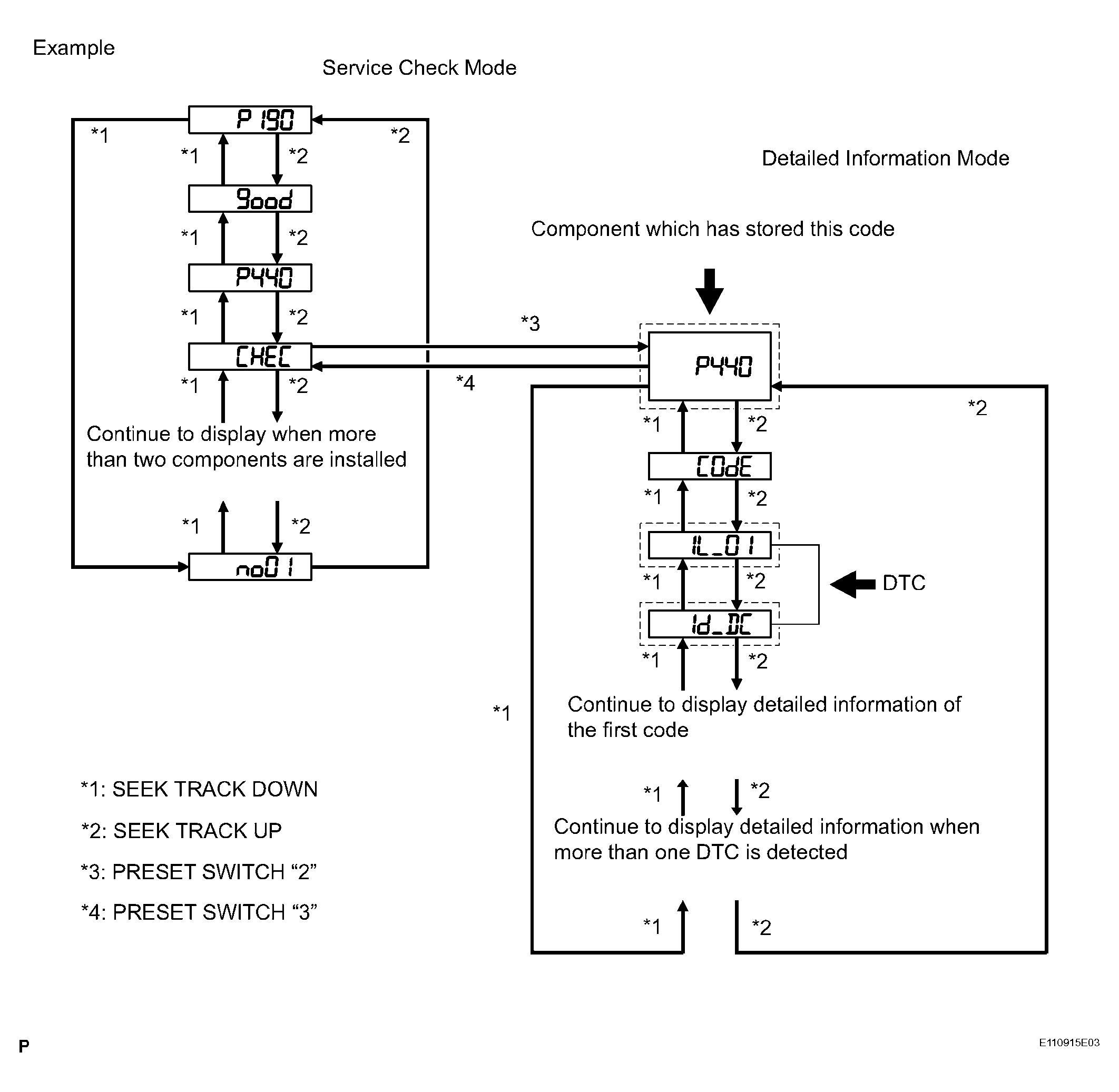

   Fig 1: Service Check Mode Diagnosis Procedure (Example)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Press the preset switch "2" to change to "Detailed Information Mode".
3. Identify the component which has stored this code.

   Component table

   COMPONENT REFERENCE CHART



   Component	Physical address
   Stereo component amplifier	440
   Television display assembly	1B0
   Radio receiver	190

   HINT:

   • "440 (Stereo component amplifier)" is the component which has stored this code in the example shown in the illustration.
   • For details of the DTC display, refer to the "DTC CHECK / CLEAR ".

1. Select the component which has stored this code.

   Component table

   COMPONENT REFERENCE CHART



   Component	Proceed to
   Stereo component amplifier	Stereo component amplifier communication error
   Television display assembly	Television display assembly communication error
   Radio receiver	Radio receiver communication error

END

1. Clear the DTC (see DTC CHECK / CLEAR ).

   HINT:

   If "01-DC" is output for only one component, this may not indicate a malfunction.

1. Recheck the DTC and check if the same trouble code occurs again.

   OK: Malfunction disappears.

NG: Go to step   3

OK: END
