DTC P0571/52 Stop Light Switch Circuit: Wiring Diagram

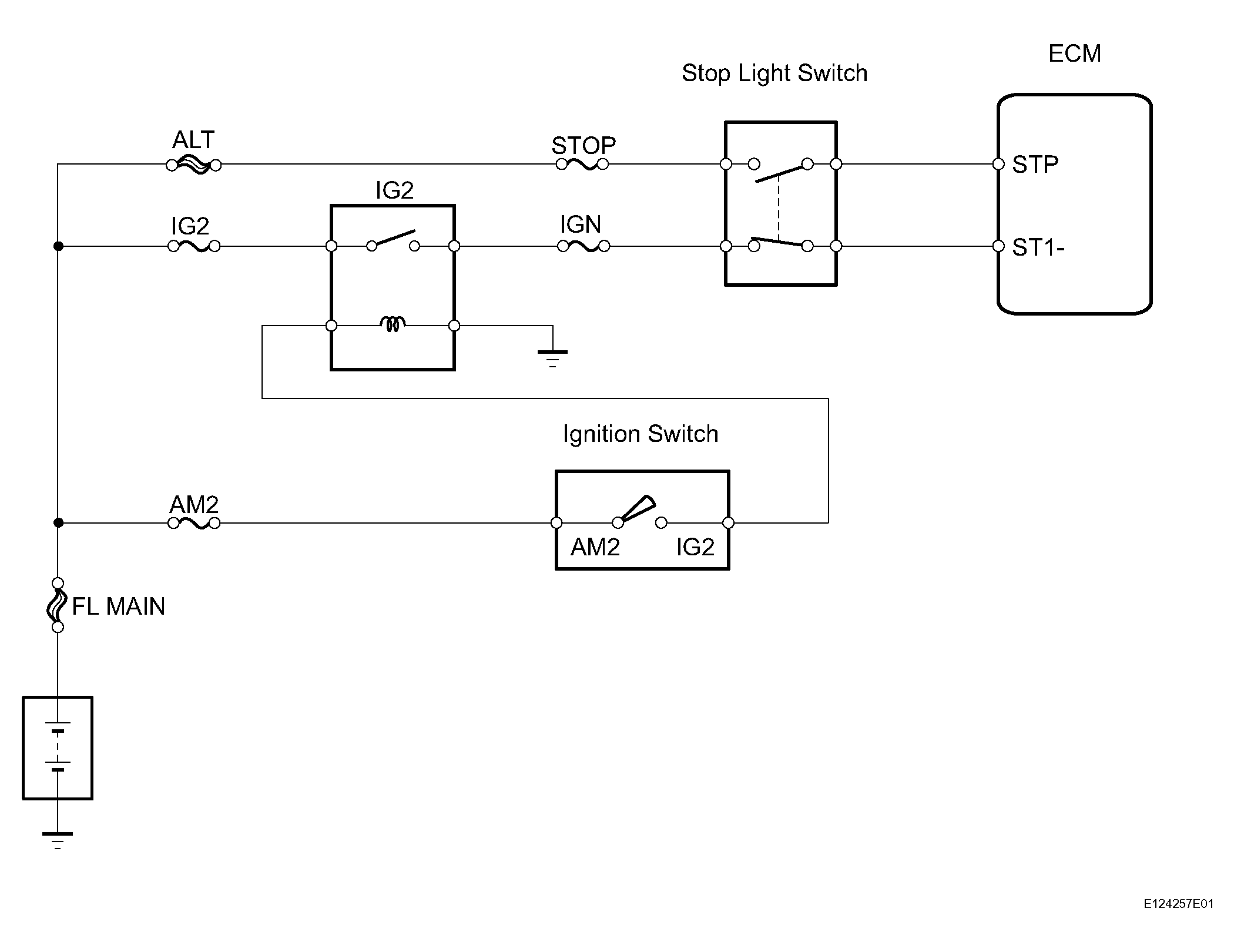

Fig 1: Stop Light Switch Circuit Diagram

G04490703

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
