VC Output Circuit: Wiring Diagram

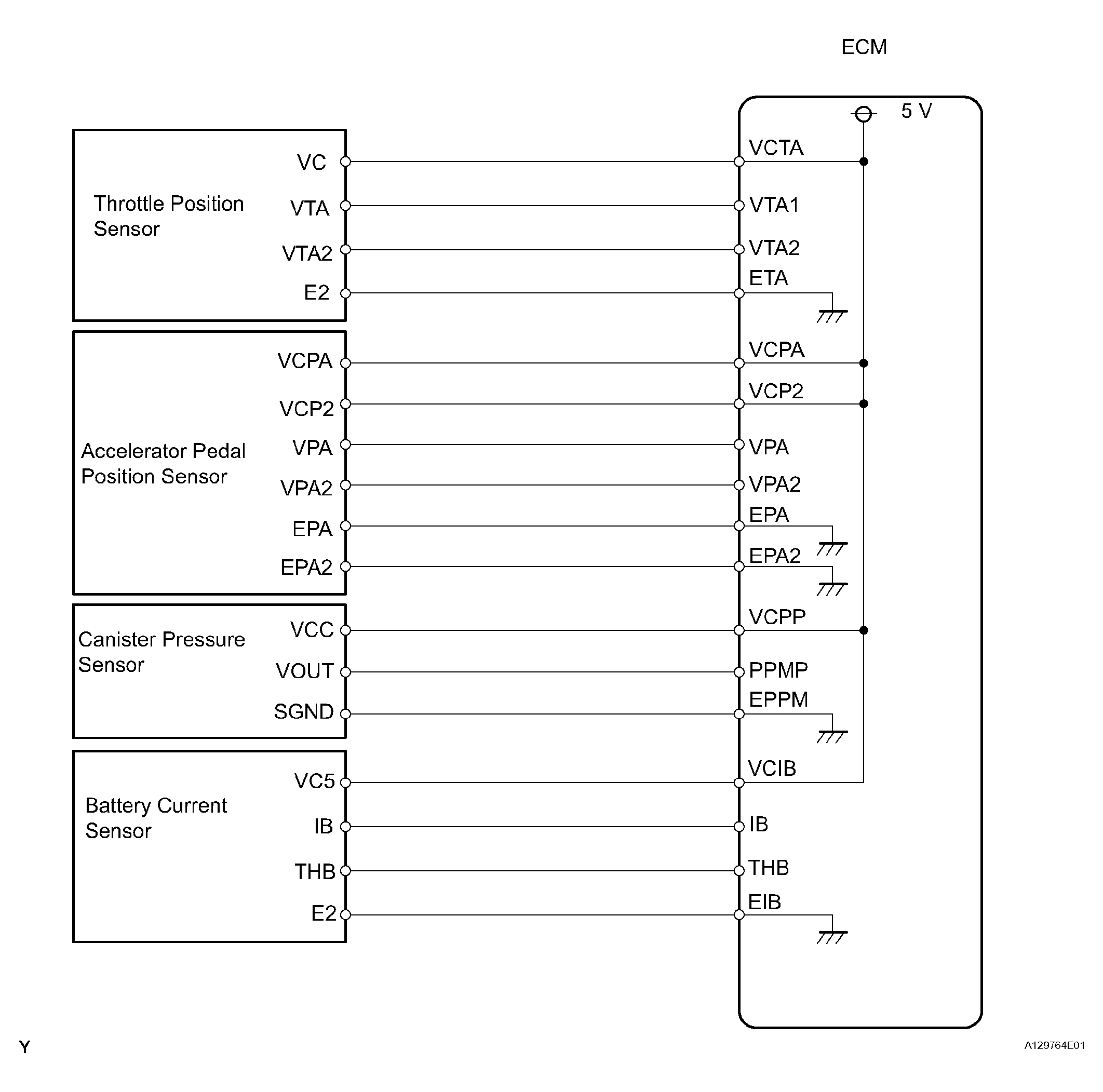

Fig 1: VC Output Circuit - Wiring Diagram

G04484060

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
