Toyota
>>
2006
>>
RAV4 Base, 2.4 D, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System (2AZ-FE)
>>
SFI System
>>
Parts Location
Parts Location

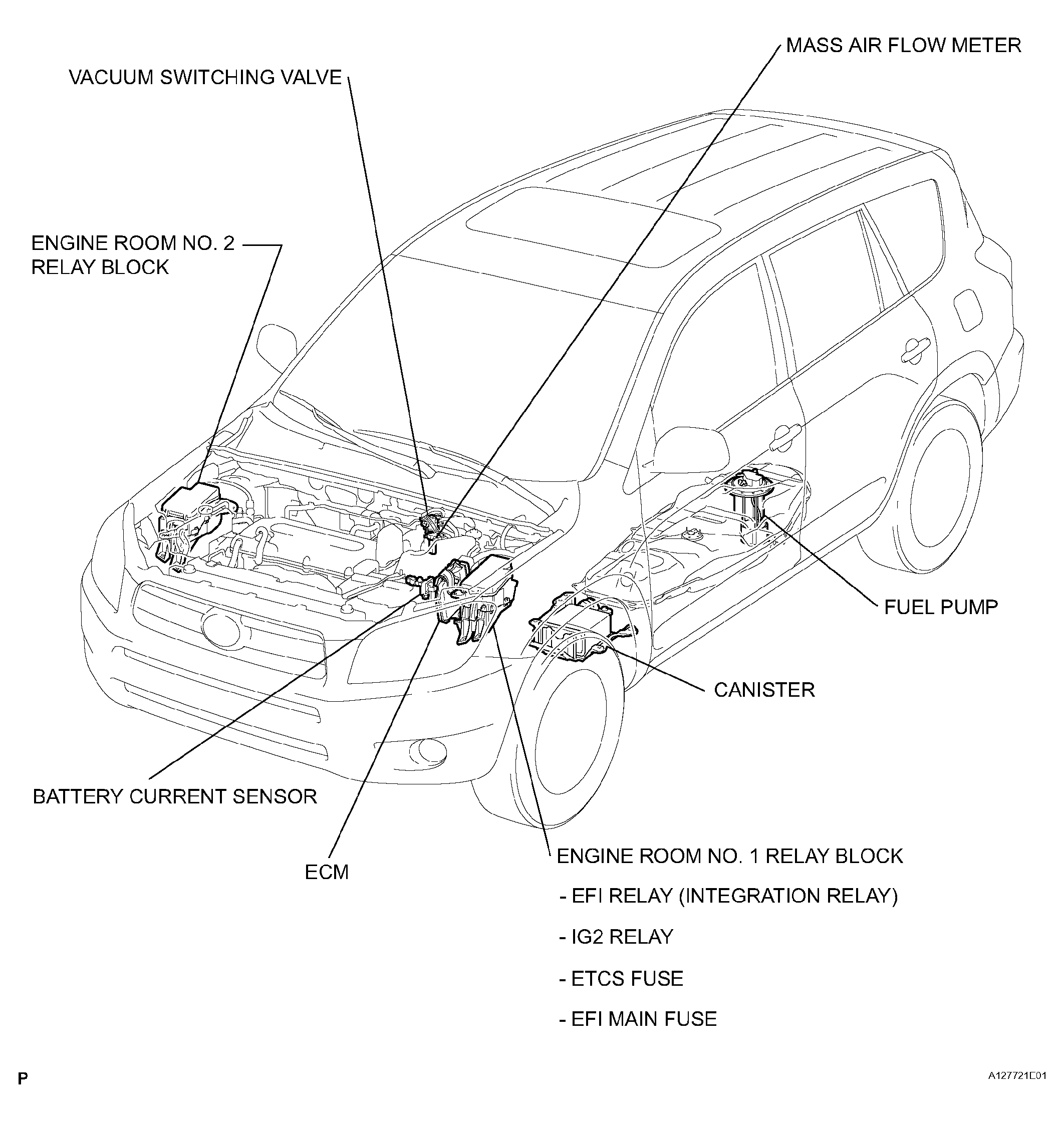

Fig 1: Identifying 2AZ-FE Engine Control System Parts Location (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

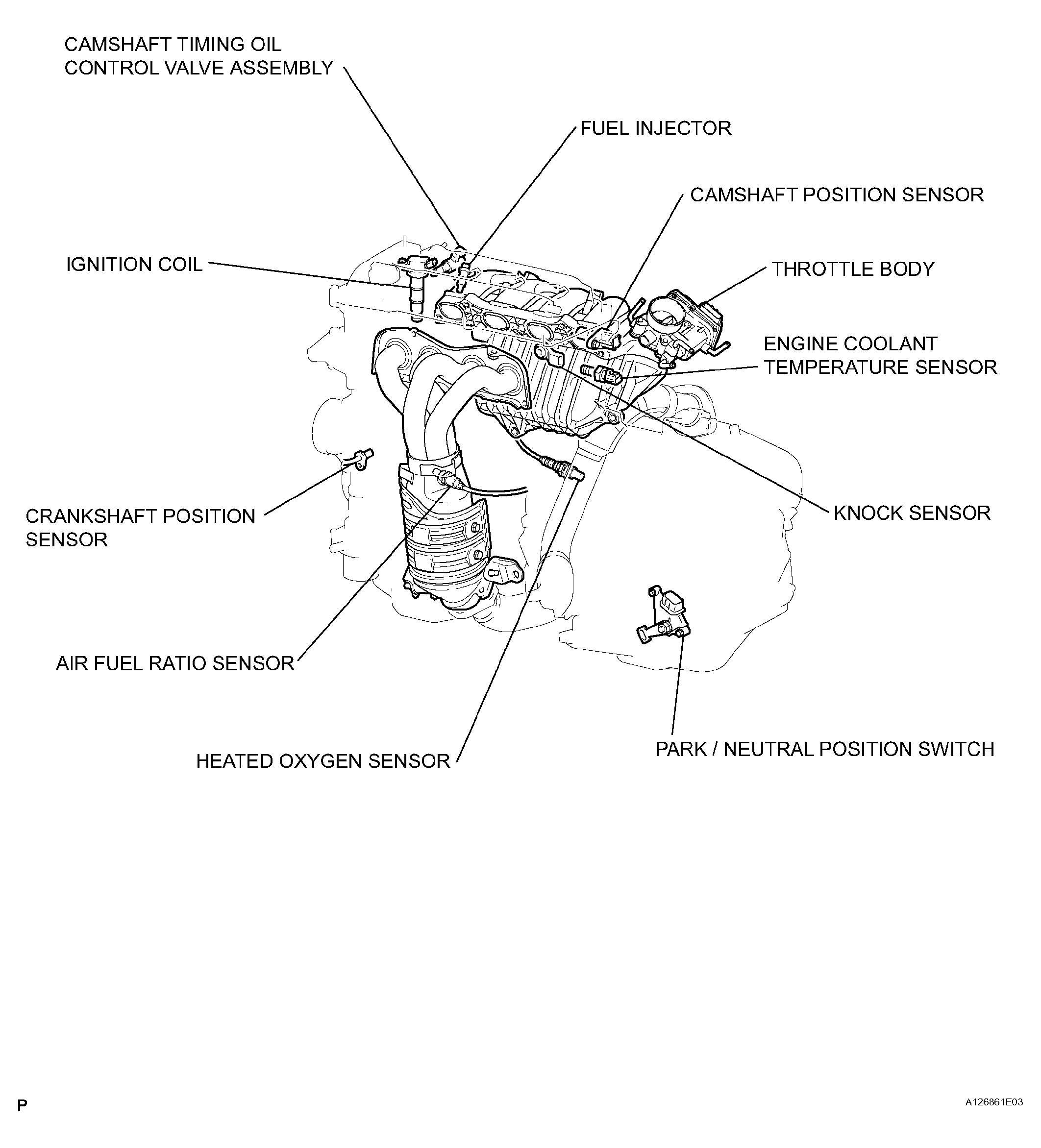

Fig 2: Identifying 2AZ-FE Engine Control System Parts Location (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

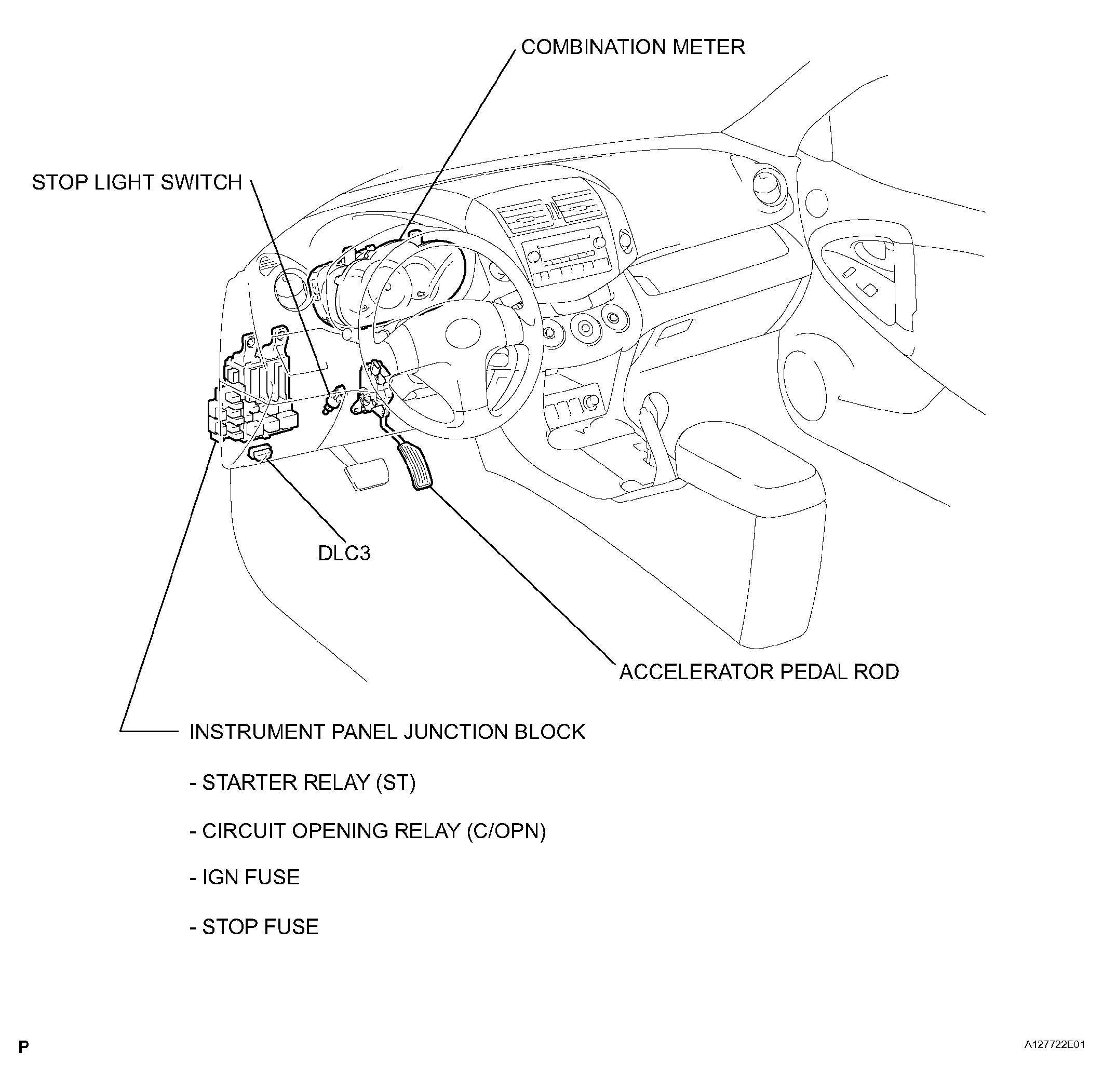

Fig 3: Identifying 2AZ-FE Engine Control System Parts Location (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
