Camshaft Timing Oil Control Valve Assembly: Installation

INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
1. Apply a light coat of engine oil to the O-ring of the oil control valve.

  Fig 1: Applying Light Coat Of Engine Oil To O-Ring Of Oil Control Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the oil control valve with the bolt.
  Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

  NOTE: Make sure that the O-ring is not cracked or jammed.
3. Connect the oil control valve connector.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK FOR ENGINE OIL LEAKS
1. Start the engine, and check that there are no oil leaks.

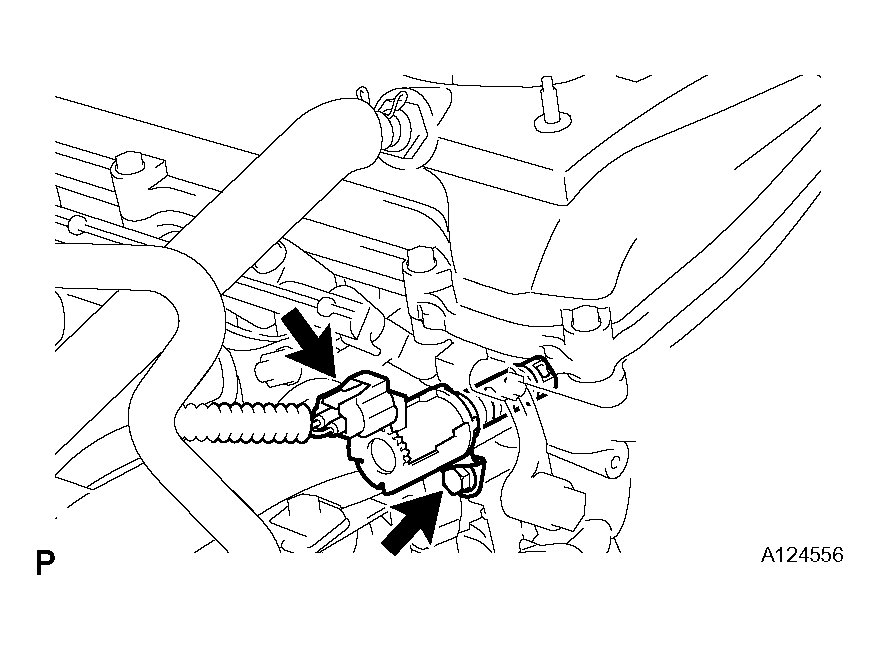

  Fig 2: Installing Oil Control Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 ENGINE COVER (See INSTALLATION )
