Key-off Operation Function Operates even if Operating Conditions are not Satisfied: Wiring Diagram

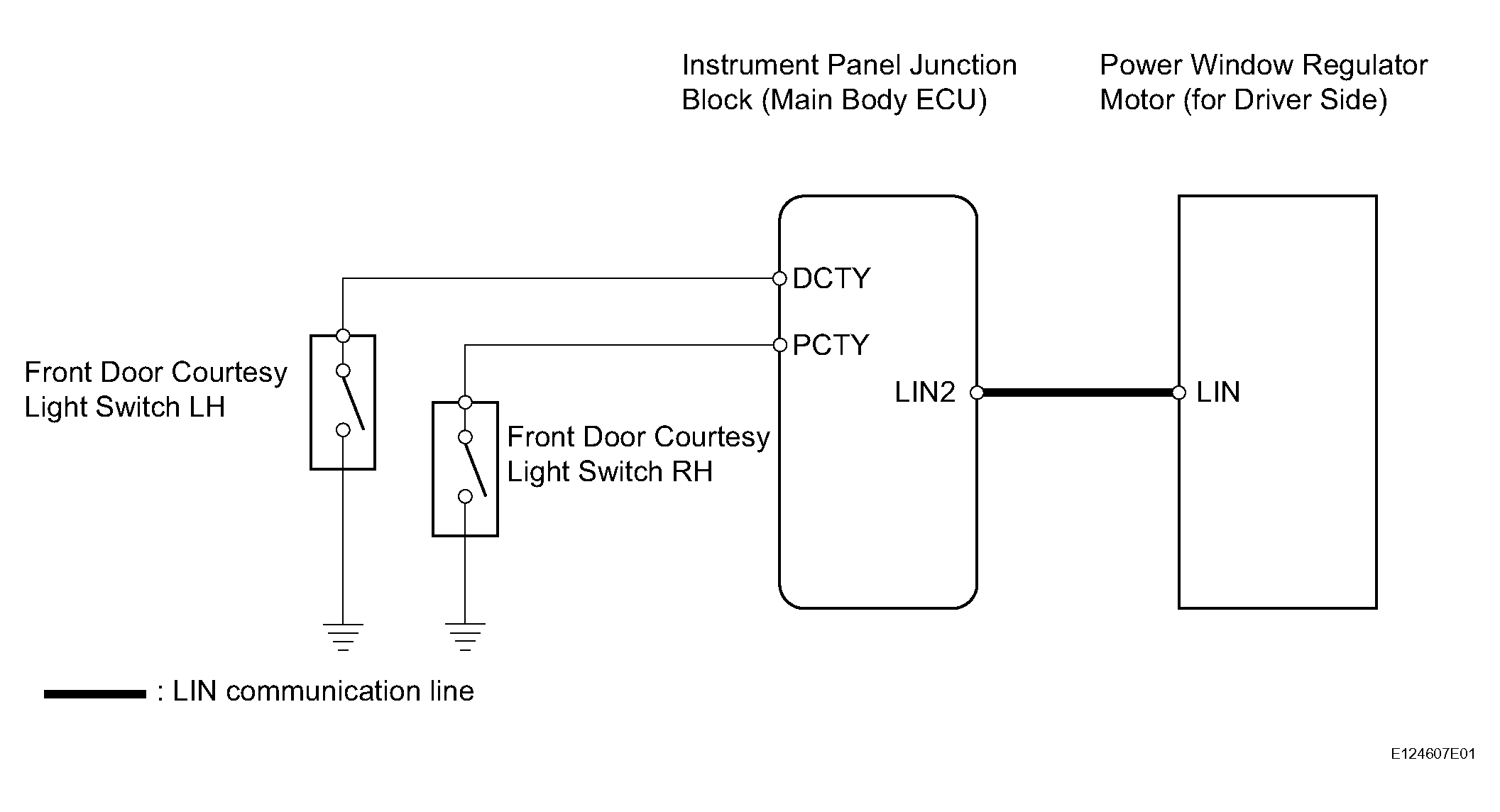

Fig 1: Key-Off Operation Function - Wiring Diagram

G04491409

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
