Home >> Toyota >> 2006 >> Prius >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Oil Pump Drive Shaft >> Components

Oil Pump Drive Shaft: Components

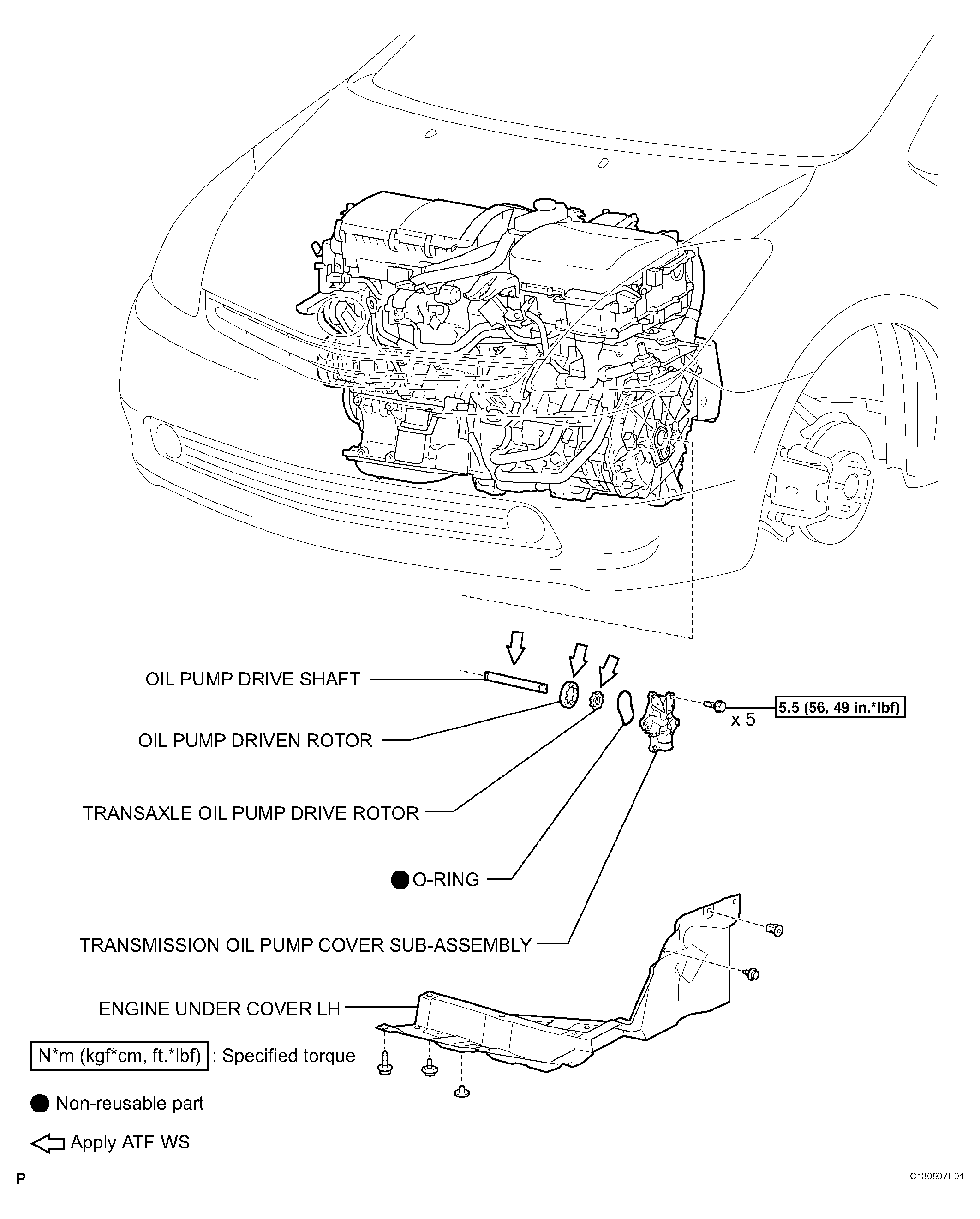

Fig 1: Oil Pump Drive Shaft Replacement Components With Torque Specifications
G04474306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
