Differential Drive Pinion: Reassembly

INSTALL COUNTER DRIVE GEAR RADIAL BALL BEARING
1. Using SST and a press, press in the bearing to the differential drive pinion.
  SST 09608-06041

  Fig 1: Installing Counter Drive Gear Radial Ball Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a press, press in the bearing to the differential drive pinion.
  SST 09608-06041, 09950-60010 (09951-00370)

  Fig 2: Installing Bearing To Differential Drive Pinion Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Set the differential drive pinion in a vise and tighten a new nut using a deep socket wrench.
  Torque: 280 N*m (2,860 kgf*cm, 207 ft.*lbf)

  HINT:

  Set the vise as shown in the illustration.

  Fig 3: Setting Differential Drive Pinion In Vise
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

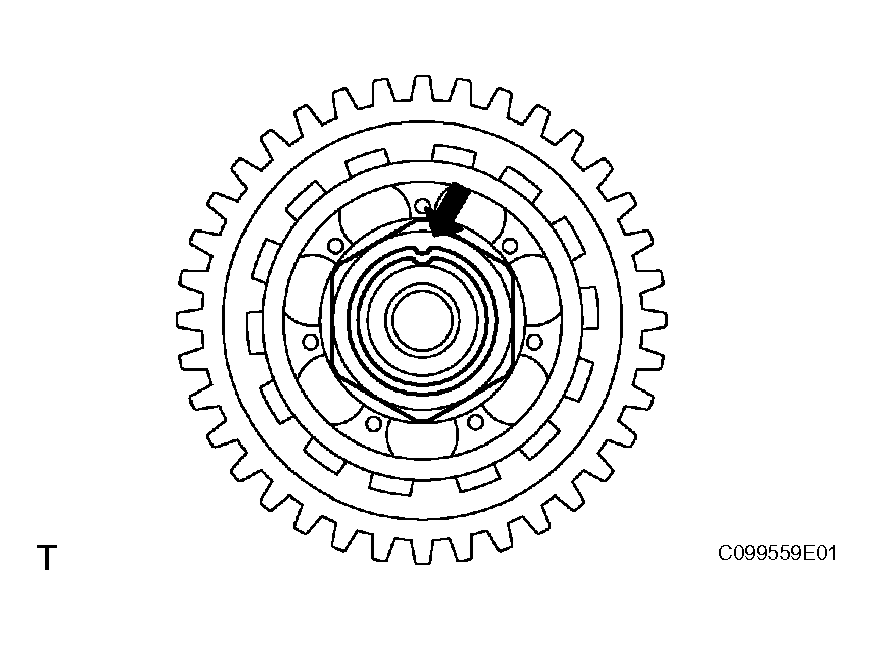

4. Stake the nut.

  Fig 4: Staking Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
