Home >> Toyota >> 2006 >> Prius >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Differential Case >> Components

Differential Case: Components

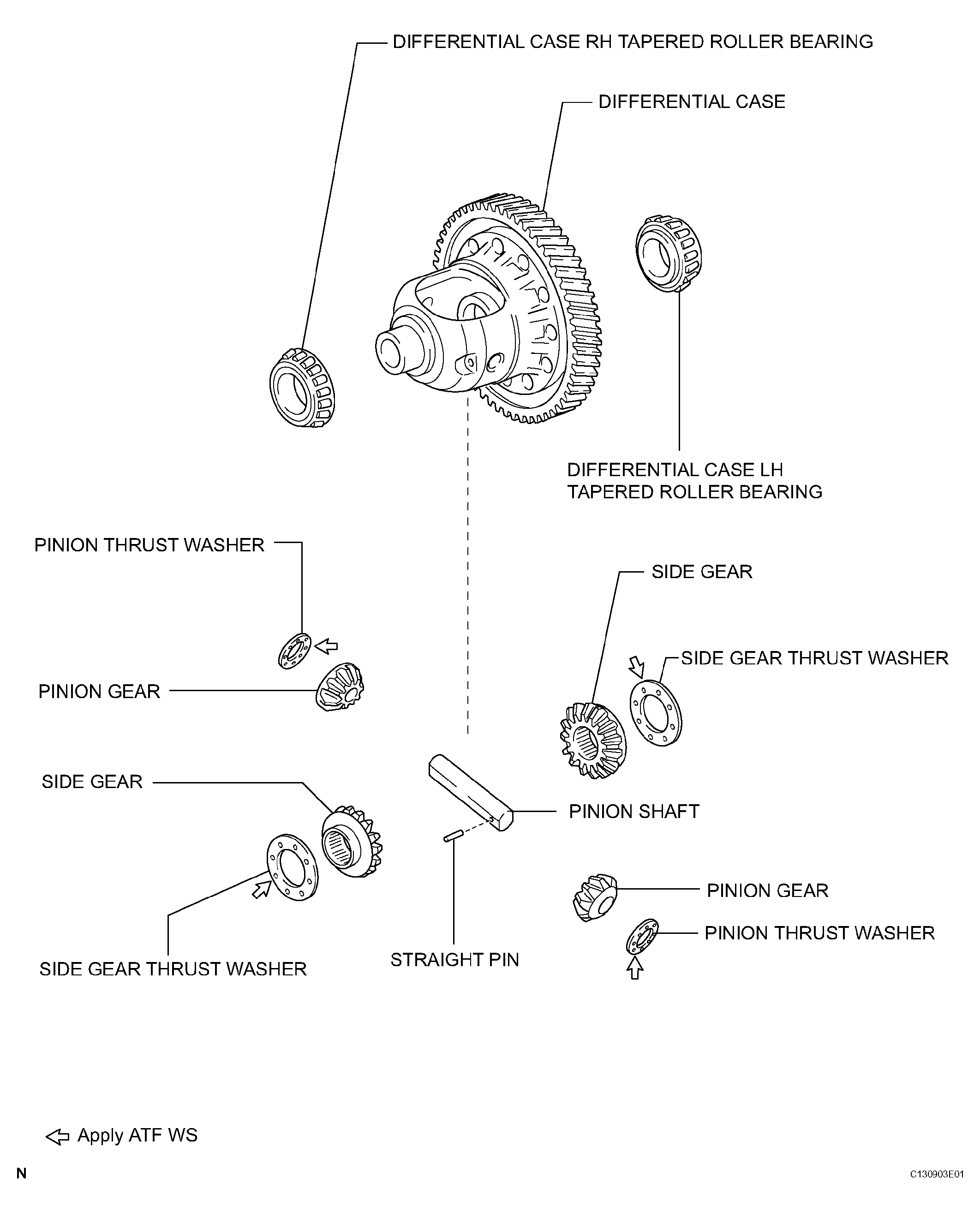

Fig 1: Identifying Differential Case Components
G04474275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
