System Main Relay: Components

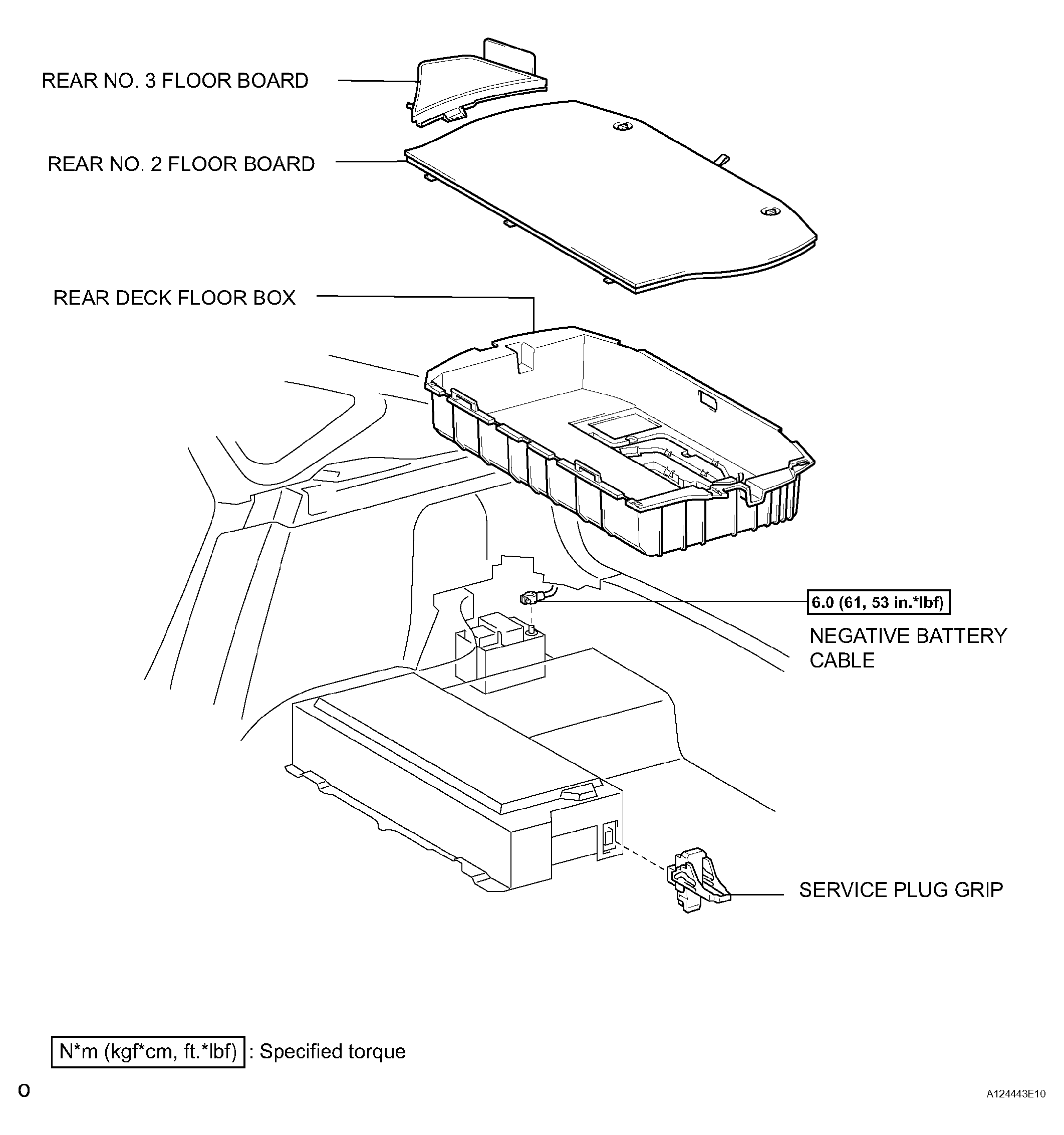

Fig 1: Identifying System Main Relay Components (1 Of 4)
G04473961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

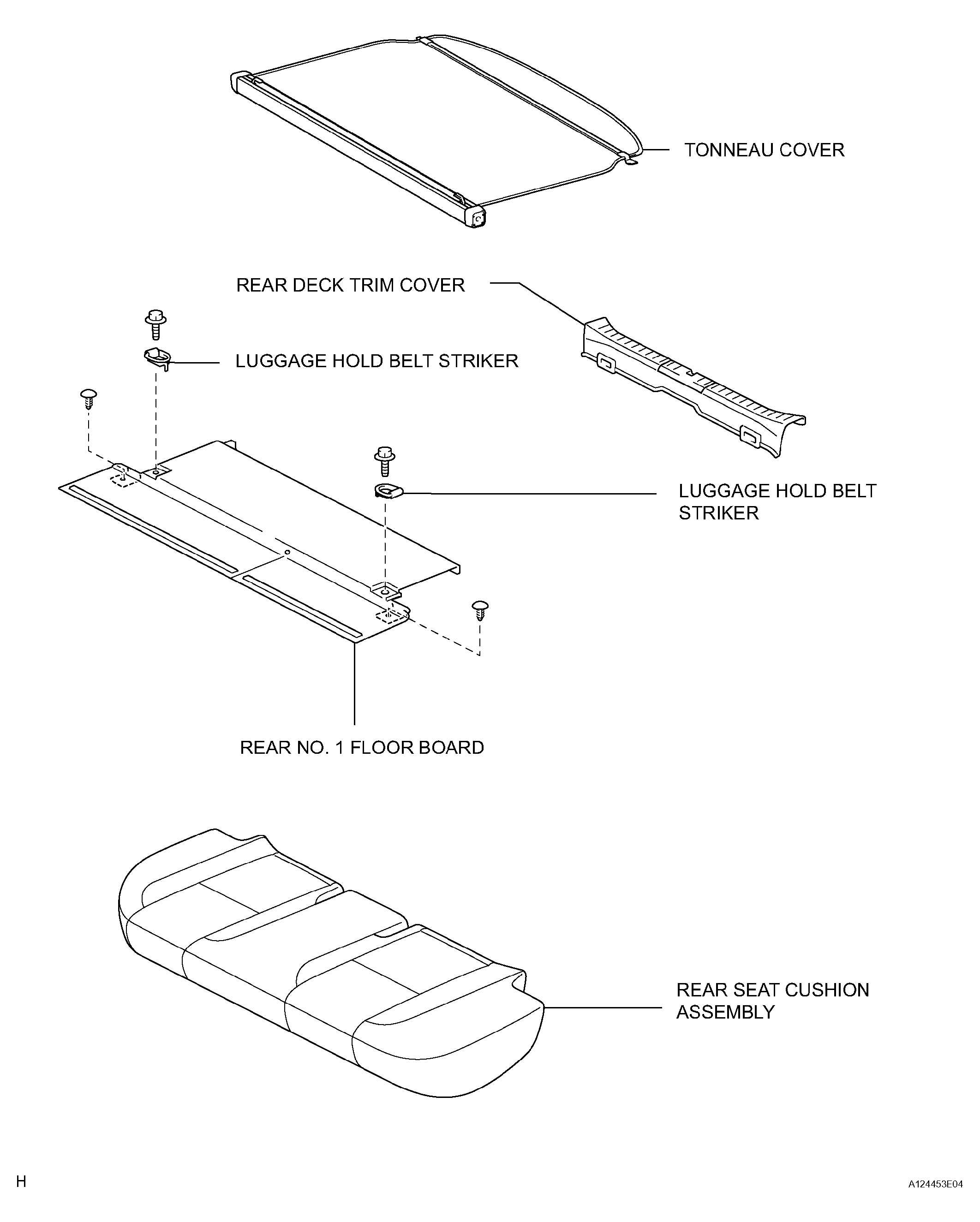

Fig 2: Identifying System Main Relay Components (2 Of 4)
G04473962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

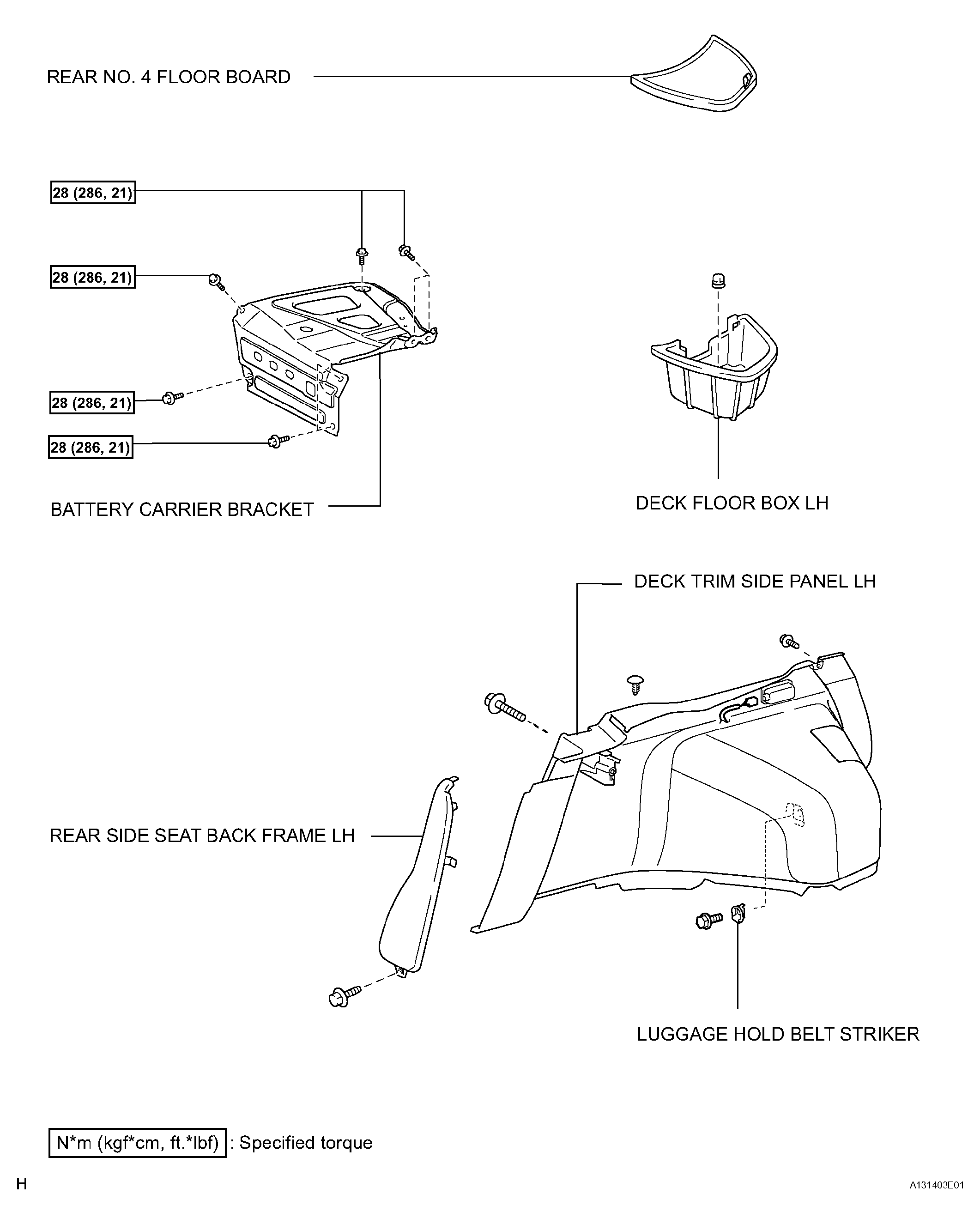

Fig 3: Identifying System Main Relay Components (3 Of 4)
G04473963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

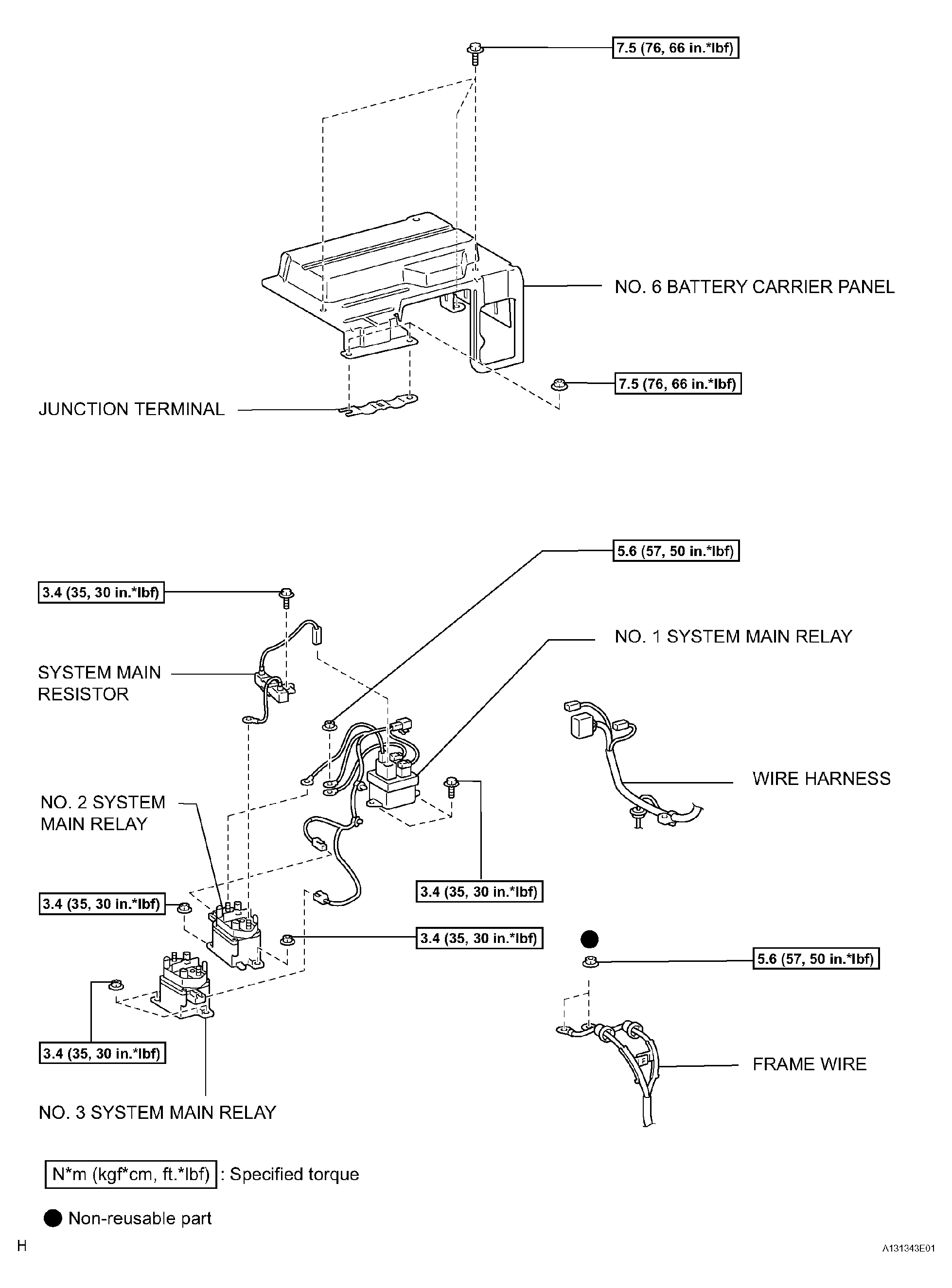

Fig 4: Identifying System Main Relay Components (4 Of 4)
G04473964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
