Frame Wire: Components

Fig 1: Identifying Frame Wire Components (1 Of 2)
G04473941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

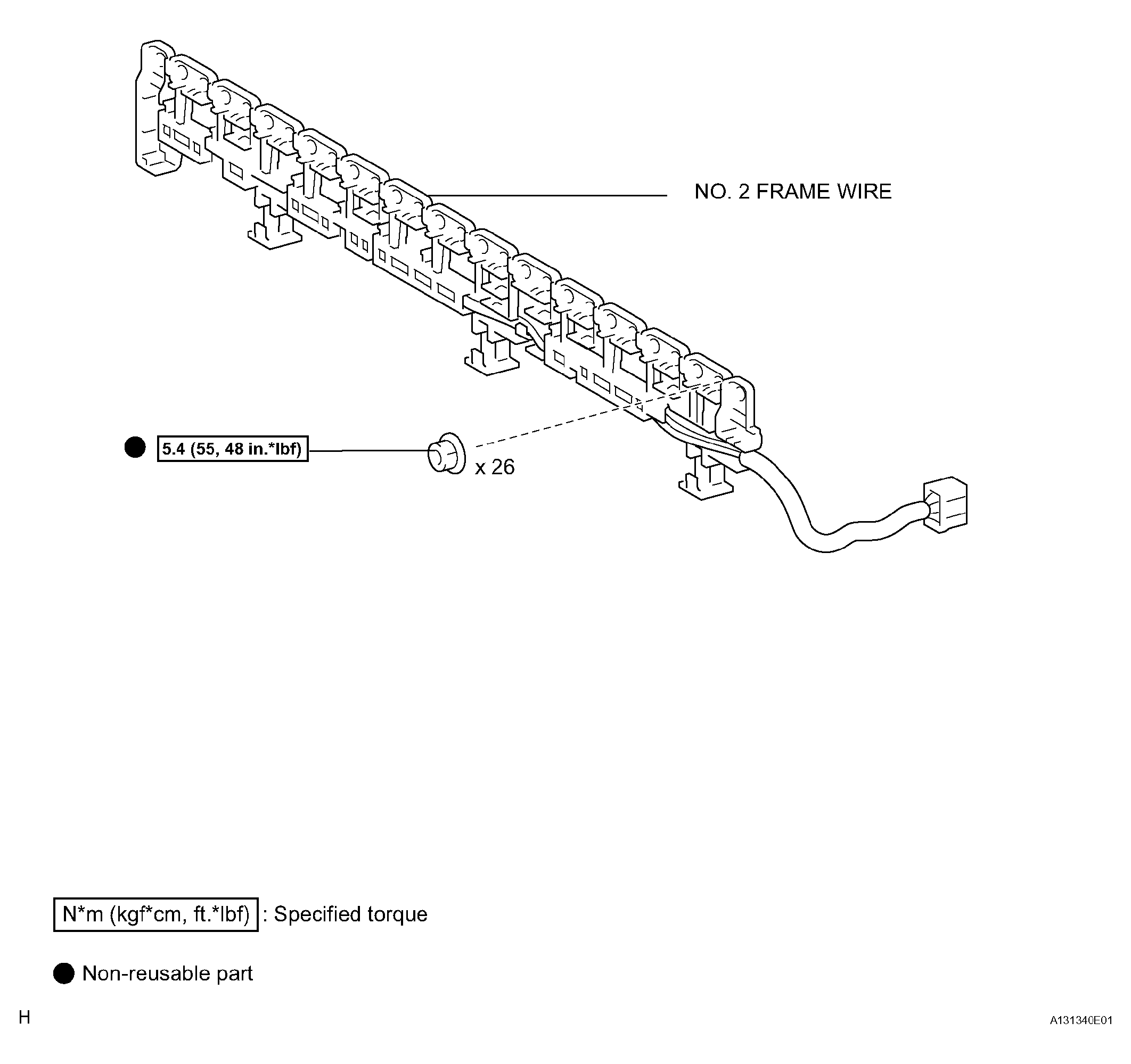

Fig 2: Identifying Frame Wire Components (2 Of 2)
G04473942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
