Battery Ecu: Components

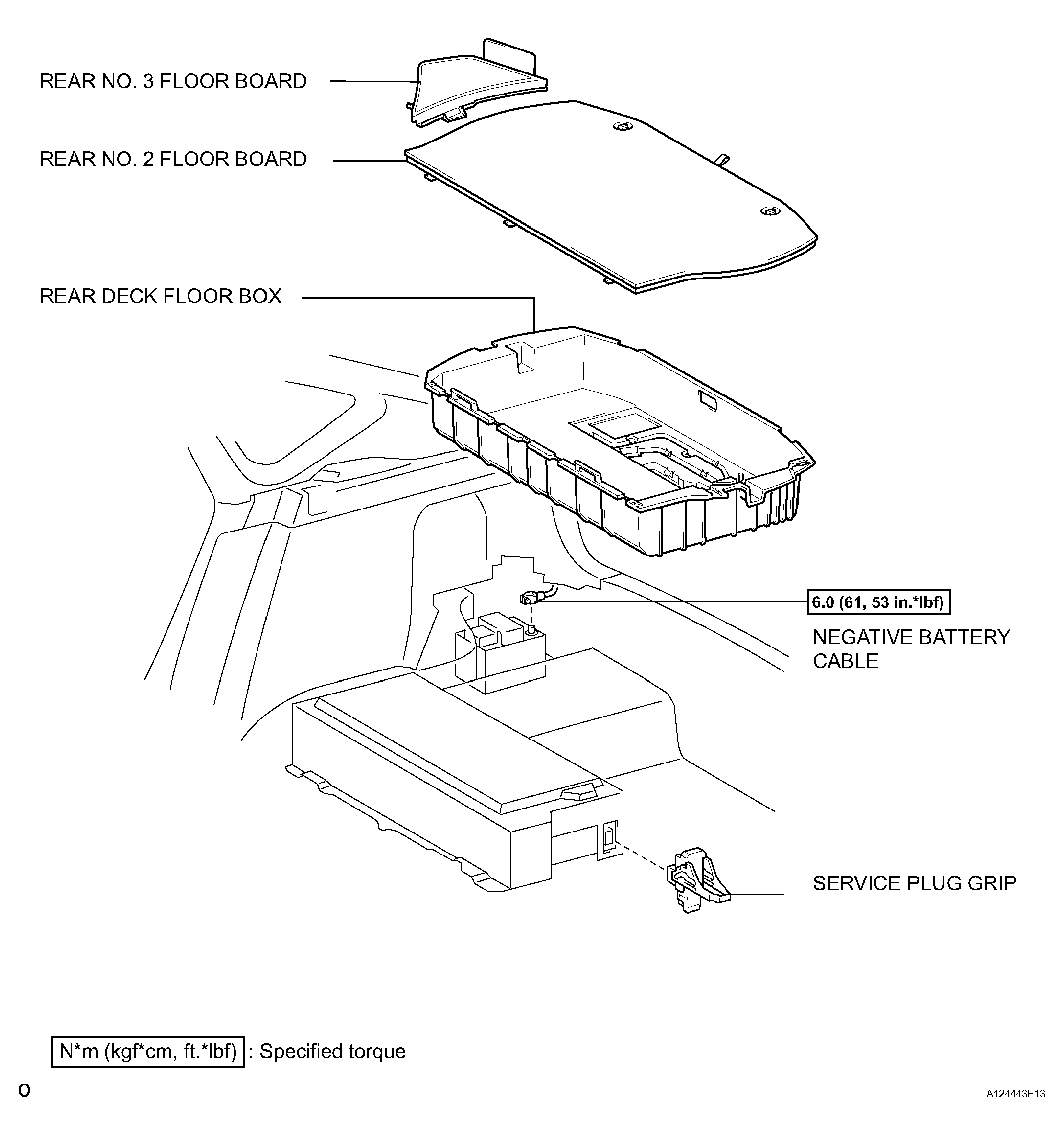

Fig 1: Identifying Battery ECU Components (1 Of 3)
G04473998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

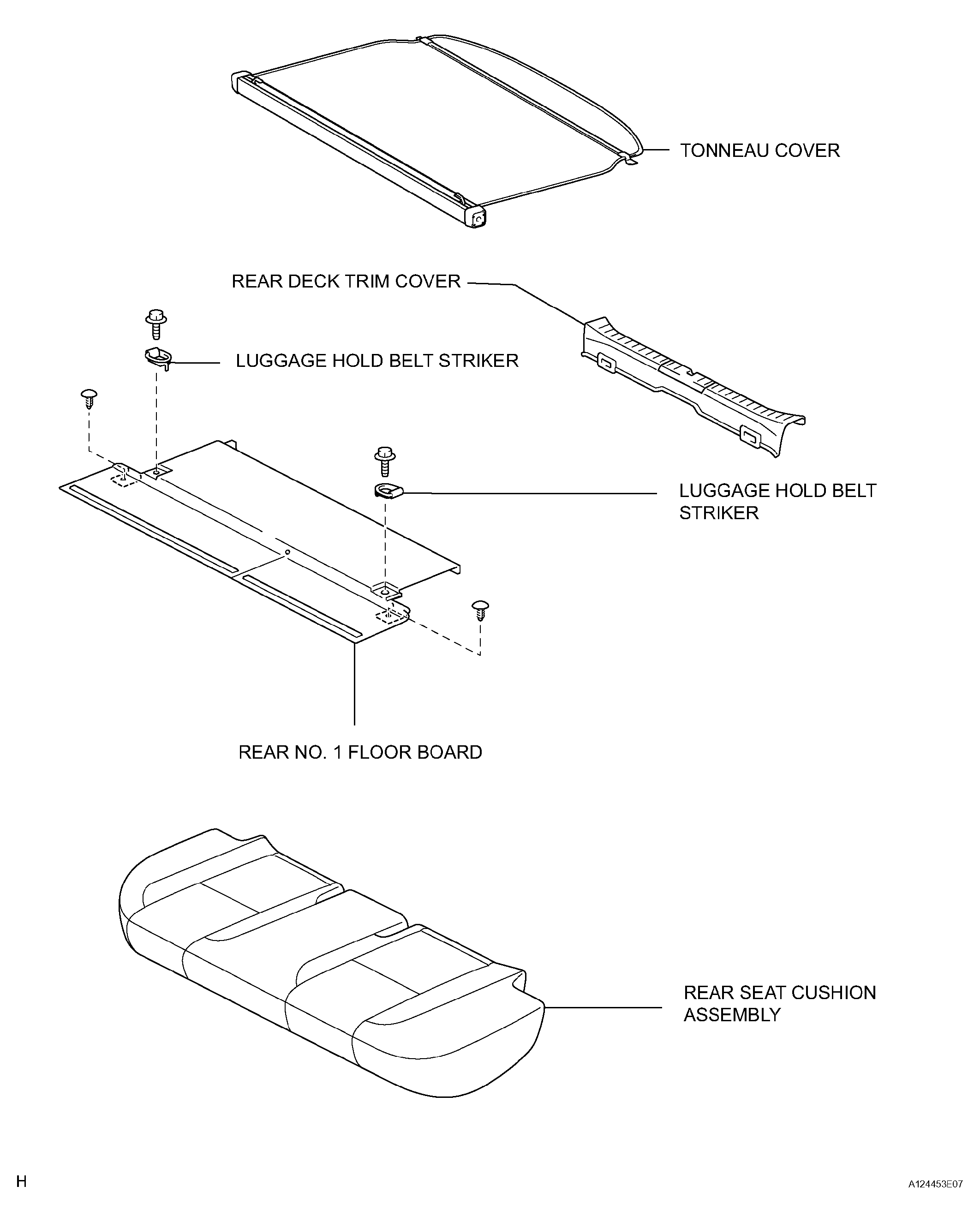

Fig 2: Identifying Battery ECU Components (2 Of 3)
G04473999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

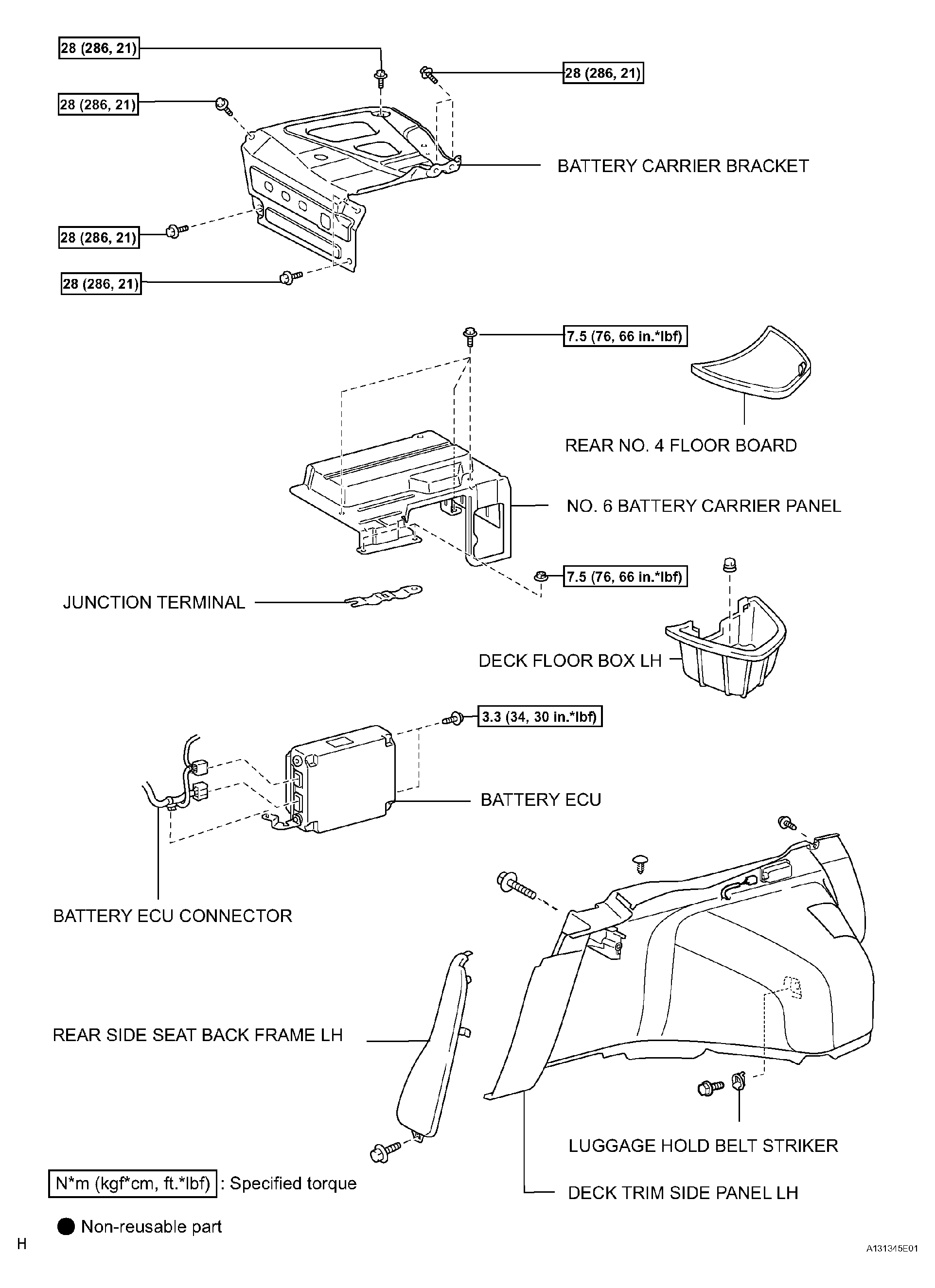

Fig 3: Identifying Battery ECU Components (3 Of 3)
G04474000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
