Battery Blower: Components

Fig 1: Identifying Battery Blower Components (1 Of 3)
G04474014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Battery Blower Components (2 Of 3)
G04474015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

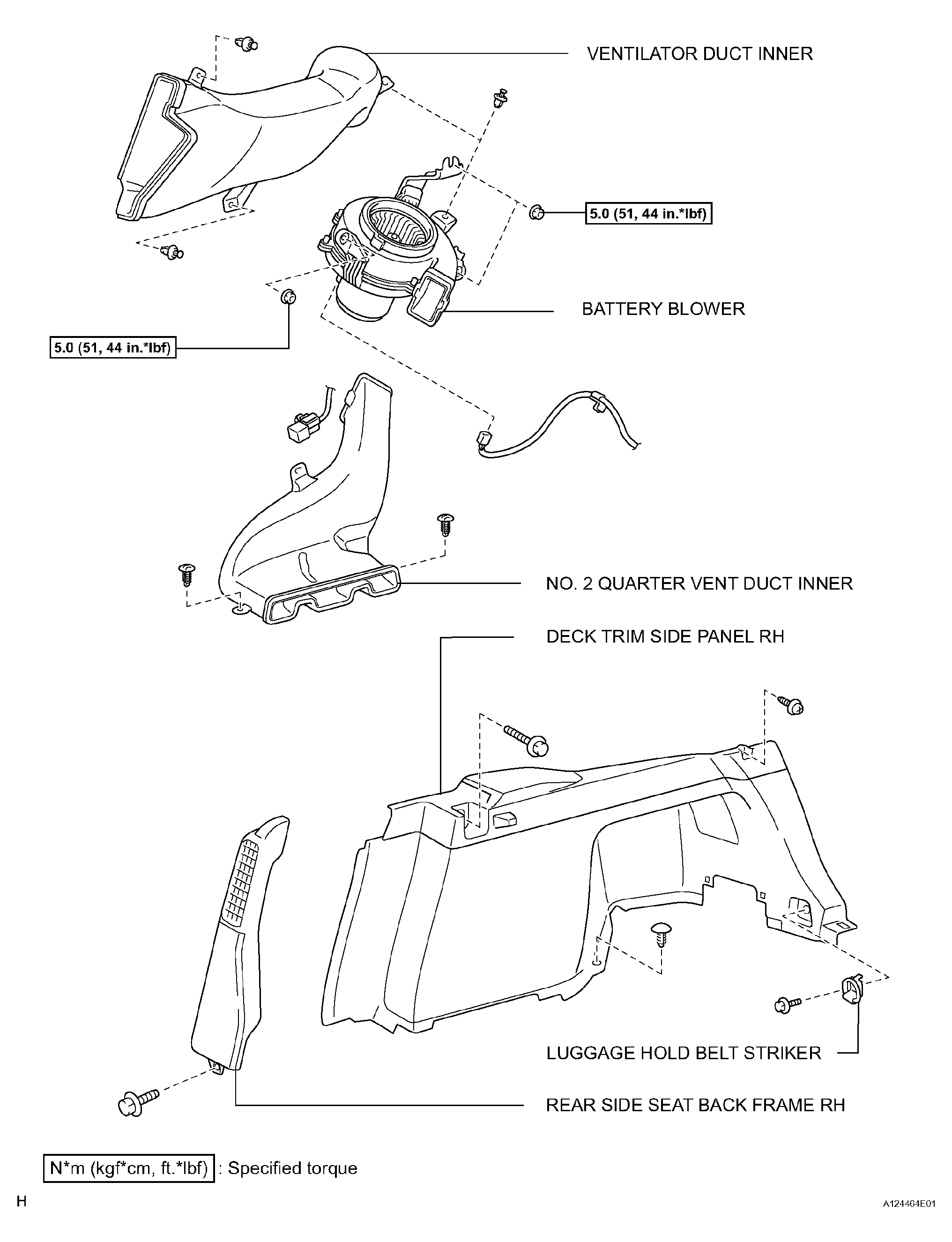

Fig 3: Identifying Battery Blower Components (3 Of 3)
G04474016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
