Crankshaft Position Sensor: Components

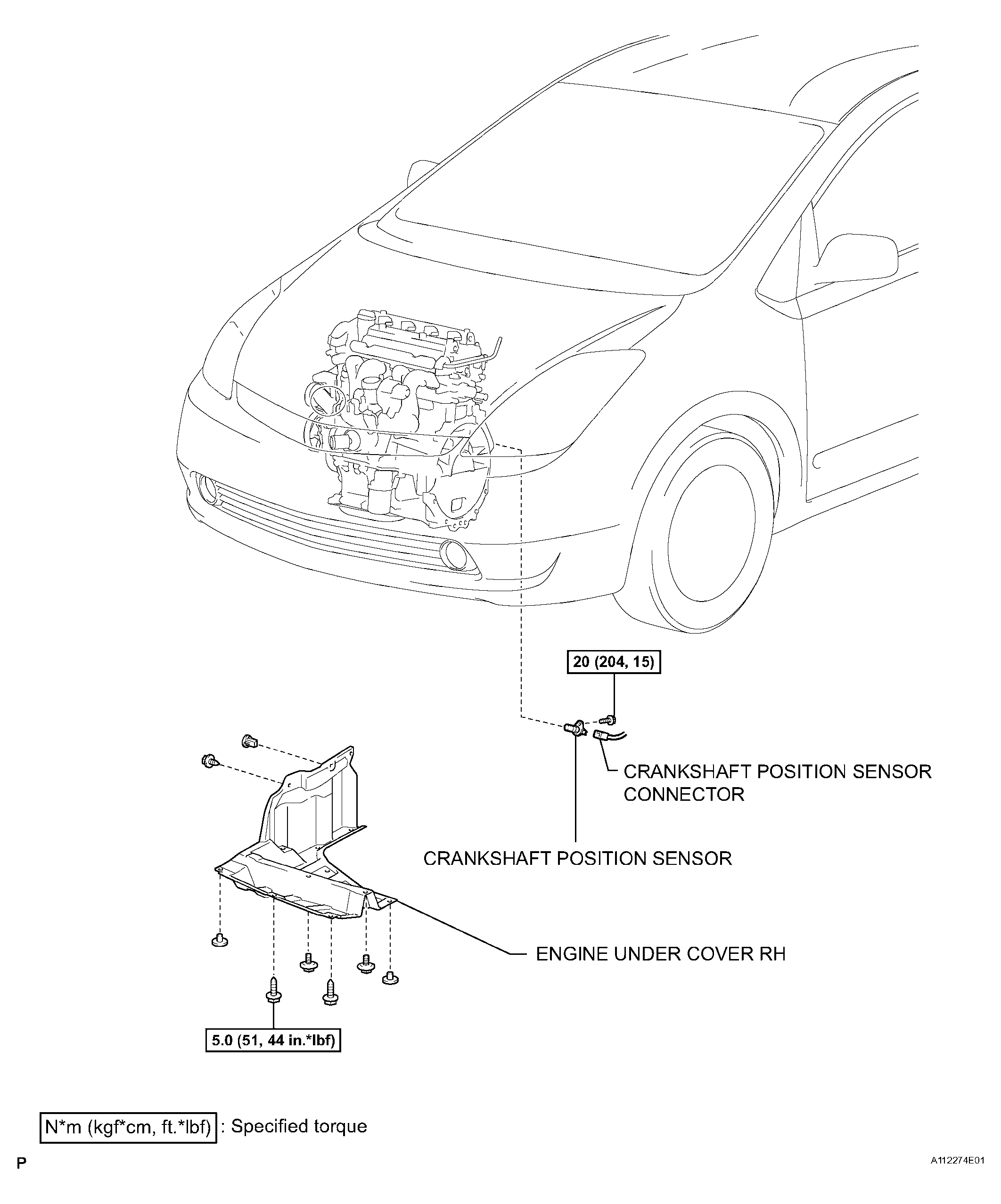

Fig 1: Identifying Crankshaft Position Sensor Components

G04472305

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
