Seat Belt Warning: Notes

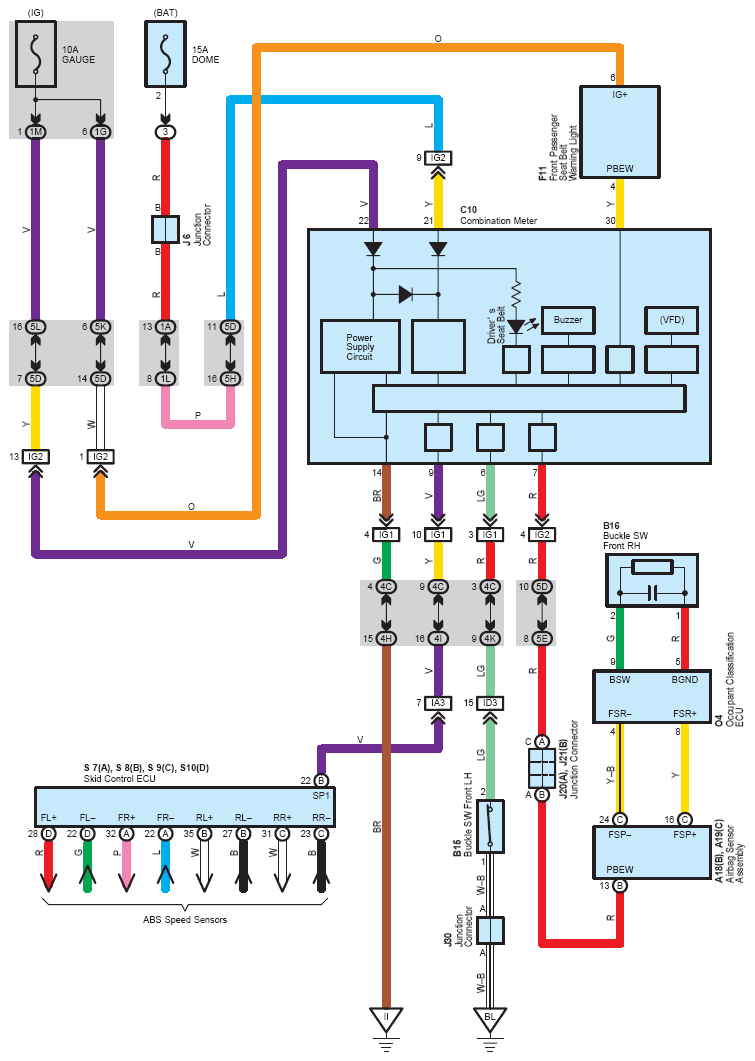

Fig 1: Seat Belt Warning System Wiring Diagram

G08794763

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
