: Ground Points

Code Refer to Ground Points Location
IH : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Cowl Side Panel LH
II : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Instrument Panel Brace LH
IK : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Cowl Side Panel RH

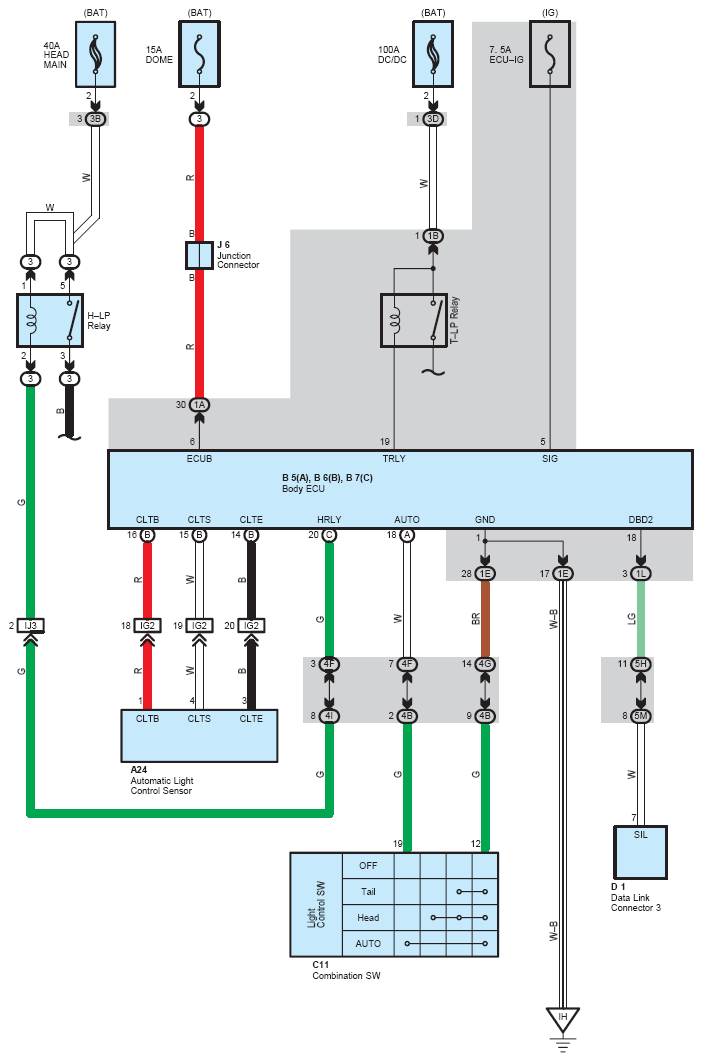

Fig 1: Automatic Light Control System Wiring Diagram
G08794744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Code Refer to Ground Points Location
IH : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Cowl Side Panel LH
