VSC Warning Light Remains ON: Wiring Diagram

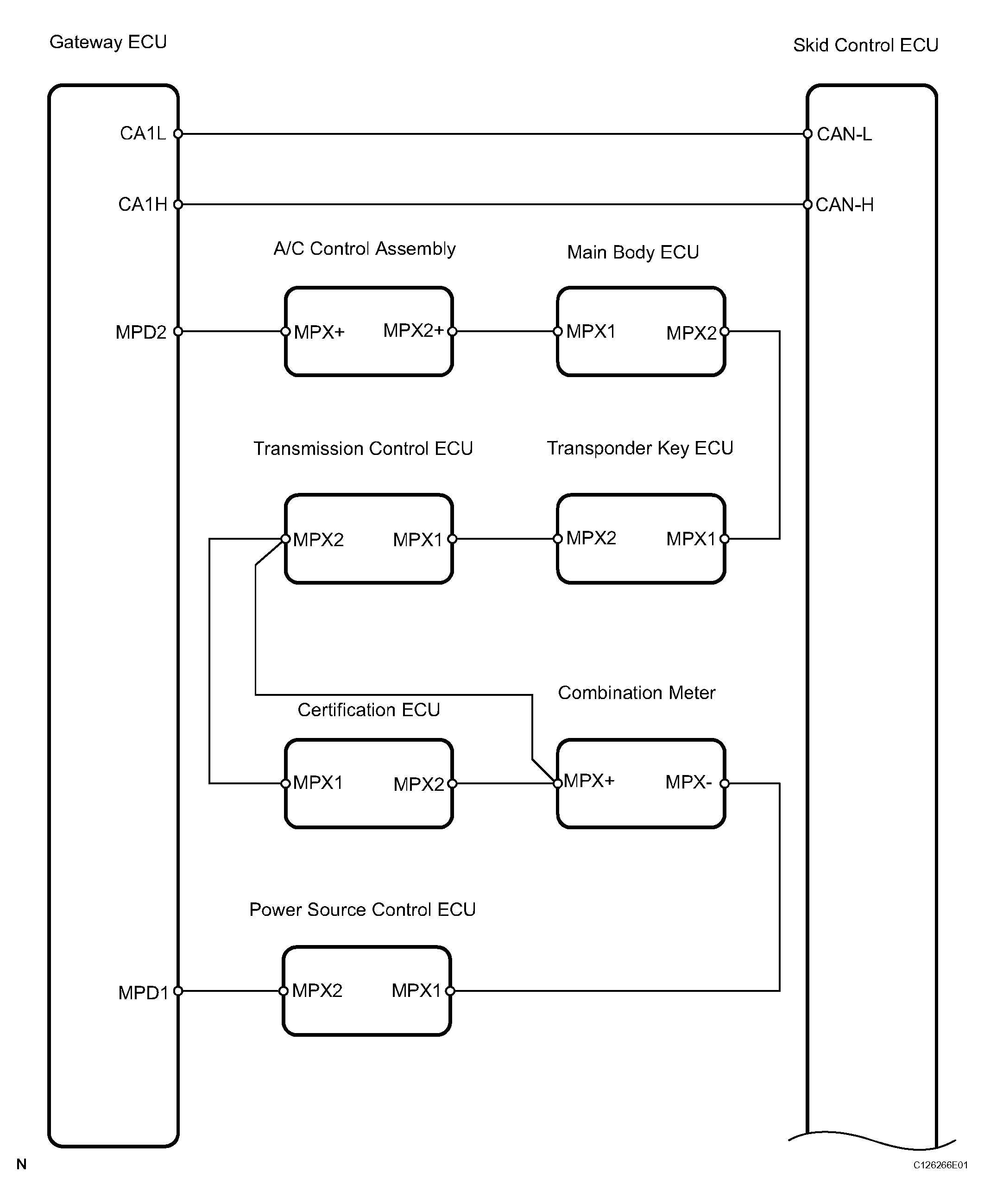

Fig 1: VSC Warning Light Remains On - Wiring Diagram (1 Of 2)
G04474676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

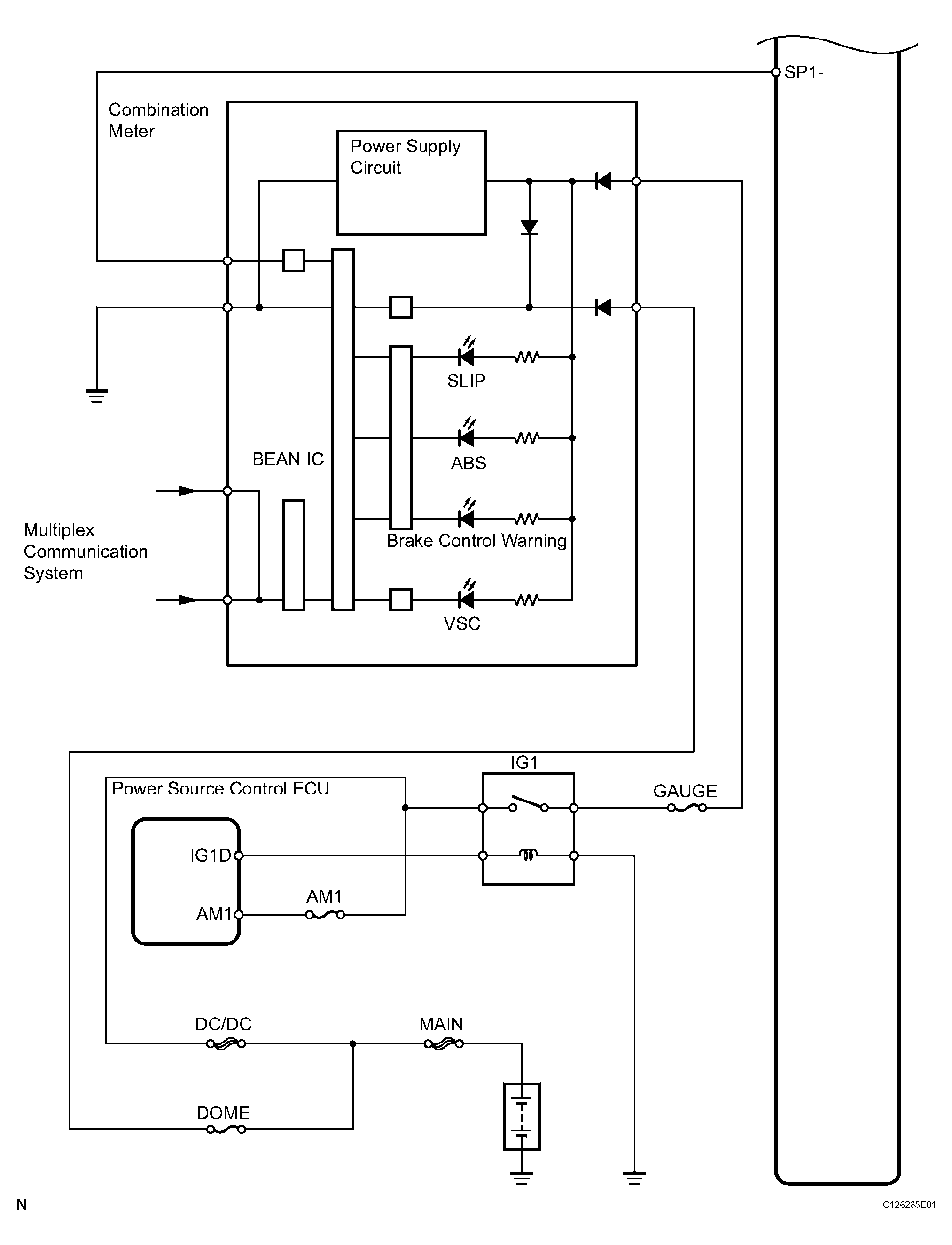

Fig 2: VSC Warning Light Remains On - Wiring Diagram (2 Of 2)
G04474677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
