TC and CG Terminal Circuit: Wiring Diagram

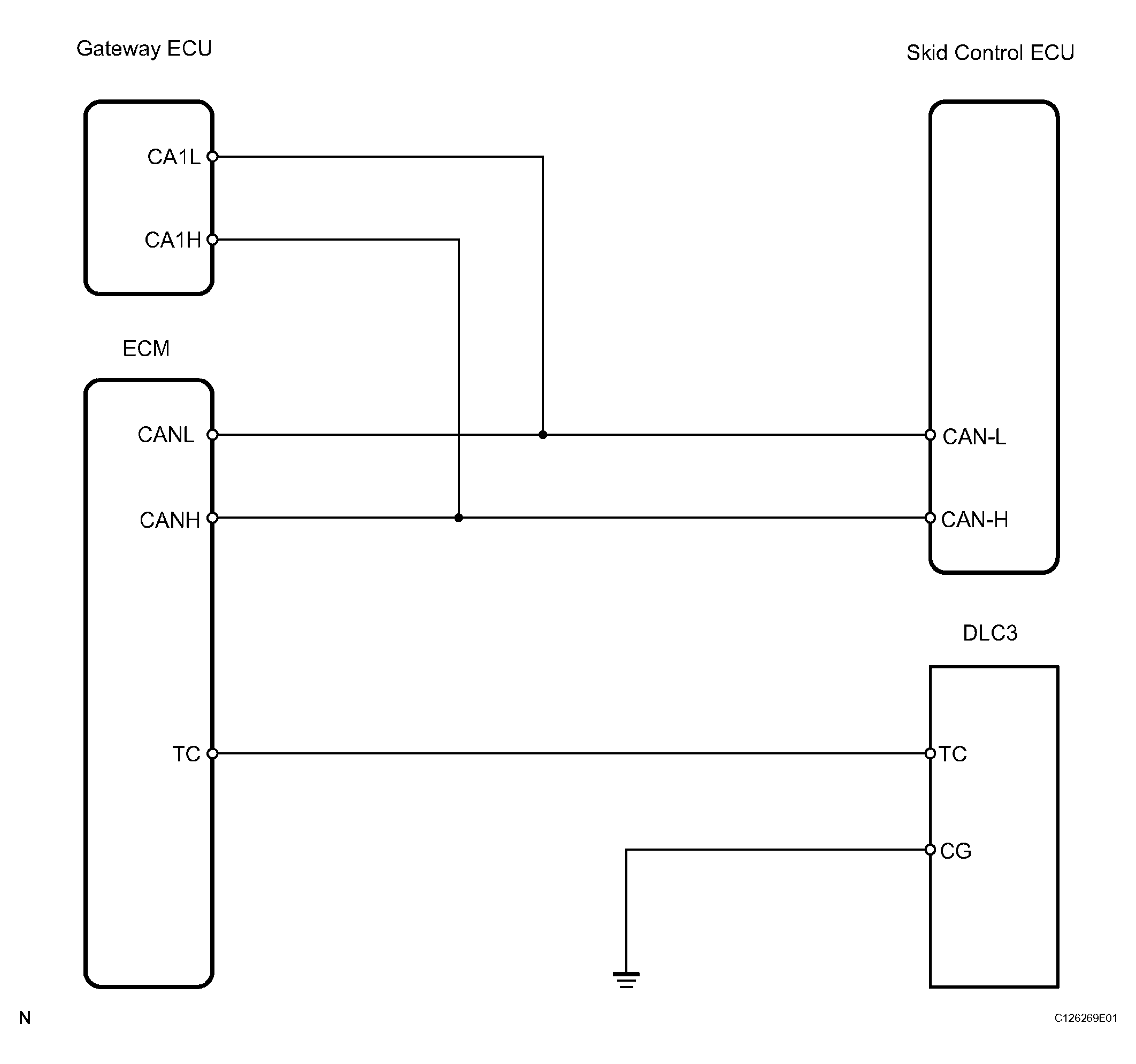

Fig 1: TC And CG Terminal Circuit - Wiring Diagram

G04474692

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
