Brake Warning Light Circuit: Wiring Diagram

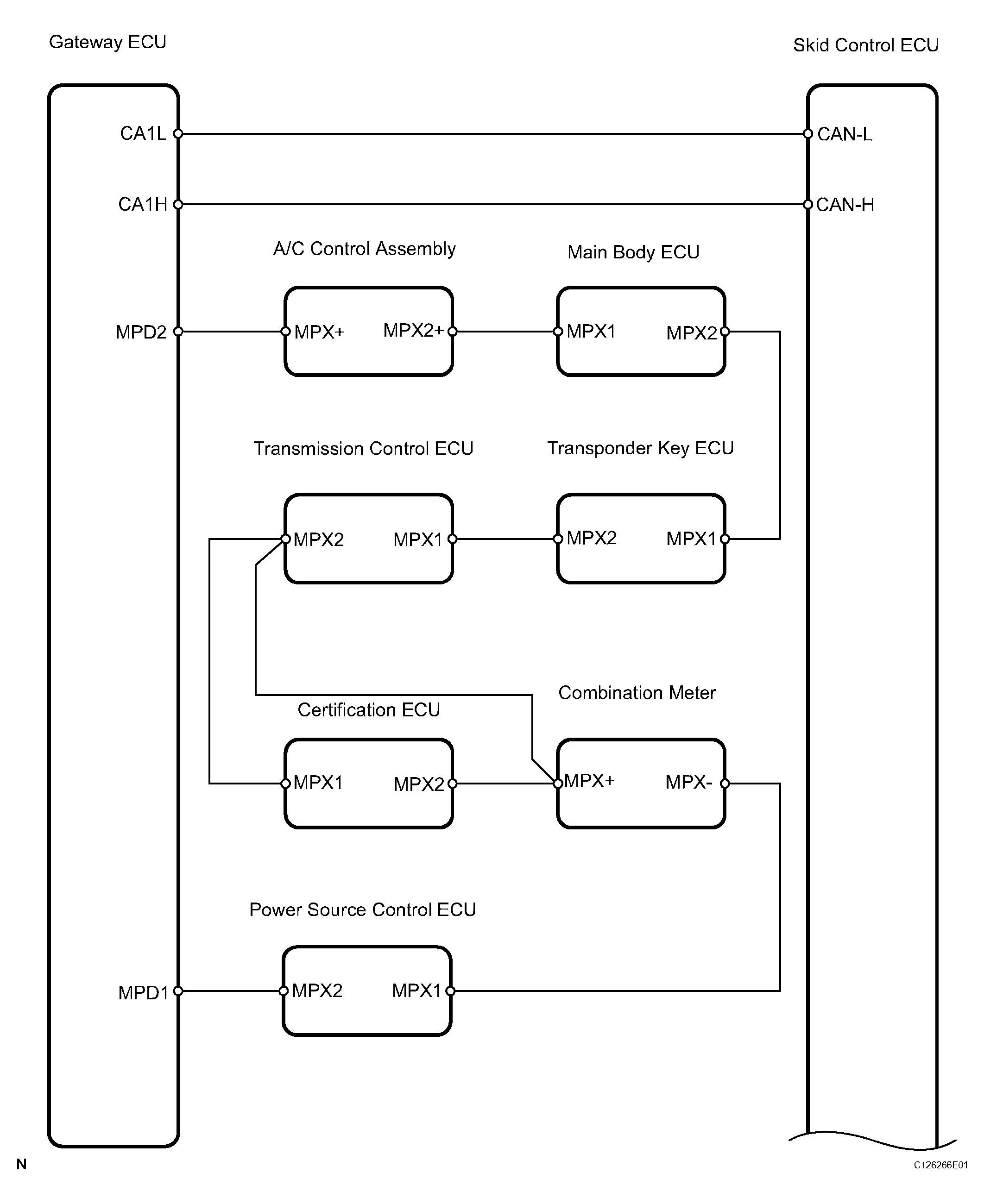

Fig 1: Brake Warning Light Circuit - Wiring Diagram (1 Of 2)
G04474678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

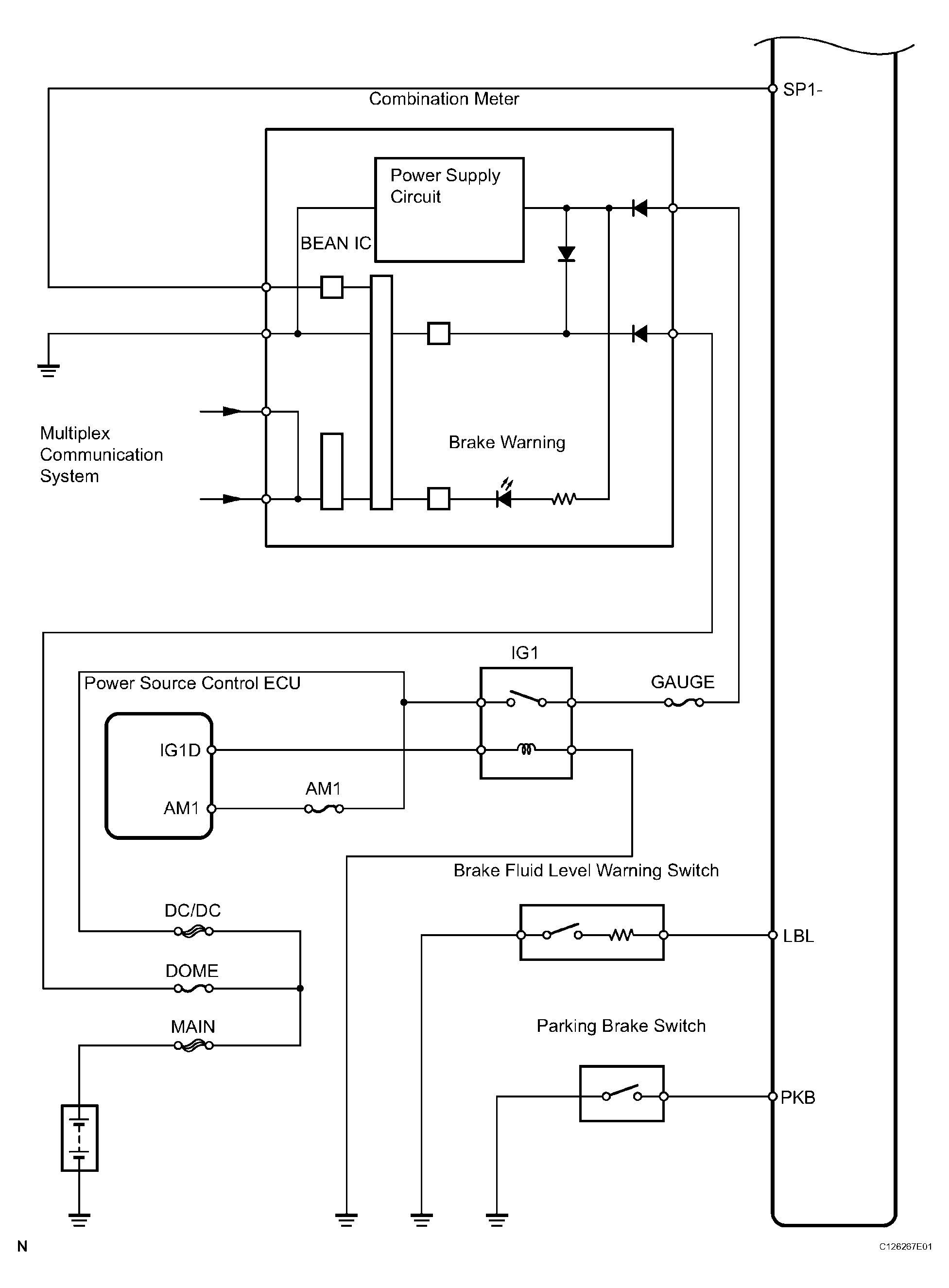

Fig 2: Brake Warning Light Circuit - Wiring Diagram (2 Of 2)
G04474679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
