Stereo Component Amplifier: Installation

INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY
1. Connect the connector.
2. Install the stereo component amplifier with the 3 bolts.

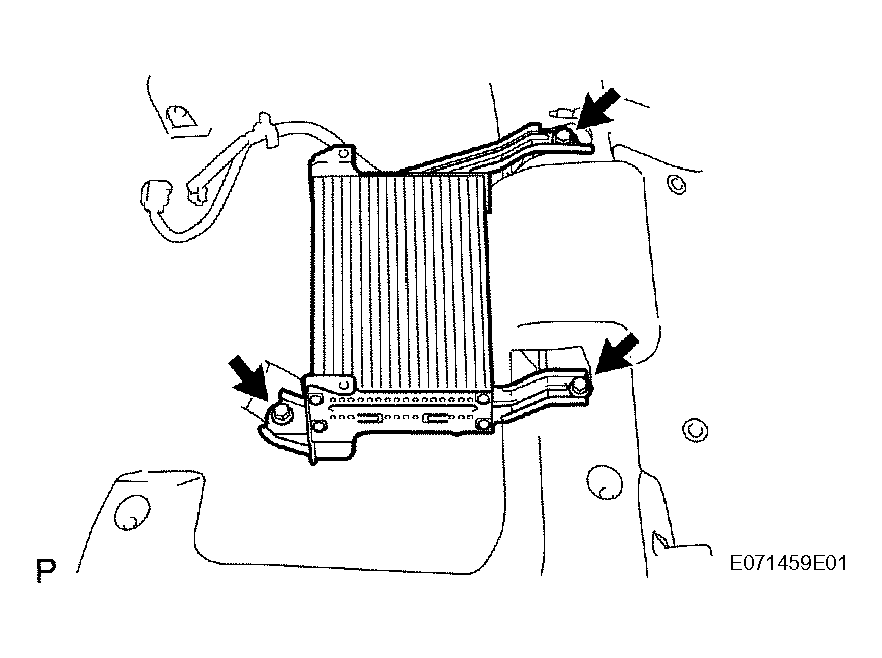

  Fig 1: Installing Stereo Component Amplifier With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AUDIO AMPLIFIER COVER
1. Attach the 2 clips to install the amplifier cover.
INSTALL FRONT SEAT ASSEMBLY RH (see INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Fig 2: Installing Audio Amplifier Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
