Steering Pad Switch: Installation

  1. INSTALL STEERING PAD SWITCH LH
    1. Connect the connector.
    2. Attach the 2 claws to install the steering pad switch.

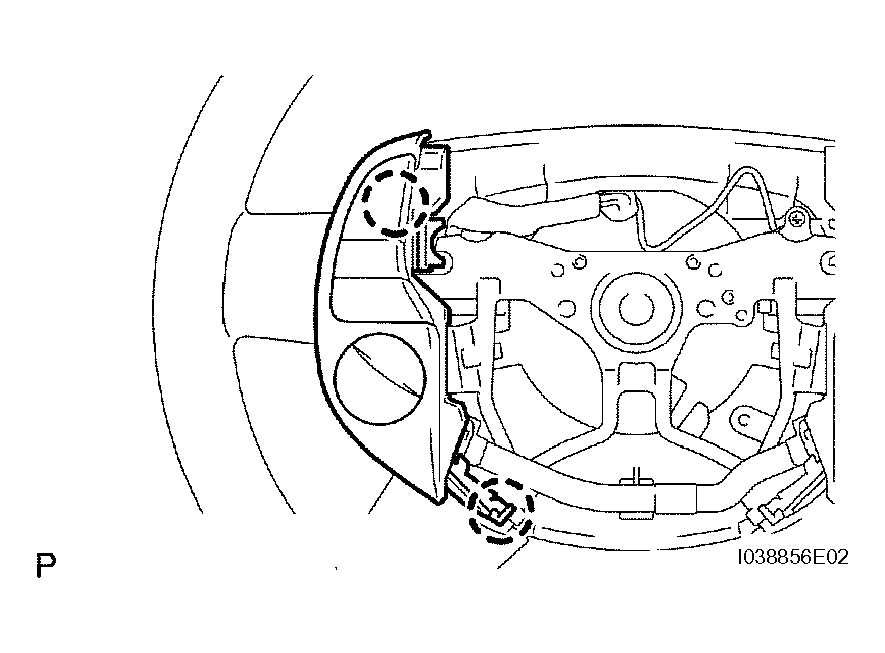

      Fig 1: Installing Steering Pad Switch LH
      G04476463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL STEERING PAD SWITCH RH
    1. Connect the connector.
    2. Attach the 2 claws to install the steering pad switch.
  3. INSTALL STEERING PAD ASSEMBLY (See  INSTALLATION  )
  4. INSTALL NO. 2 STEERING WHEEL COVER LOWER
  5. INSTALL NO. 3 STEERING WHEEL COVER LOWER
  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  7. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  8. INSPECT STEERING PAD ASSEMBLY (See  DISPOSAL  )
  9. CHECK SRS WARNING LIGHT (See  DISPOSAL  )

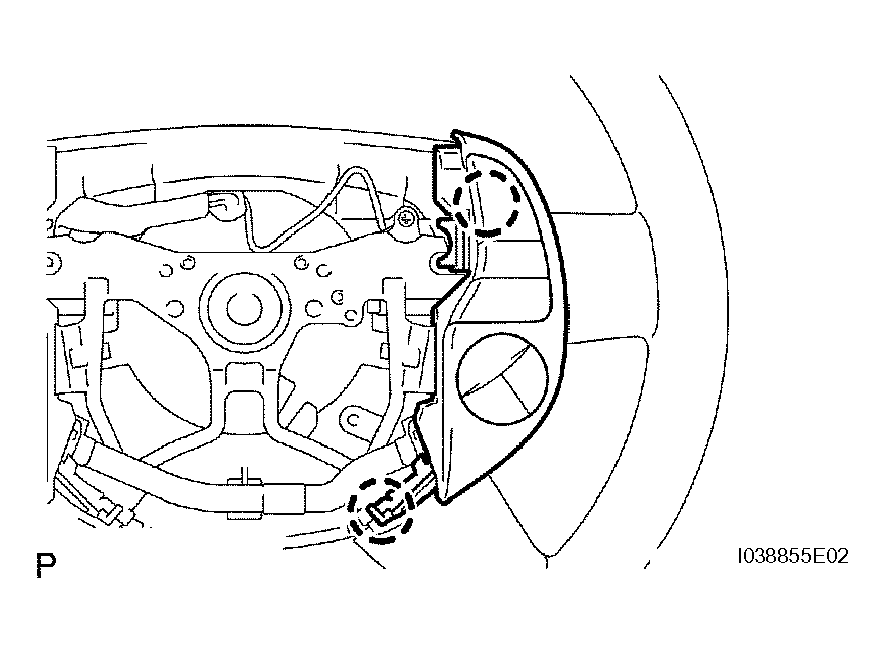

    Fig 2: Installing Steering Pad Switch RH
    G04476464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
