Microphone Amplifier: Installation

INSTALL MICROPHONE AMPLIFIER ASSEMBLY
1. Install the microphone amplifier.
2. Connect the connector.

  Fig 1: Installing Microphone Amplifier
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the 4 claws to install the amplifier cover.

  Fig 2: Installing Amplifier Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the print board with the 3 screws.
INSTALL MAP LIGHT ASSEMBLY (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).

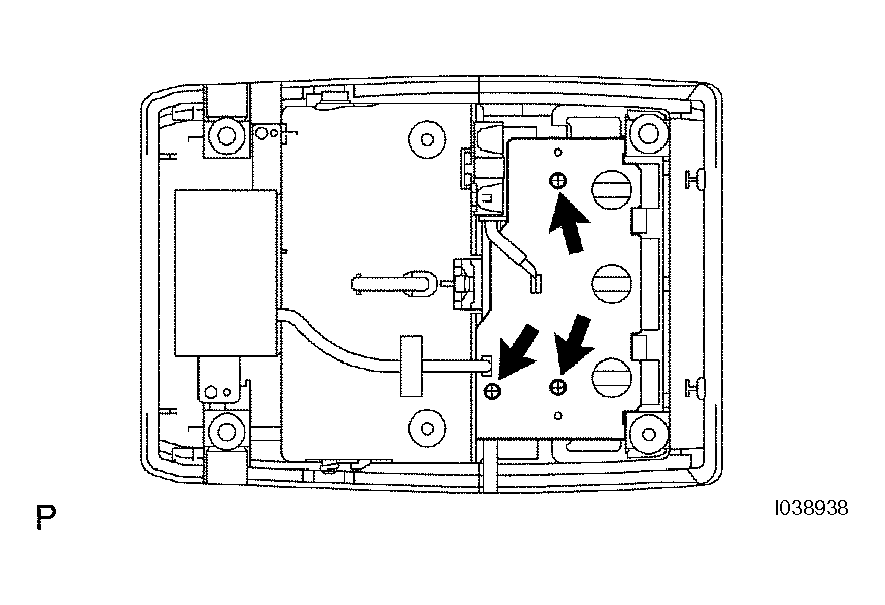

  Fig 3: Installing Print Board With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
