Multiplex Communication System - CAN Bus: Notes

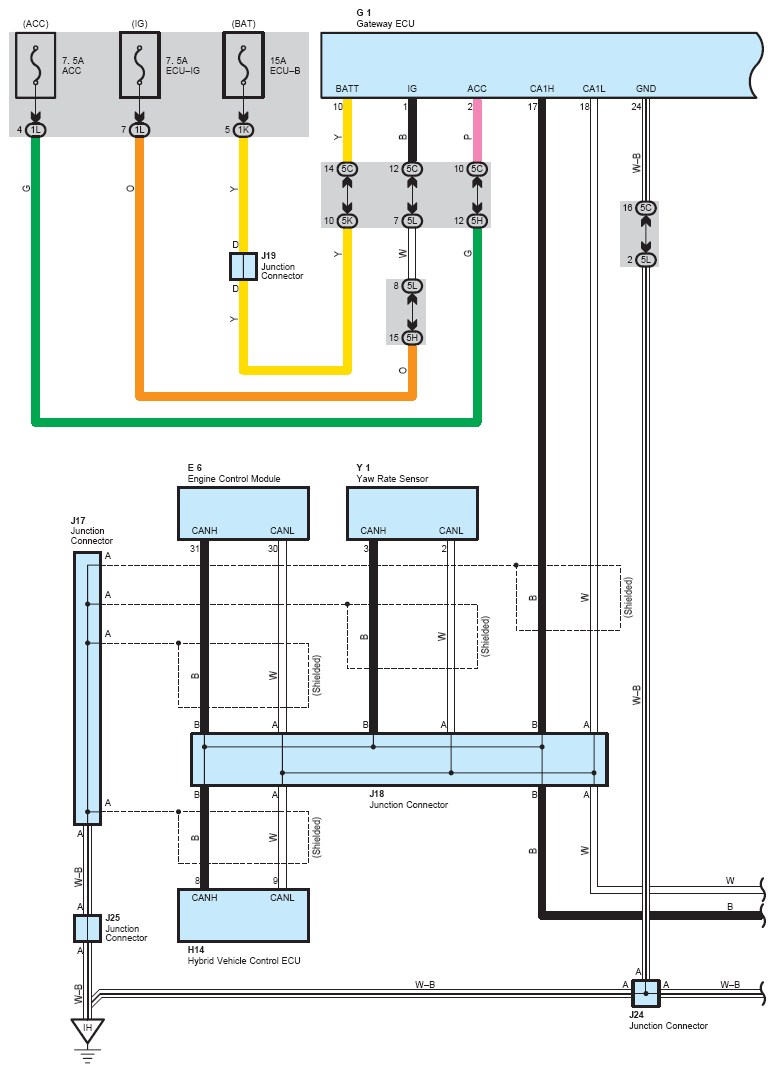

Fig 1: Multiplex Communication (CAN Bus) System Wiring Diagram (1 Of 2)
G08794685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

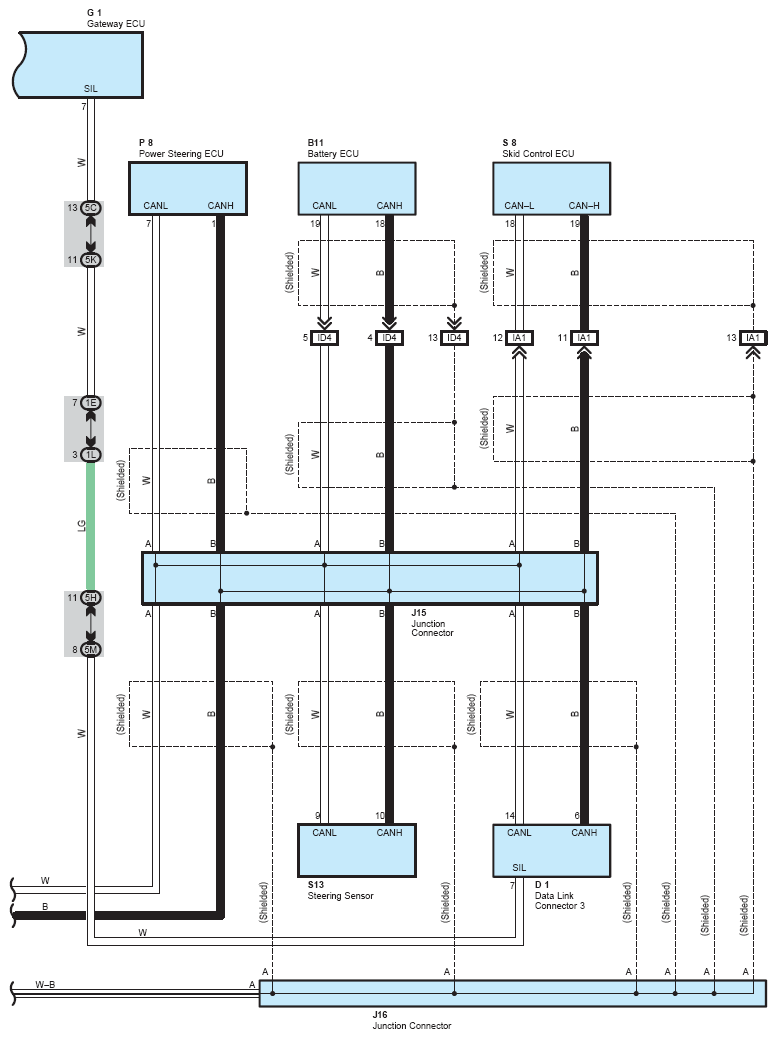

Fig 2: Multiplex Communication (CAN Bus) System Wiring Diagram (2 Of 2)
G08794686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
