DTC P0110 Intake Air Temperature Circuit; DTC P0112 Intake Air Temperature Circuit Low Input; DTC P0113 Intake Air Temperature Circuit High Input: Wiring Diagram

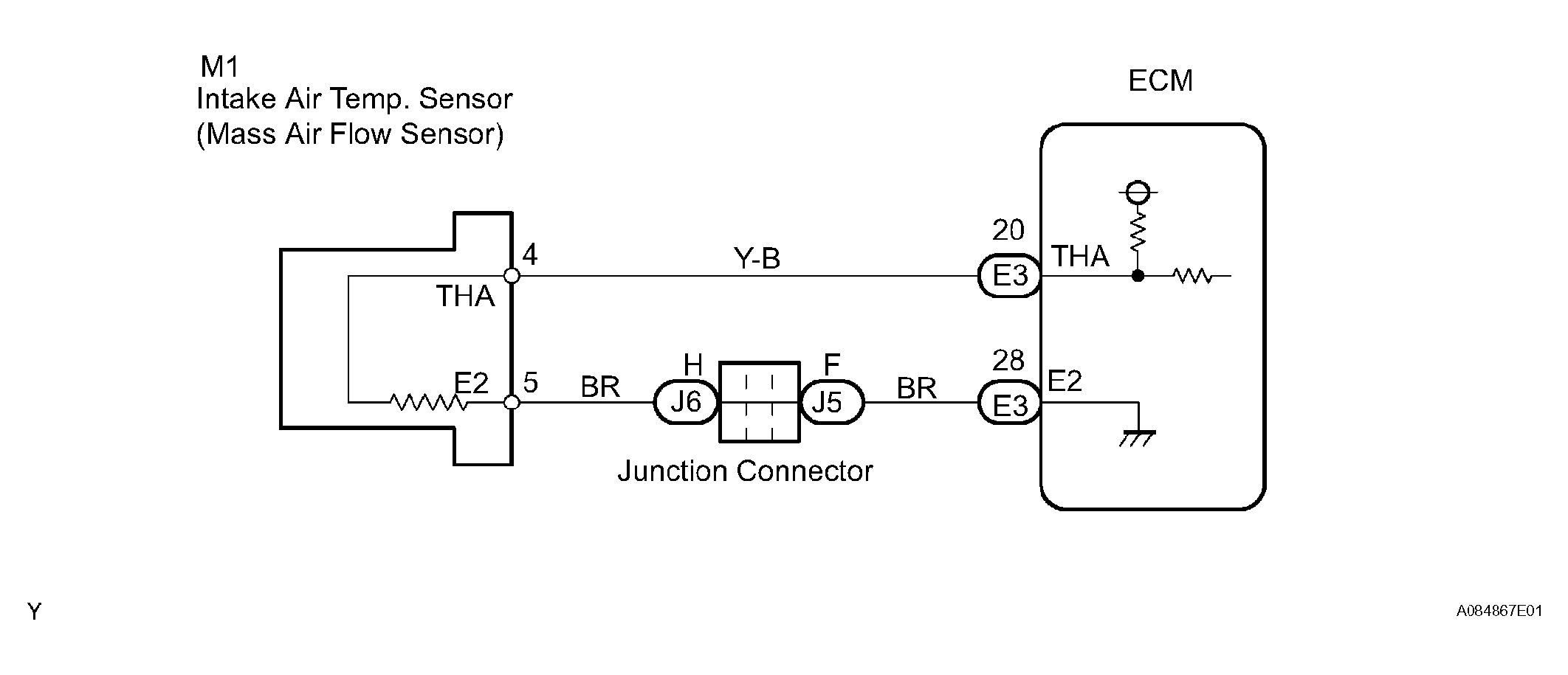

Fig 1: Intake Air Temperature Sensor - Wiring Diagram
G04460577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
