Charging System (2ZZ-GE): Generator: Removal

DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE CYLINDER HEAD COVER NO. 2
REMOVE AIR SWITCHING VALVE ASSEMBLY
REMOVE ENGINE UNDER COVER RH
REMOVE FAN AND GENERATOR V BELT
REMOVE AIR PUMP OUTLET PIPE

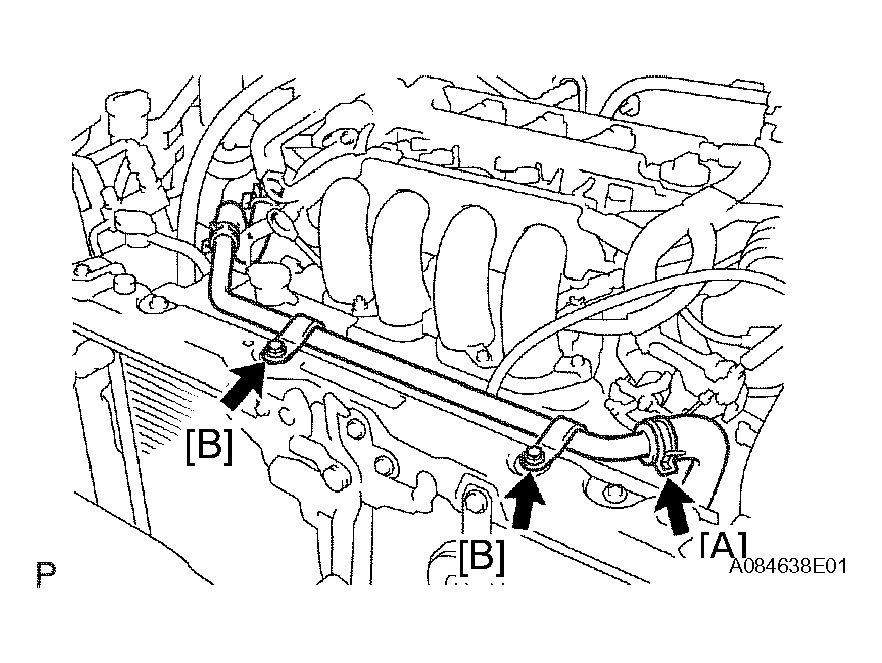

1. Disconnect the air hose No. 5 [A].
2. Remove the 2 bolts [B], then remove the air pump outlet pipe.

  Fig 1: Removing Air Pump Outlet Pipe
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR ASSEMBLY

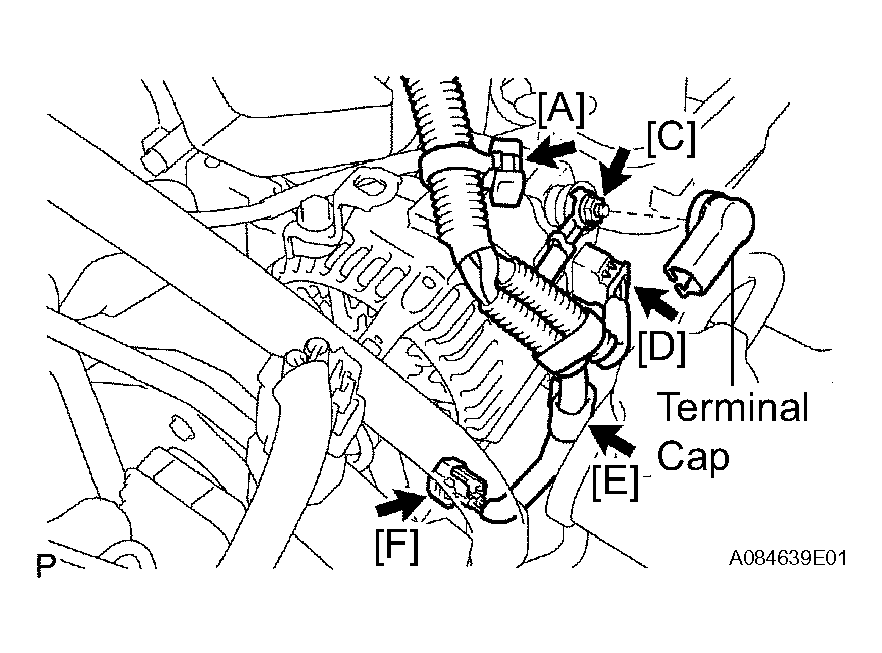

1. Remove the wire harness clamp [A].
2. Remove the terminal cap No. 2.
3. Remove the nut [C], then remove the generator wire.
4. Disconnect the generator connector [D].
5. Remove the wire harness clamp [E].
6. Disconnect the A/C connector [F].

  Fig 2: Removing Generator Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

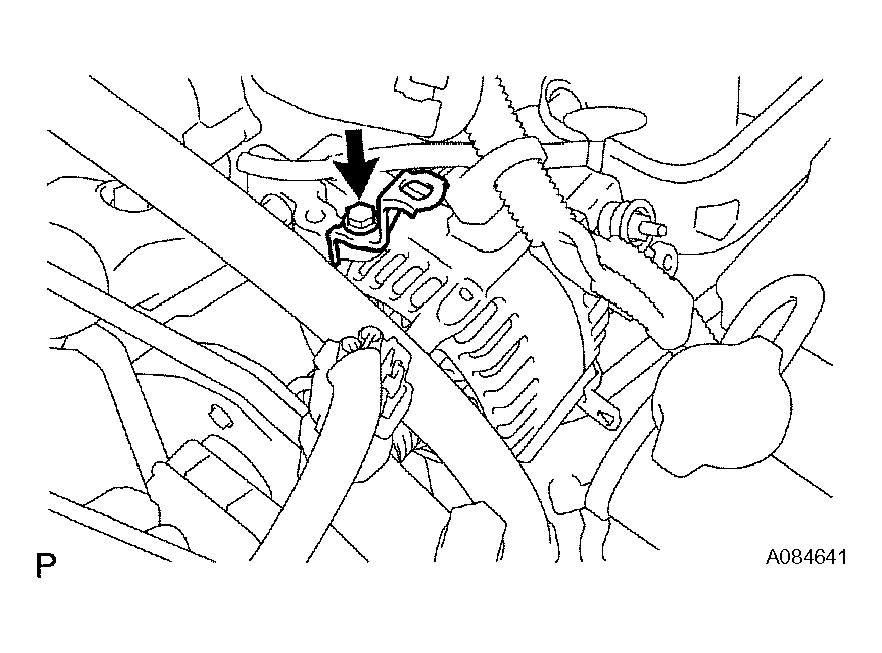

7. Remove the bolt, then remove the wire harness clamp bracket.

  Fig 3: Removing Wire Harness Clamp Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

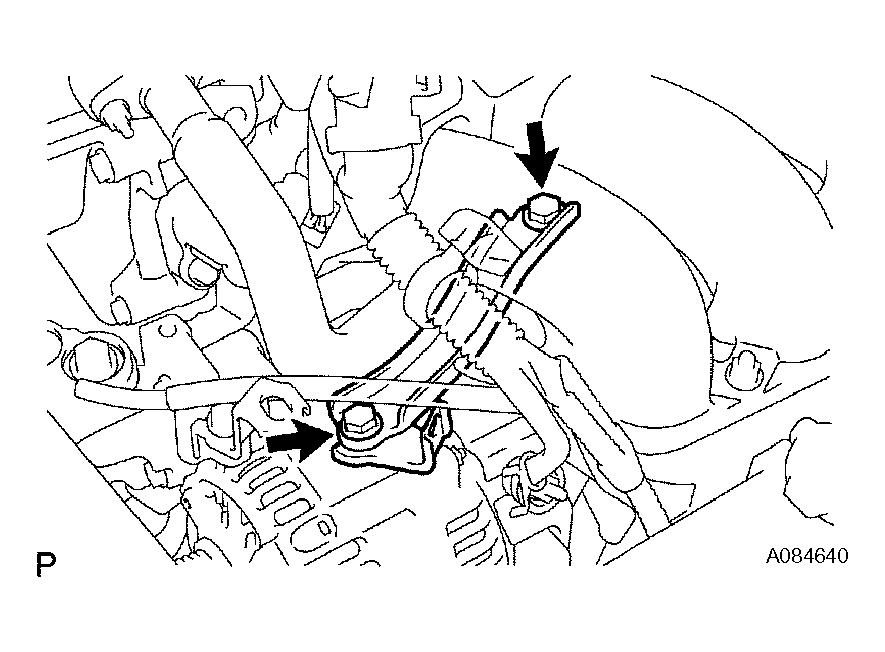

8. Remove the 2 bolts, then remove the generator bracket No. 1.

  Fig 4: Removing Generator Bracket No. 1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

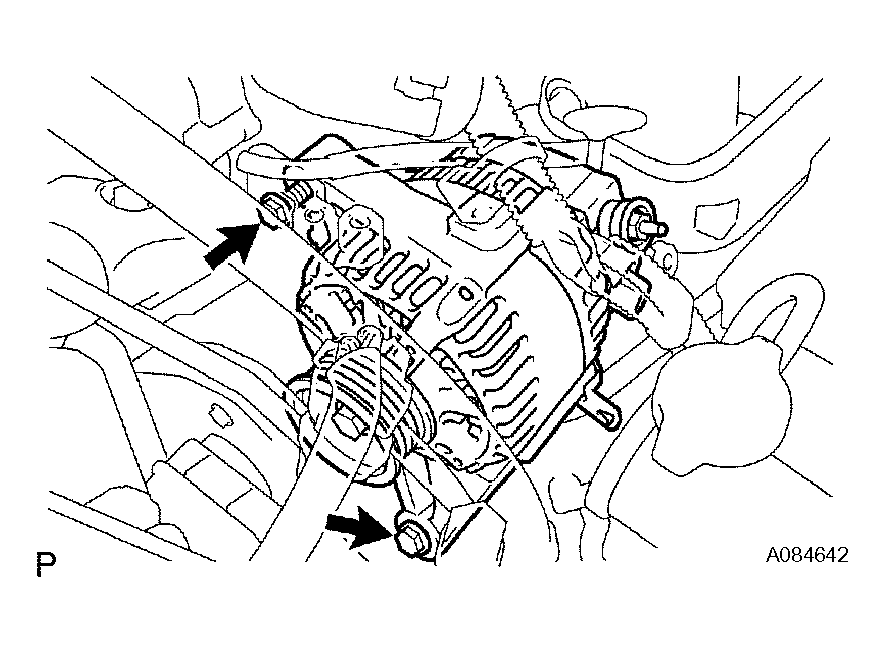

9. Remove the 2 bolts, then remove the generator.

  Fig 5: Removing Generator Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
