Pressure Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL PRESSURE SENSOR (TURBO PRESSURE SENSOR)

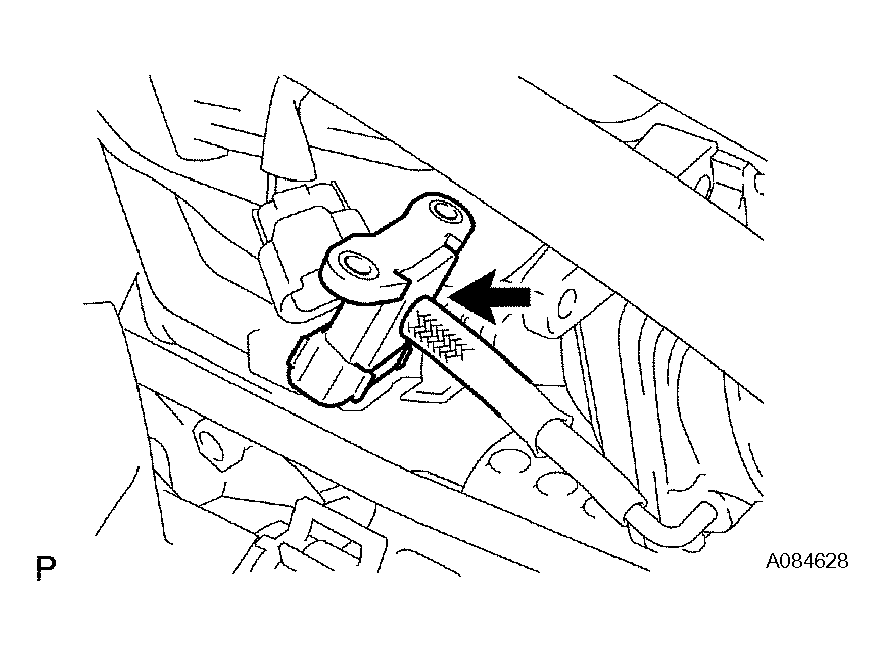

1. Connect the vacuum hose to the pressure sensor (turbo pressure sensor).

  Fig 1: Connecting Vacuum Hose To Pressure Sensor (Turbo Pressure Sensor)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

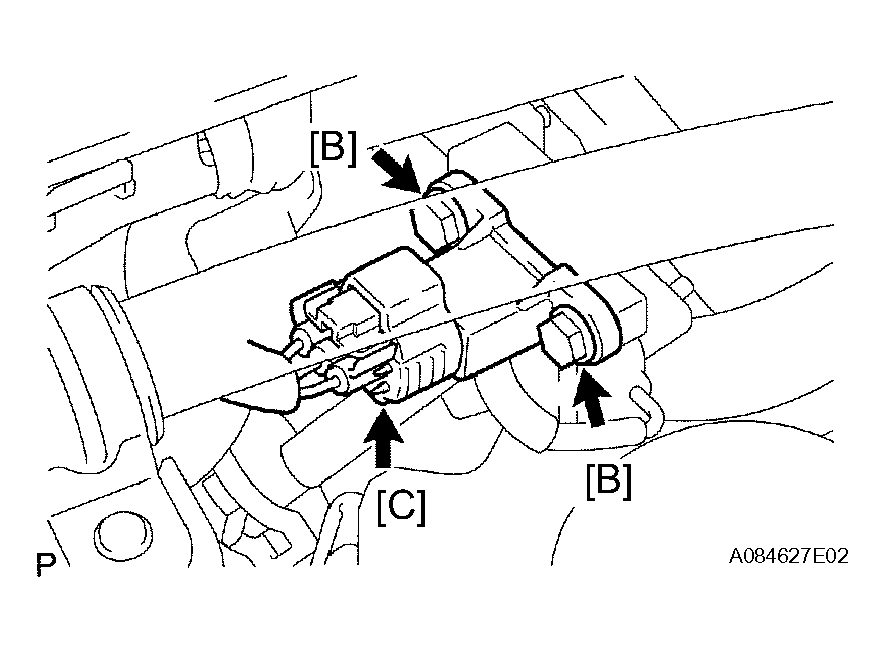

2. Install the pressure sensor (turbo pressure sensor) with the 2 bolts [B].
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
3. Connect the pressure sensor (turbo pressure sensor) connector [C].

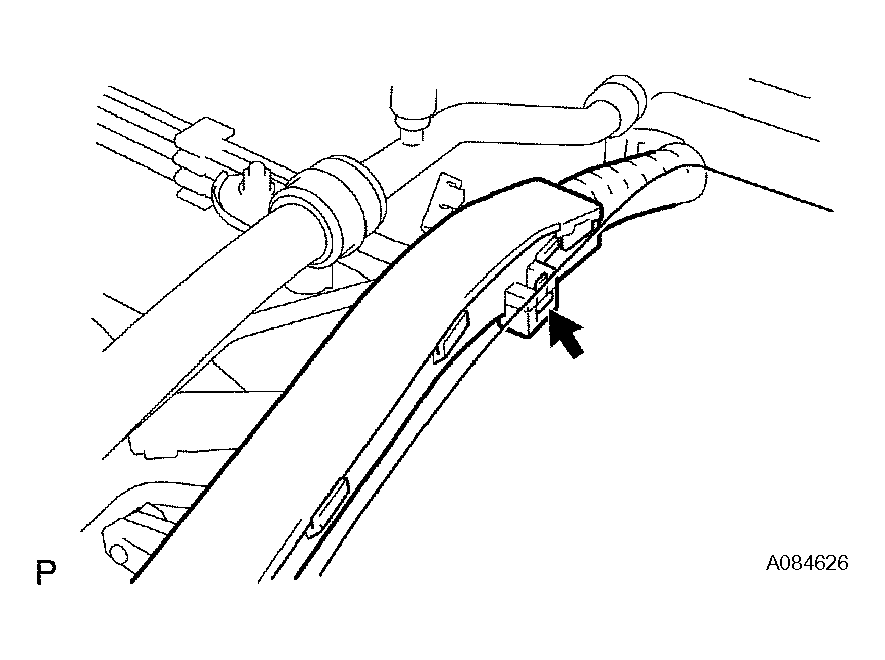

4. Install the wire harness protector.
CONNECT BATTERY NEGATIVE TERMINAL
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
