Oil Pump: Reassembly

INSTALL OIL PUMP RELIEF VALVE
1. Coat the oil pump relief valve with engine oil, then insert the oil pump relief valve and oil pump relief spring into the valve hole.
2. Install the oil pump relief valve plug.
  Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

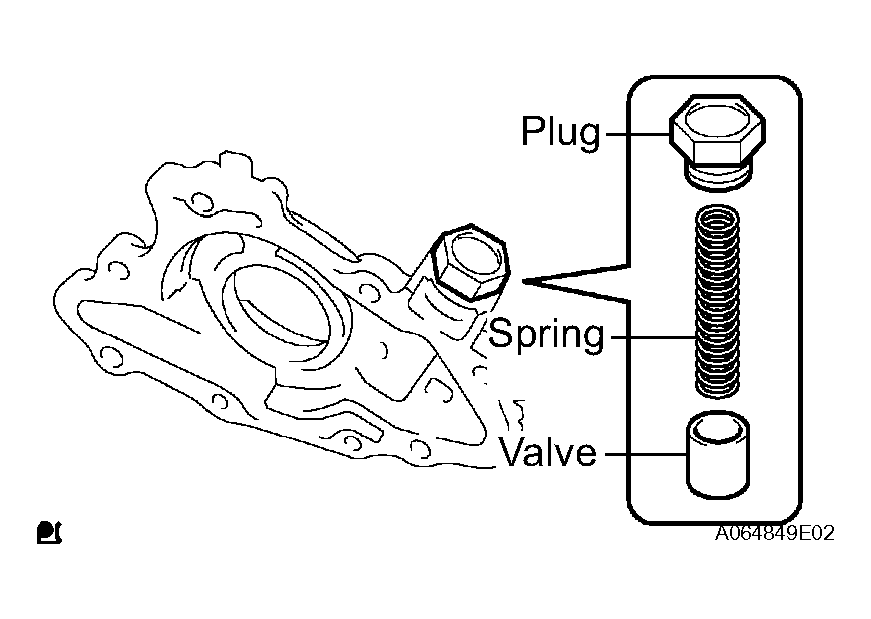

  Fig 1: Installing Oil Pump Relief Valve Plug
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OIL PUMP DRIVE AND DRIVEN ROTORS
1. Coat the oil pump drive and driven rotors with engine oil, and place them into the oil pump with marks facing the oil pump cover side.

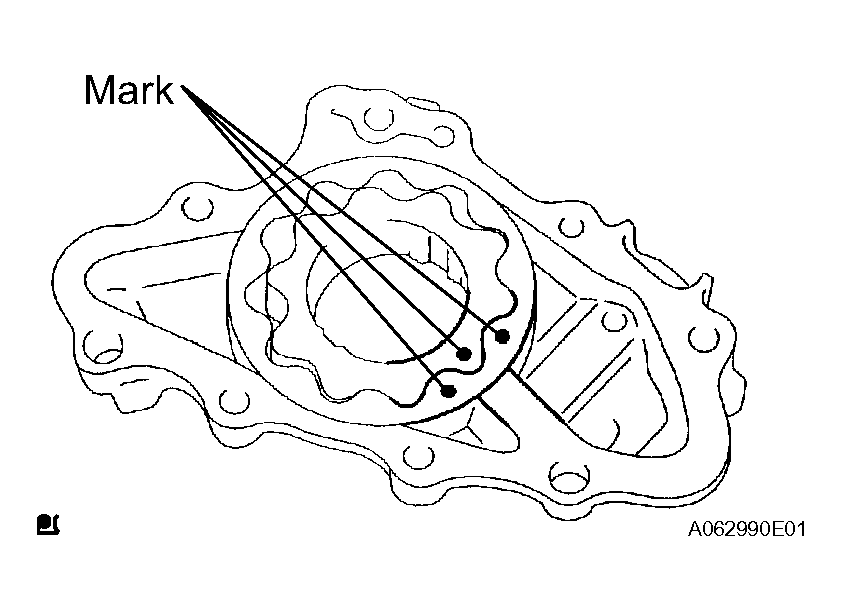

  Fig 2: Installing Oil Pump Drive And Driven Rotors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the oil pump cover with the 3 screws.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

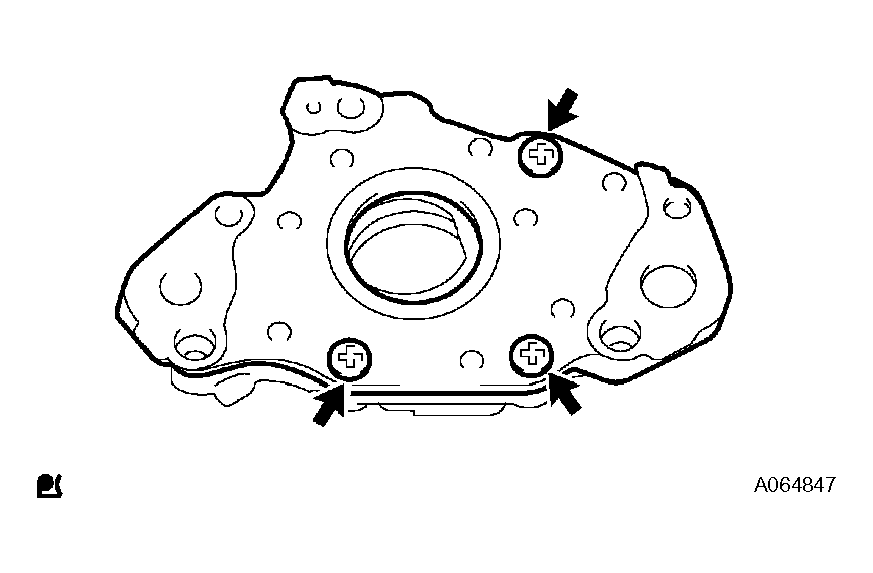

  Fig 3: Installing Oil Pump Cover With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
