Oil Pump: Installation

  1. INSTALL OIL PUMP ASSEMBLY
    1. Install a new gasket onto the cylinder block.

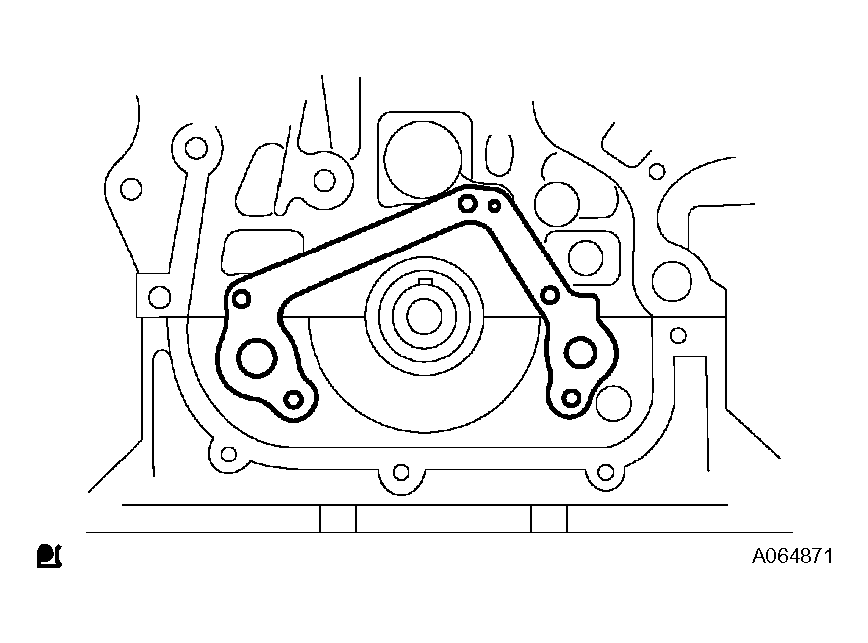

      Fig 1: Installing Gasket Onto Cylinder Block
      G04462352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Align the spline teeth of the oil pump drive rotor with the large teeth of the crankshaft, then slide on the oil pump.
    3. Install the oil pump with the 5 bolts.

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

  2. INSTALL CHAIN VIBRATION DAMPER NO.1

    Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

  3. INSTALL CHAIN SUB-ASSEMBLY (See  INSTALLATION  )
  4. INSTALL CHAIN TENSIONER SLIPPER (See  INSTALLATION  )

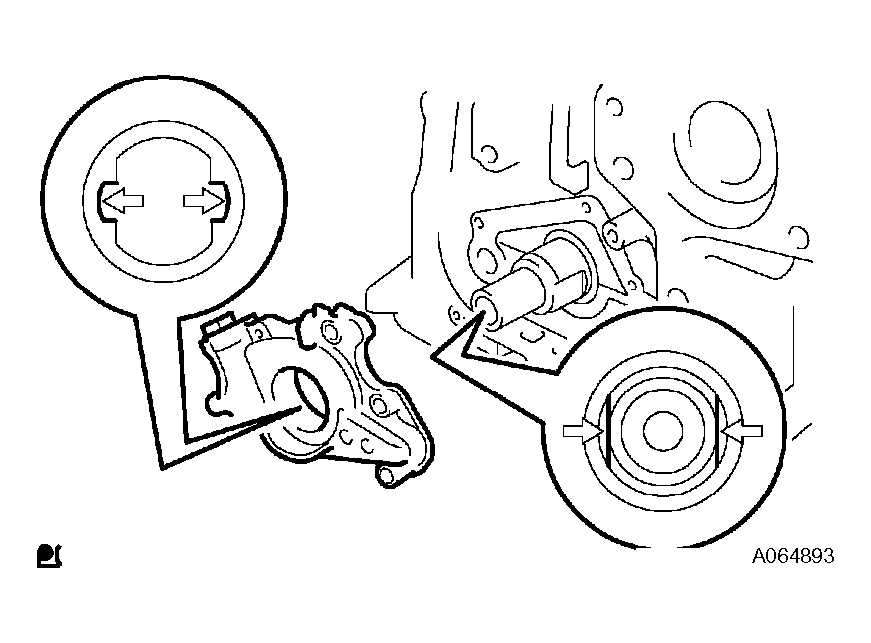

    Fig 2: Aligning Spline Teeth Of Oil Pump Drive Rotor
    G04462353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL CRANKSHAFT POSITION SENSOR PLATE NO.1 (See  INSTALLATION  )
  6. INSTALL TIMING CHAIN OR BELT COVER OIL SEAL (See  INSTALLATION  )
  7. INSTALL TIMING CHAIN OR BELT COVER SUBASSEMBLY (See  INSTALLATION  )
  8. INSTALL CHAIN TENSIONER ASSEMBLY NO.1 (See  INSTALLATION  )
  9. INSTALL CRANKSHAFT PULLEY (See  INSTALLATION  )
  10. INSTALL CRANKSHAFT POSITION SENSOR (See  INSTALLATION  )
  11. INSTALL WATER PUMP ASSEMBLY (See  INSTALLATION  )
  12. INSTALL ENGINE MOUNTING BRACKET RH (See  INSTALLATION  )
  13. INSTALL V-RIBBED BELT TENSIONER ASSEMBLY (See  INSTALLATION  )
  14. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY (See  INSTALLATION  )
  15. INSTALL IGNITION COIL ASSEMBLY (See  INSTALLATION  )
  16. INSTALL ENGINE MOUNTING INSULATOR RH (See  INSTALLATION  )
  17. INSTALL GENERATOR ASSEMBLY (See  INSTALLATION  )
  18. INSTALL VANE PUMP ASSEMBLY (See  INSTALLATION  )
  19. INSTALL FAN AND GENERATOR V BELT
  20. ADD ENGINE COOLANT (See  COOLANT
  21. ADD ENGINE OIL (See  INSTALLATION   )
  22. CONNECT BATTERY NEGATIVE TERMINAL

    Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  23. CHECK ENGINE COOLANT LEAKAGE (See  ON-VEHICLE INSPECTION  )
  24. CHECK ENGINE OIL LEAKAGE
  25. INSTALL CYLINDER HEAD COVER NO.2 (See step 22 under  INSTALLATION  )
  26. INSTALL ENGINE UNDER COVER RH
  27. INSTALL FRONT WHEEL RH

    Torque: 100 N*m (1,050 kgf*cm, 76 ft.*lbf)
