Parts Location

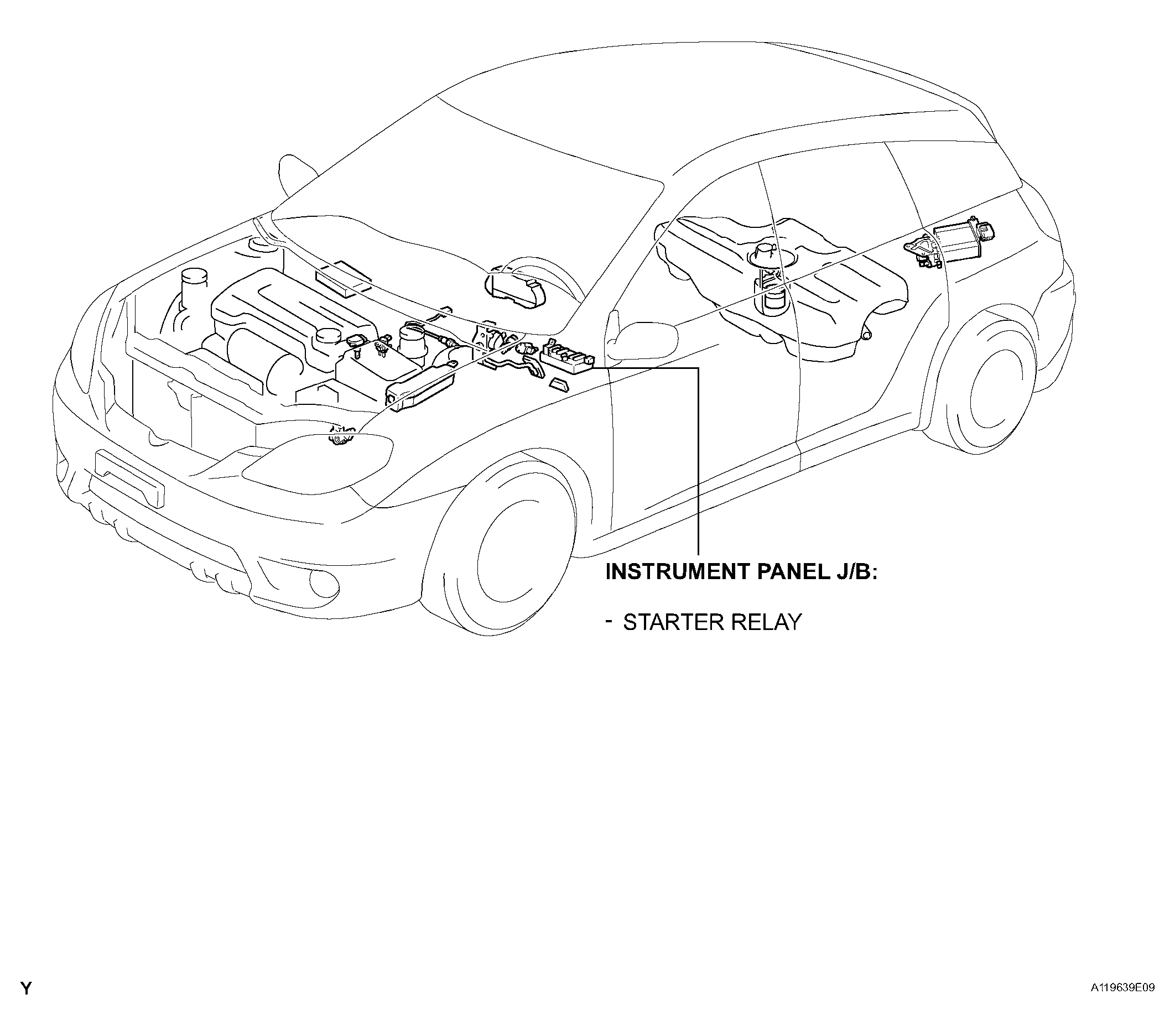

Fig 1: Identifying Starting System Parts Location (1ZZ-FE) (1 Of 3)
G04462390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

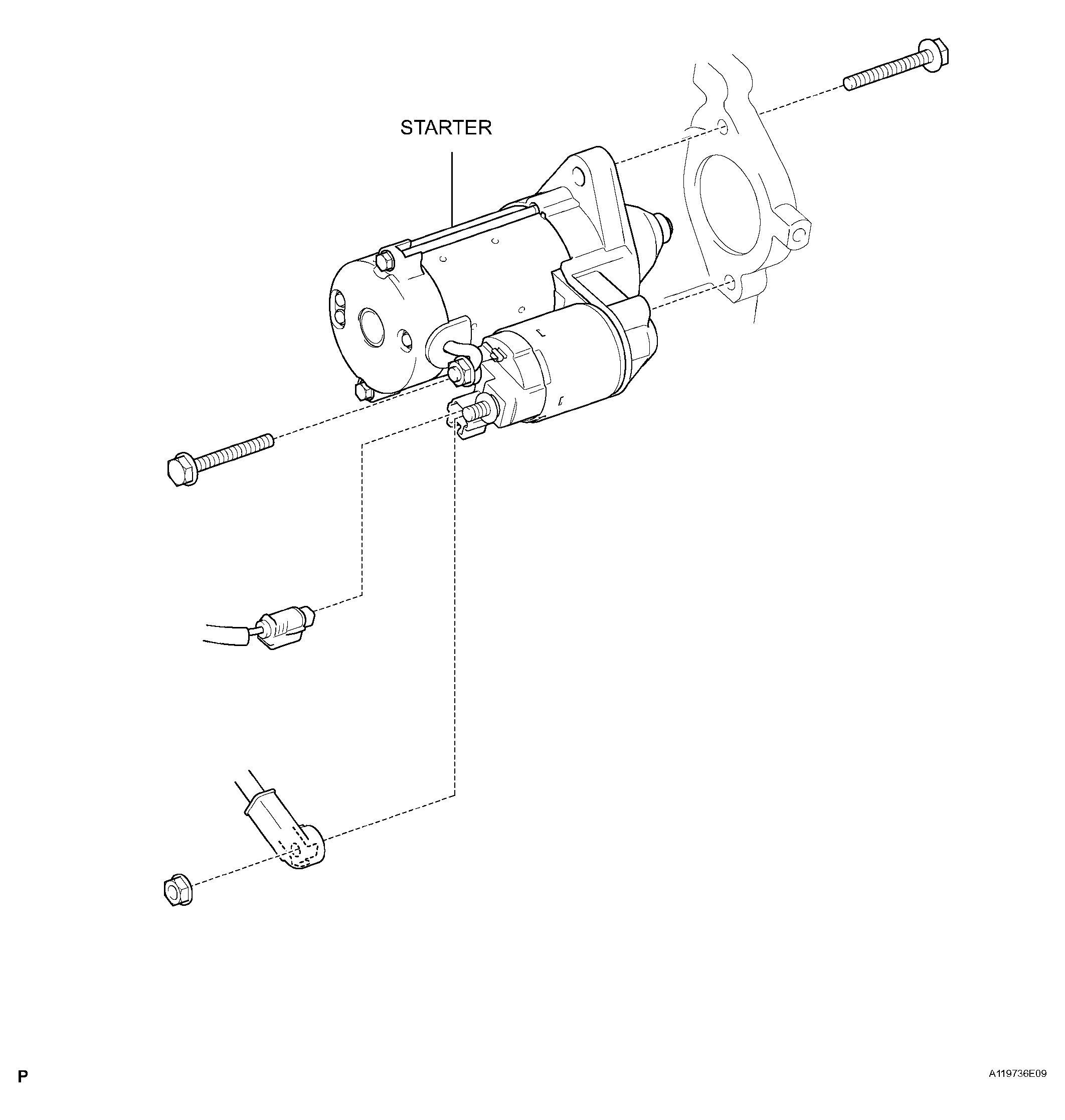

Fig 2: Identifying Starting System Parts Location (1ZZ-FE) (2 Of 3)
G04462391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

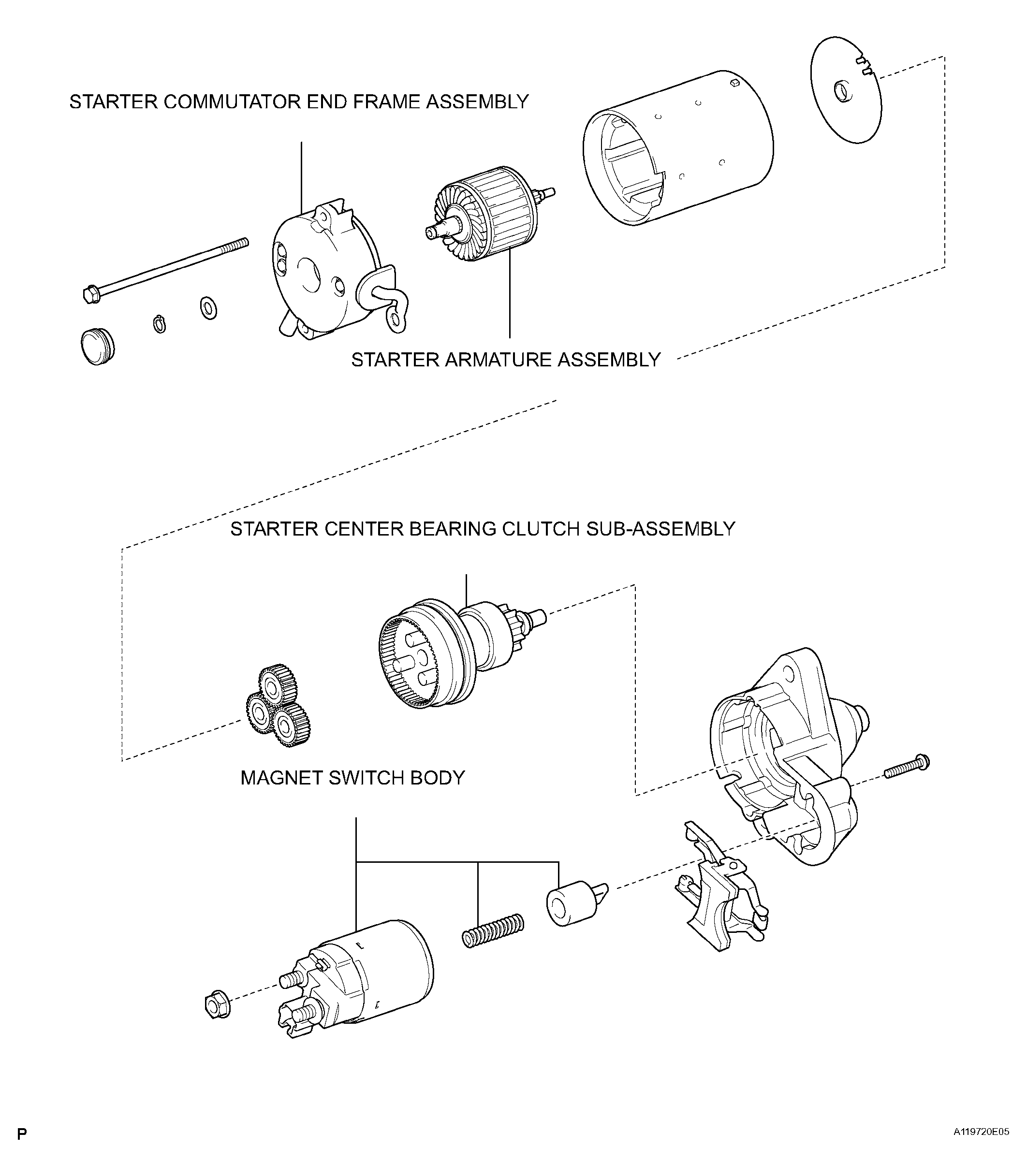

Fig 3: Identifying Starting System Parts Location (1ZZ-FE) (3 Of 3)
G04462392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
