ECU Power Source Circuit: Wiring Diagram

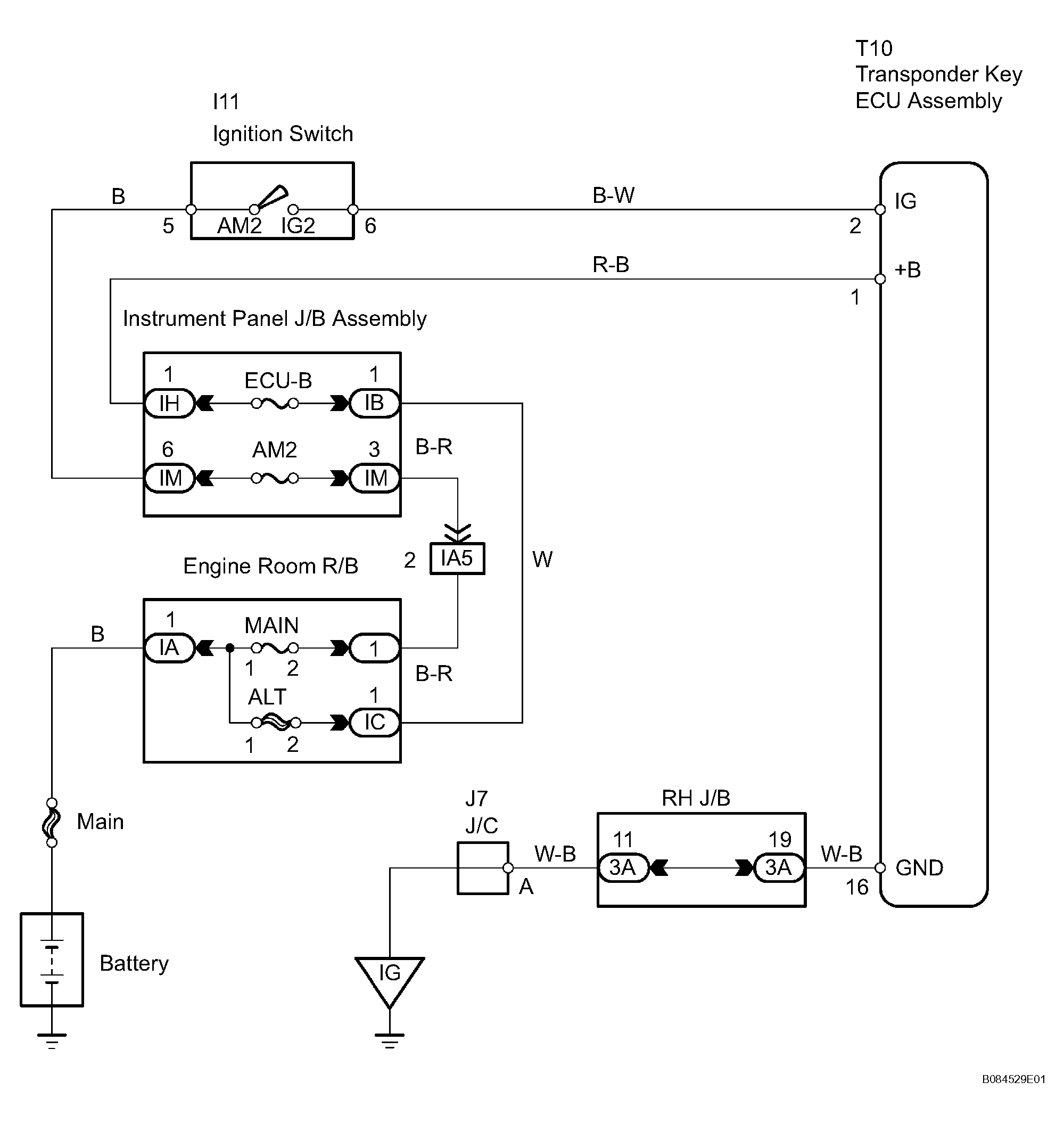

Fig 1: ECU Power Source Circuit Wiring Diagram

G04466320

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
